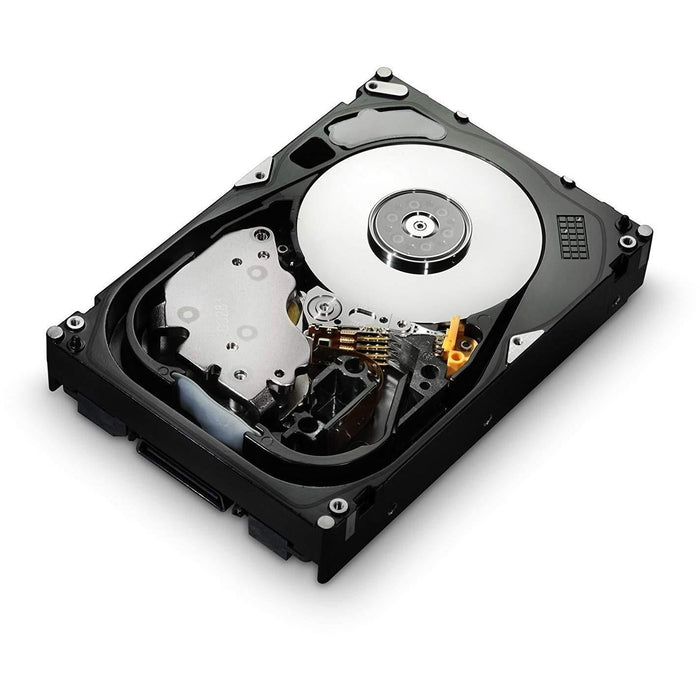

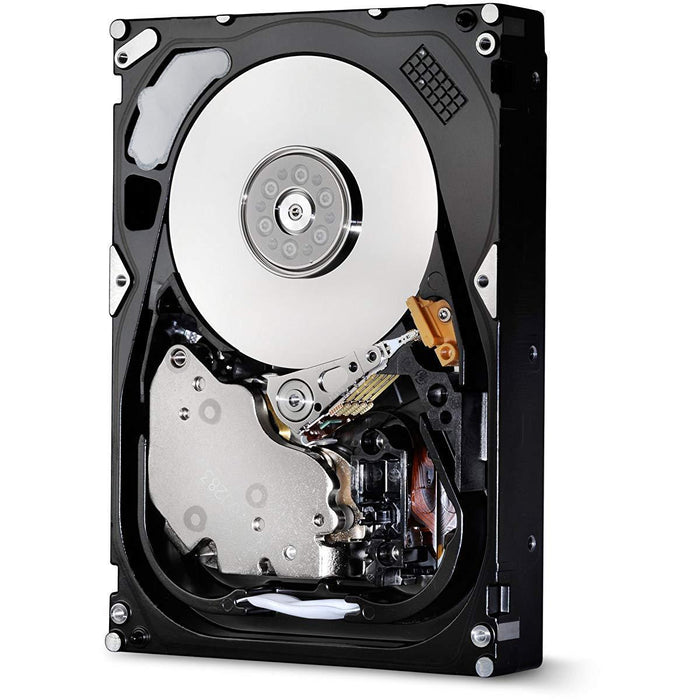

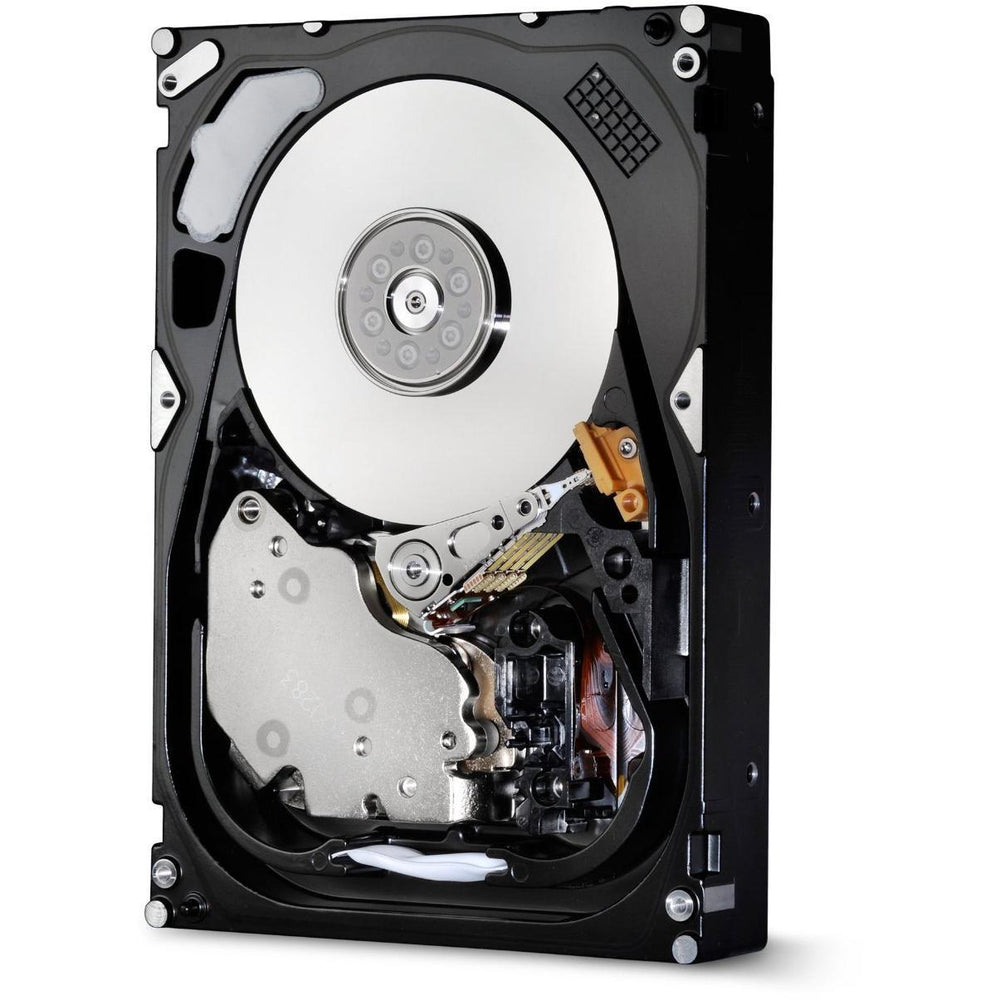

HGST Ultrastar 3.5-Inch 600GB 15000RPM SAS 64 MB Cache Enterprise Hard Drive with Mission Critical Performance (0B23663)

The Ultrastar 15K600 combines ultimate performance with high capacity in a single drive, storing up to 600GB of data while spinning at 15,000 RPM. The 64MB cache buffer is the largest in the industry in its class. The 6Gb/s Serial Attached SCSI (SAS) and 4Gb/s Fibre Channel Arbitrated Loop (FCAL) interfaces support the reliability required in the most demanding enterprise computing environments like on-line transaction processing, intensive data analysis, multi-user applications and data warehousing.

Supports the reliability required in the most demanding enterprise computing environments. View larger

All-In-One Storage Solution

The latest addition to the HGST portfolio combines ultimate performance with high capacity in the same drive. The Ultrastar 15K600 can store up to 600GB of data while spinning at 15,000 RPM. That amounts to a capacity growth of 33% over its predecessor to keep pace with digital data growth and improve space efficiency in today's data centers. At the same time, sequential performance increased by 23% compared to prior generation to keep data moving faster. The 64MB cache buffer is the largest in the industry in its class and the 15K600 is designed for HGST reliability. The 6Gb/s Serial Attached SCSI (SAS) and 4Gb/s Fibre Channel Arbitrated Loop (FCAL) interfaces support the reliability required in the most demanding enterprise computing environments like on-line transaction processing, intensive data analysis, multi-user applications and data warehousing.

Compared to its predecessor, power usage is reduced by up to 31% to help reduce the cooling requirements in data centers. In addition, Advanced Power Management feature enables multiple idle modes in order to optimize power usage and save even more on energy costs. The 15K600 also saves money because the larger capacity enables higher data storage density in the current footprint without further expansion of the data center. These features qualify the 15K600 for the EcoTrac classification.

Compromise Nothing

The Ultrastar 15K600 self-encrypting models conform to the Trusted Computing Group's Enterprise A Security Subsystem Class encryption specification. Now, customers can reduce costs associated with drive retirement and extend drive life by enabling repurposing of drives.

HGST Quality and Service

HGST's Ultrastar 15K600 extends the company's long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data. HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a breadth of hard disk drive solutions to satisfy all of today's demanding computing needs.

Technical Specifications

• Model Number: HUS156060VLS600
• Capacity: 600GB
• Interface: SAS 6GB/s / FCAL 4GB/s
• Latency Average (ms): 2.0
• RPM: 15000
• Cache: 64MB
• Interface transfer rate (MB/s, max): 600 / 400
• Environmental (operating) Ambient Temperature: 5 to 55 degrees Celsius
• Environmental (non-operating) Ambient Temperature: -40 to 70 degrees Celsisus
• Power Requirement: +5 VDC (+/-5%) +12 VDC (+/-10%)
• Idle Power Consumption (W): 3.1
• Size (LxWxH): 101.6 x 146.2 x 25.8 mm
• Weight (g, max): 750
