Dell A10 1U Sliding Rail Kit for PowerEdge (0NM2TK (L) / 0KK490 (R) ) 00PVD0 0PVD0

R$ 1.068,60
R$ 989,85

Dell A10 1U Sliding Rail Kit for PowerEdge (0NM2TK / 0KK490) 00PVD0 0PVD0


Overview

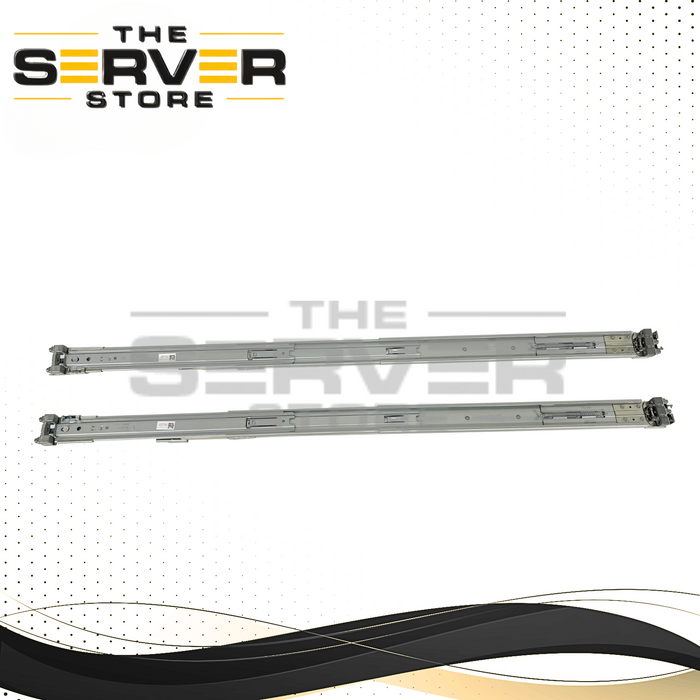

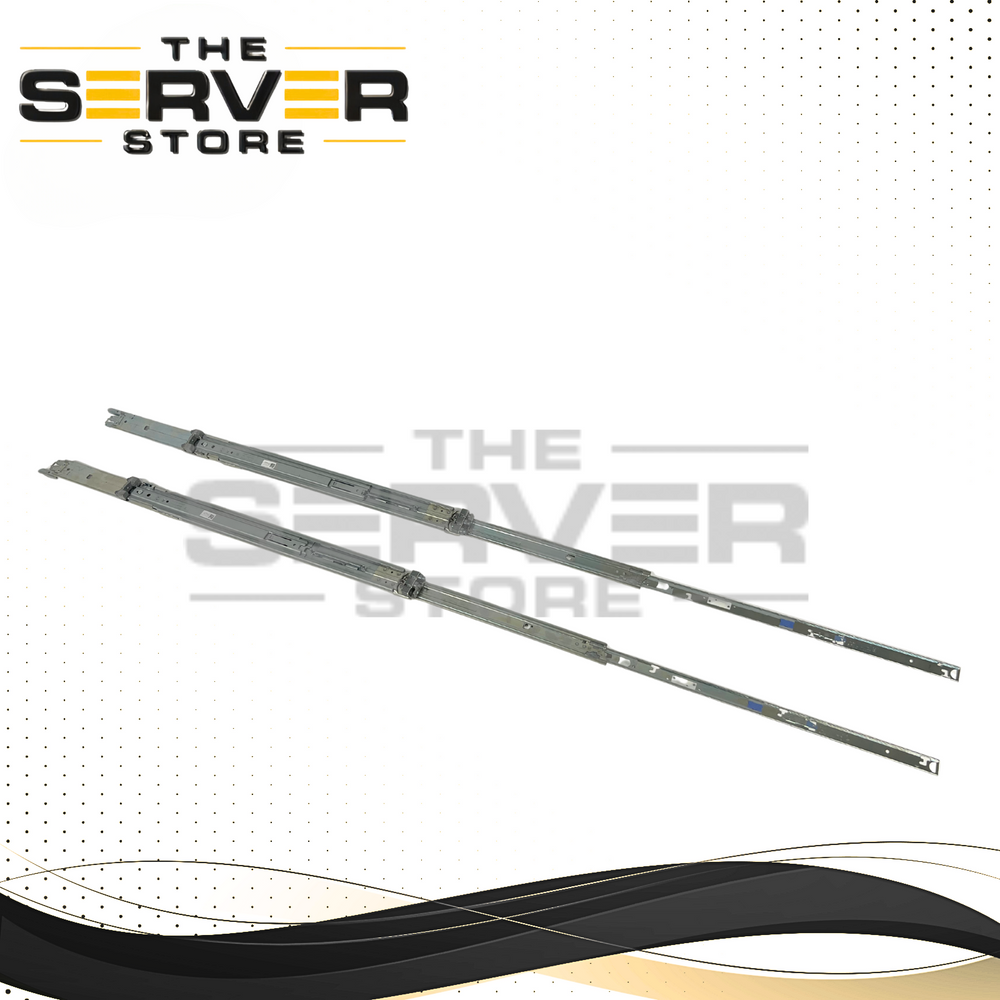

The Dell Technologies A10 ReadyRails Sliding Rail Kit (00PVD0 / 0PVD0) is a 1U rack-mount solution built for Dell PowerEdge servers across 12th through 14th generations. This sliding rail system allows the server to be fully extended from the rack, enabling convenient servicing and maintenance without removing the unit.


Key Technical Specifications

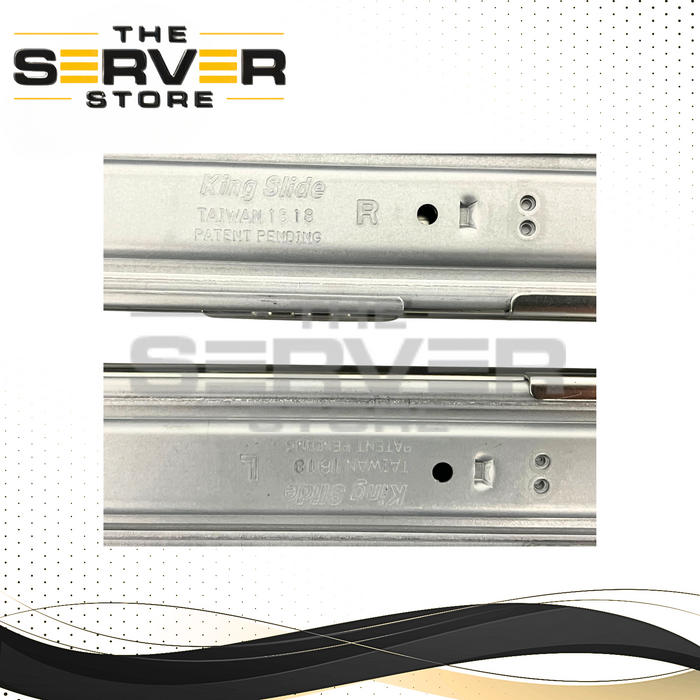

Part Numbers: 00PVD0, 0PVD0, NM2TK (Left Rail), KK490 (Right Rail)

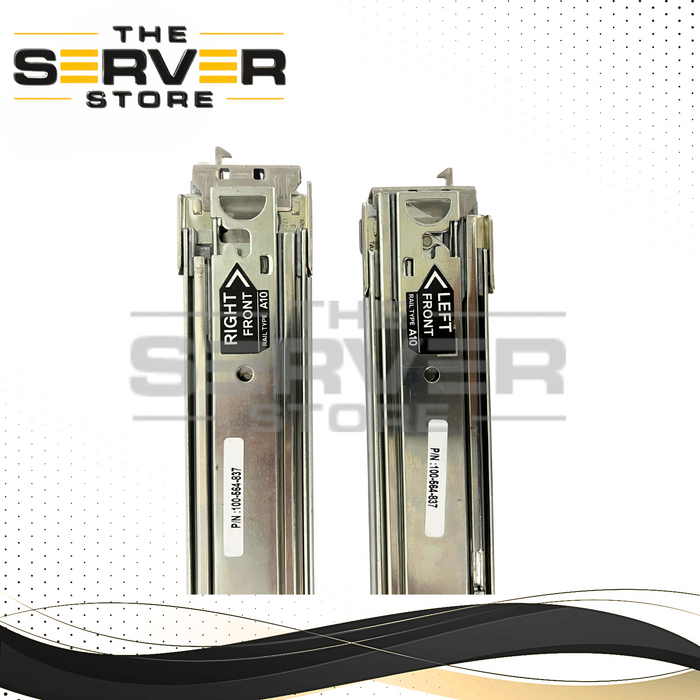

Rail Identifier: A10
Form Factor: 1U (Single Rack Unit)
Mounting Interface: ReadyRails (tool-less design)

Rail Depth: ~845 mm (with Cable Management Arm installed)

Other Related Part Numbers: 00PVD0, 0NM2TK, KK490, NM2TK, 0KK490


Rack Compatibility

  • 4-Post Racks: Tool-less installation for square-hole and unthreaded round-hole racks
  • Threaded Racks: Supported with optional adapter bracket kit
  • Rack Standard: EIA-310 19-inch

Cable Management Arm (CMA) Support

  • Fully compatible with tool-less CMA kits
  • CMA can be installed on either left or right side
  • Enables organized cable routing while allowing server extension

Compatible Dell PowerEdge Servers

This rail kit is designed for 1U PowerEdge systems (primarily 8-bay SFF chassis):

14th Generation (14G):

  • R640 (8-bay)

13th Generation (13G):

  • R430
  • R630 (8-bay)
  • R330

12th Generation (12G):

  • R420
  • R620 (8-bay)
  • R320

Design & Installation Features

  • Sliding Rail System: Allows full extension for in-rack servicing
  • Tool-less Mounting: Quick installation without screws in most rack types
  • Secure Locking Mechanism: Keeps server stable when inserted
  • Service-Friendly Design: Ideal for environments requiring frequent access

Important Notes

  • Designed specifically for 1U chassis
  • Optimized for 8-bay configurations (verify chassis compatibility)
  • Requires sufficient rack depth to accommodate full rail extension (~845 mm with CMA)
  • Optional brackets needed for threaded racks

Summary

The Dell A10 ReadyRails Sliding Rail Kit (00PVD0 / 0PVD0) is a practical and service-oriented mounting solution for 1U PowerEdge servers. With sliding functionality, CMA support, and tool-less installation, it provides excellent accessibility and cable management for enterprise rack deployments.
