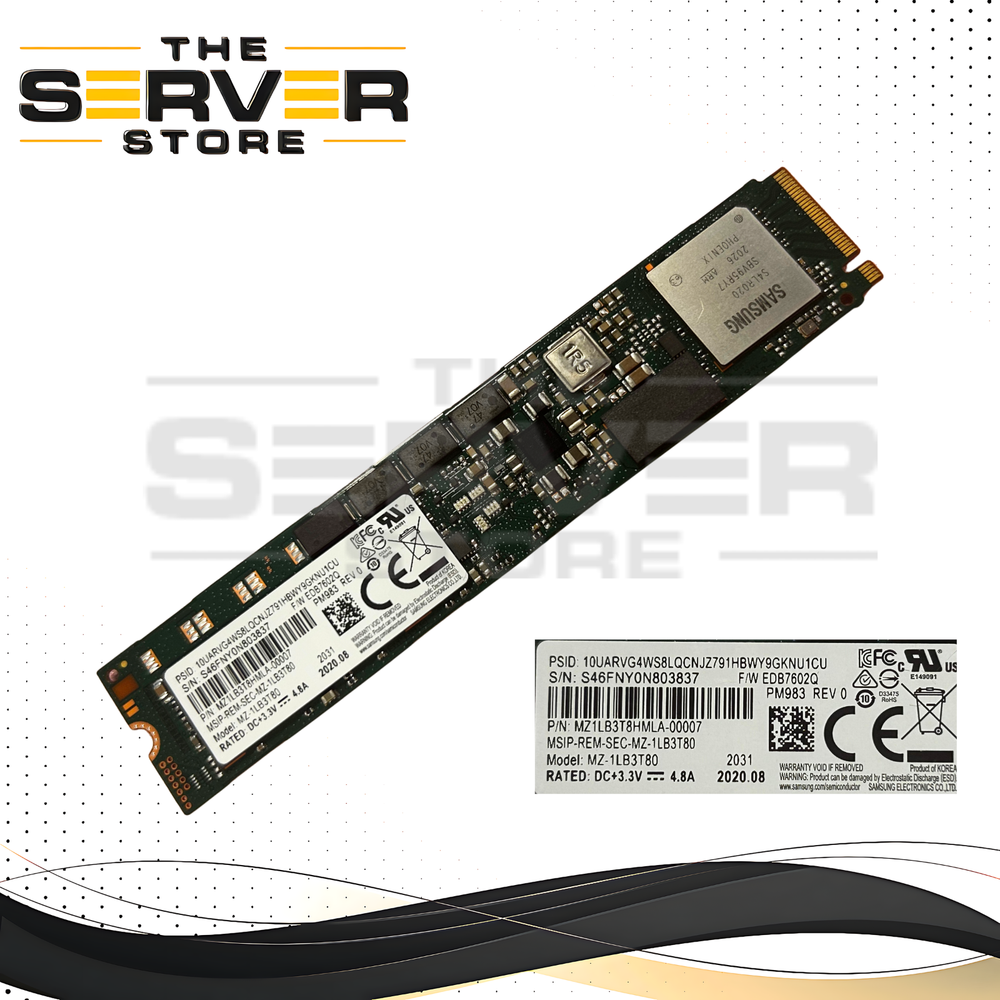

Samsung 3.84TB NVMe 22110 M.2 PCIe G3 x4 SSD PM983 MZ-1LB3T80 MZ1LB3T8HMLA-00007

PM983 | MZ-1LB3T80 | MZ1LB3T8HMLA-00007

The Samsung PM983 3.84TB NVMe SSD is an enterprise-class solid-state drive engineered for data center, cloud, and read-intensive workloads. Built with Samsung’s proven 3D V-NAND TLC technology and a high-performance PCIe Gen 3.0 x4 NVMe interface, the PM983 delivers exceptional throughput, low latency, and long-term reliability.

Featuring an M.2 22110 form factor, this SSD is ideal for servers and workstations that support extended-length M.2 slots, providing high capacity storage density without sacrificing performance.

Key Specifications

• Capacity: 3.84TB

• Model Numbers: MZ1LB3T8HMLA-00007 / MZ-1LB3T80

• Series: Samsung PM983

• Form Factor: M.2 22110 (22mm x 110mm)

• Interface: PCIe Gen 3.0 x4, NVMe 1.2b

• NAND Type: Samsung 3D V-NAND TLC

Performance

• Sequential Read: Up to 3,100 MB/s

• Sequential Write: Up to 2,000 MB/s

• Random Read (4KB): Up to 540,000 IOPS

• Random Write (4KB): Up to 50,000 IOPS

Endurance, Security & Reliability

• Endurance Rating: 1.3 DWPD (3-year rating)

• MTBF: 2.0 million hours

• Data Protection: Power Loss Protection (PLP), end-to-end data path protection

• Encryption: AES-256, TCG Opal 2.0 compliant

Physical & Power Characteristics

• Dimensions: 30.50 x 110.00 x 4.38 mm

• Weight: ≤ 22g

• Operating Temperature: 0°C to 70°C

• Power Consumption:

  • Active (Read/Write): 9.0W / 11.5W

  • Idle: 3.6W

Ideal Use Cases

• Enterprise servers and data centers

• Cloud infrastructure and virtualization

• Read-intensive applications

• High-density storage environments

Note: This SSD uses the M.2 22110 (110mm) form factor, which is longer than standard M.2 2280 drives. Please ensure motherboard or server compatibility before purchase.

Why Choose the Samsung PM983

The Samsung PM983 3.84TB NVMe SSD offers a powerful balance of performance, endurance, and enterprise-grade reliability. With advanced security features, consistent throughput, and Samsung’s trusted V-NAND technology, it is a proven storage solution for mission-critical workloads.
