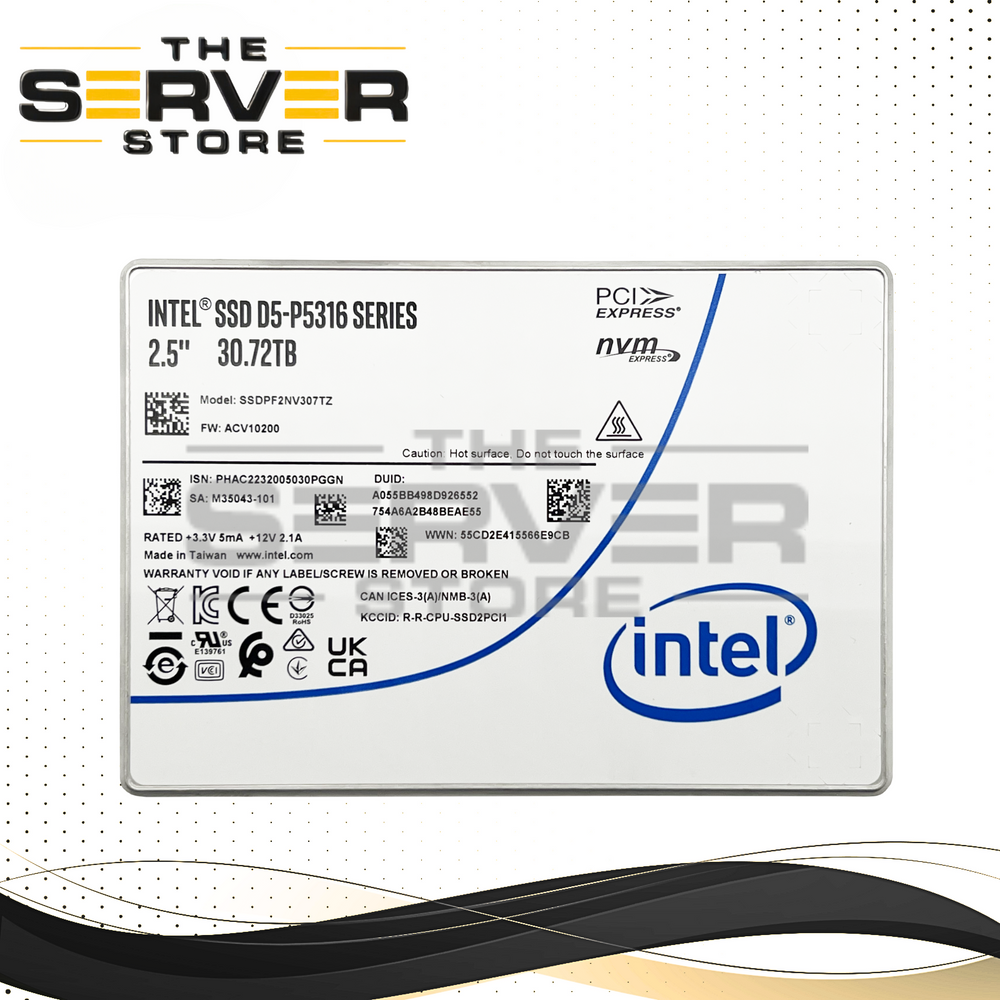

Intel 30.72TB NVME U.2 PCIe G4 x4 RI SED SFF 2.5" SSD D5-P5316 SSDPF2NV307TZ

The Intel 30.72TB NVMe U.2 PCIe Gen4 SSD (D5-P5316 Series) is an ultra-high-capacity, read-intensive enterprise solid-state drive designed for hyperscale data centers, cloud storage, and large-scale analytics platforms. Identified by manufacturer part numbers SSDPF2NV307TZ and M35043-101, this drive delivers industry-leading density and performance in a standard 2.5" SFF U.2 form factor.

Built on 144-layer QLC 3D NAND and leveraging a PCIe Gen4 x4 NVMe interface, the D5-P5316 provides exceptional throughput while maintaining power efficiency and enterprise-grade reliability. It is ideal for workloads such as content delivery, object storage, virtualization, and data lakes where maximum capacity per server is critical.

General Specifications

• Capacity: 30.72TB

• Series: Intel / Solidigm D5-P5316

• Part Numbers: SSDPF2NV307TZ, M35043-101

• Form Factor: 2.5" SFF (15mm), U.2

• Interface: PCIe Gen4 x4, NVMe v1.3c

• NAND Type: 144-Layer QLC 3D NAND

• Usage: Enterprise, Server, Data Center

• Workload Type: Read-Intensive (RI)

Performance

• Sequential Read: Up to 7,000 MB/s

• Sequential Write: Up to 3,600 MB/s

• Random Read (4K): Up to 800,000 IOPS

• Random Write (4K): Up to 7,800 IOPS

• Average Latency: 160 µs

Endurance & Reliability

• Endurance Rating: 0.41 – 0.5 DWPD

• Total Bytes Written (TBW):

  • Up to 104.55 PB (Sequential 64K)

  • Up to 22.93 PB (Random 64K)

• MTBF: 2,000,000 hours

• UBER: < 1 sector per 10¹⁷ bits read

Security & Data Protection

• Encryption: 256-bit AES hardware encryption (SED-enabled)

• Security Features: NVMe Sanitize, Firmware Measurement, Intel Remote Secure Erase

• Data Protection: Enhanced Power Loss Protection (PLP), End-to-End Data Protection

Power & Environmental

• Power Consumption: 25W active / 5W idle

• Operating Temperature: 0°C to 70°C

• Shock Resistance: 1,000G (0.5ms)

• Vibration: 2.17 Grms (operating), 3.13 Grms (non-operating)

The Intel / Solidigm D5-P5316 30.72TB NVMe SSD is a best-in-class solution for enterprises seeking maximum storage density, Gen4 performance, and secure read-intensive endurance in a compact U.2 form factor—perfect for modern hyperscale and cloud-native infrastructures.
