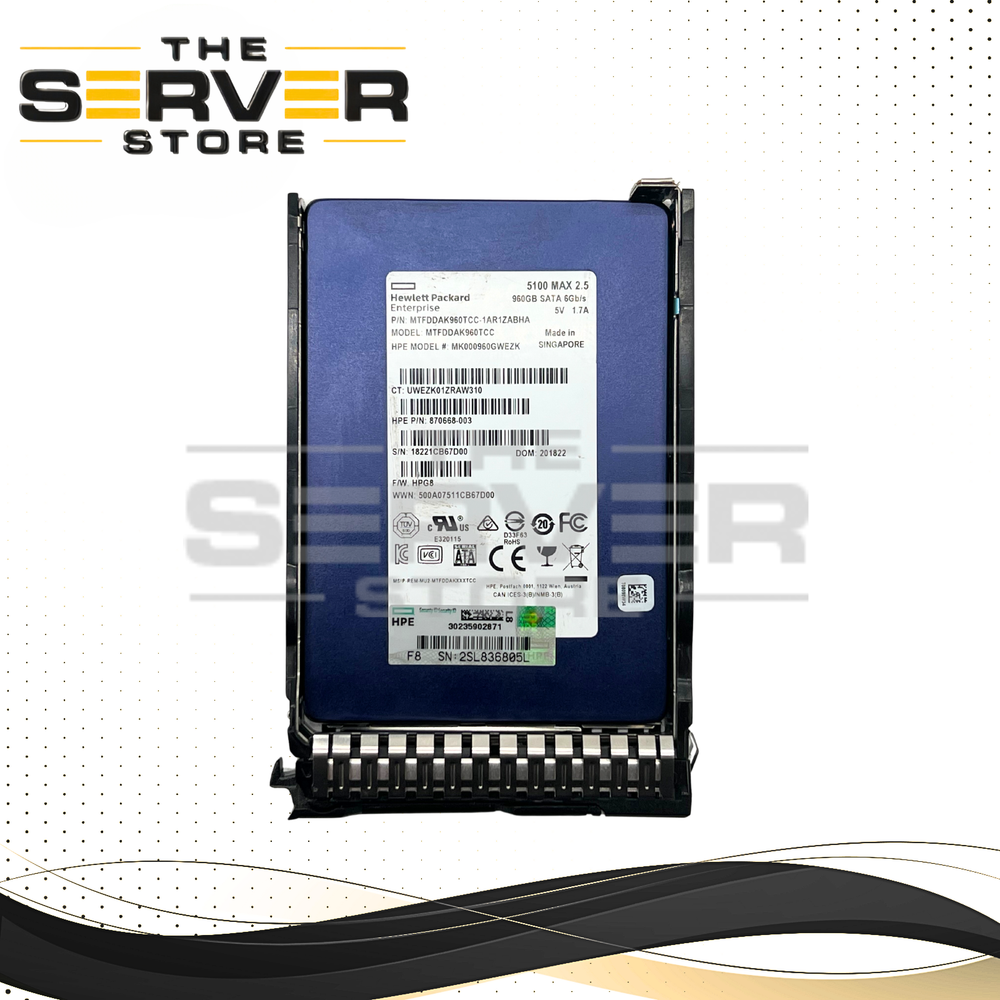

HPE 960GB SATA 6G MU SFF SC Tray 2.5" SSD Micron 5100 Max 875474-B21 875865-001 870668-003

The HPE 960GB SATA 6G Mixed Use (MU) SFF 2.5" Smart Carrier SSD is a high-end enterprise solid-state drive built on the Micron 5100 Max platform. Identified by part numbers MTFDDAK960TCC, MTFDDAK960TCC-1AR1ZABHA, 870668-003, MK000960GWEZK, 875474-B21, 875865-001, and 875475-B21, this SSD provides powerful mixed-use performance for HPE ProLiant and data center systems requiring fast, reliable, large-capacity storage.

With 960GB capacity, SATA 6Gb/s bandwidth, and 3D TLC NAND, the Micron 5100 Max platform is optimized for demanding read/write enterprise workloads. Featuring endurance ratings of 2.5 to 5 DWPD, Power Loss Protection, AES-256 encryption, and TCG Enterprise security, this drive ensures long-term stability, performance, and data integrity across mission-critical applications.

Backed by an MTBF of 2,000,000 hours and supporting digitally signed HPE firmware, this SSD is ideal for virtualization, transactional databases, cloud workloads, and mixed-use enterprise environments requiring consistent performance.

• Series: Micron 5100 Max

• Model Numbers: MTFDDAK960TCC, MTFDDAK960TCC-1AR1ZABHA

• HPE Part Numbers: 870668-003, MK000960GWEZK, 875474-B21, 875865-001, 875475-B21

• Capacity: 960 GB

• Interface: SATA 6Gb/s

• Form Factor: 2.5" SFF (Smart Carrier), also supports 3.5" LFF with converter

• NAND Type: 3D TLC

• Workload Class: Mixed Use (MU)

• Endurance: 2.5–5 DWPD, up to 4400 TBW

Performance:

• Sequential Read: Up to 540 MB/s

• Sequential Write: Up to 520 MB/s

• Random Read: Up to 93,000 IOPS

• Random Write: Up to 52,500 IOPS

• Latency:

  • Read: ~130 µs

  • Write: ~40 µs

Reliability & Security:

• MTBF: 2,000,000 hours

• Power Loss Protection (PLP): Included

• Security:

  • AES-256-bit encryption

  • TCG Enterprise support

  • FIPS 140-2 validation (for Max variants)

• Data Integrity: End-to-end data protection

• Firmware: Digitally-signed firmware for HPE compatibility

• Hot-Pluggable: Yes

Operating Environment:

• Temperature Range: 0°C to 70°C

This SSD is designed for high-demand HPE enterprise workloads, including:

• Virtualized environments

• OLTP / OLAP databases

• Cloud computing platforms

• Mixed-use storage arrays

• High-availability and mission-critical infrastructures

• Multi-user application servers

The HPE 960GB SATA MU SSD (Micron 5100 Max) delivers enterprise durability with up to 5 DWPD, exceptional read/write speeds, strong data protection technologies, and secure firmware validation. It’s engineered to support the reliability and performance that HPE enterprise environments require, making it a dependable choice for mixed-use workloads in production systems.
