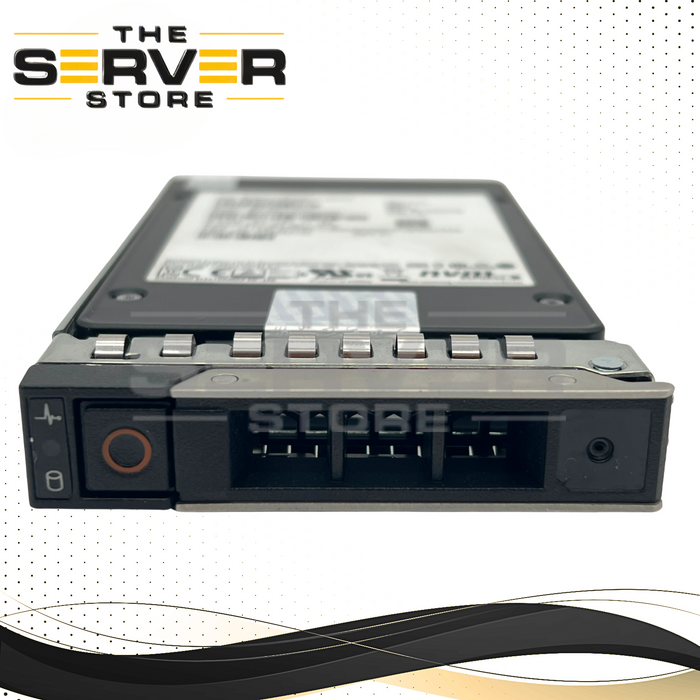

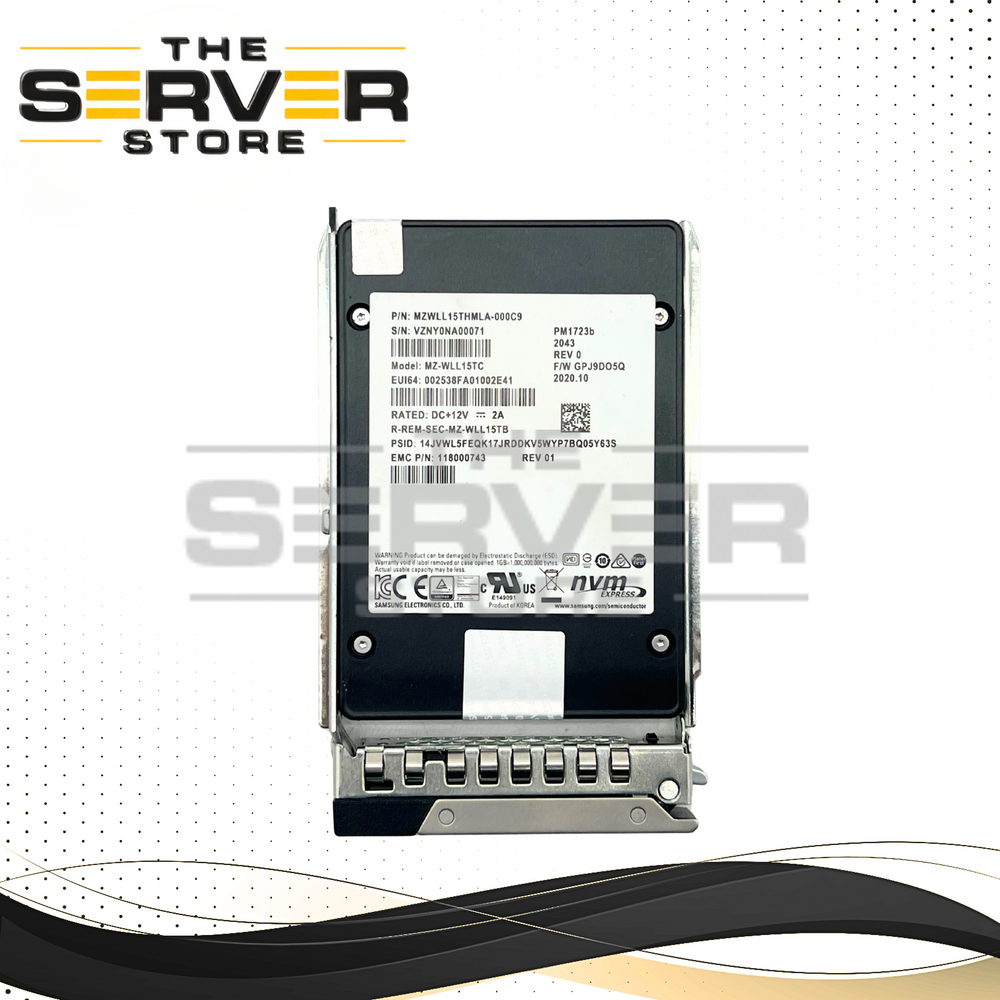

EMC 15.36TB NVME U.2 SFF 2.5" SSD Samsung PM1723b Series for Dell PowerEdge Server 118000743

The EMC 15.36TB NVMe U.2 SFF 2.5" SSD Samsung PM1723b is a high-capacity, enterprise-grade solid-state drive designed for data centers, cloud infrastructures, and high-performance computing environments. Built with Samsung’s advanced NAND technology, this drive offers blazing-fast NVMe performance over the U.2 interface, delivering ultra-low latency and high throughput for demanding workloads.

In addition to exceptional speed, the PM1723b features robust data protection, including hardware-based AES-256 encryption and self-encrypting drive (SED) capabilities, ensuring your critical data remains secure. It also holds a FIPS 140-2 Level 2 certification, making it ideal for environments with strict regulatory and security requirements.

Key Specifications:

• Capacity: 15.36TB

• Form Factor: 2.5-inch Small Form Factor (SFF)

• Interface: NVMe 1.3 over U.2 (PCIe Gen3 x4)

• Sequential Read Speed: Up to 6,500 MB/s

• Sequential Write Speed: Up to 3,800 MB/s

• Random Read IOPS: Up to 1,000,000 IOPS

• Random Write IOPS: Up to 130,000 IOPS

• NAND Type: Samsung V-NAND 3-bit MLC (TLC)

• Encryption: AES-256 XTS Self-Encrypting Drive (SED)

• Security Certification: FIPS 140-2 Level 2

• MTBF (Mean Time Between Failures): 2 million hours

• Power Consumption: Active ~25W (typical)

• Operating Temperature: 0°C to 70°C

• Compliance: RoHS, CE, FCC, TUV

• Warranty: Typically 5 years limited warranty

• Model: MZ-WLL15TC, MZWLL15THMLA-000C9

Ideal Use Cases:

• Enterprise data centers requiring high-capacity NVMe storage

• Cloud infrastructure with strict security and compliance needs

• High-performance computing (HPC) applications

• Database management systems and virtualization platforms
