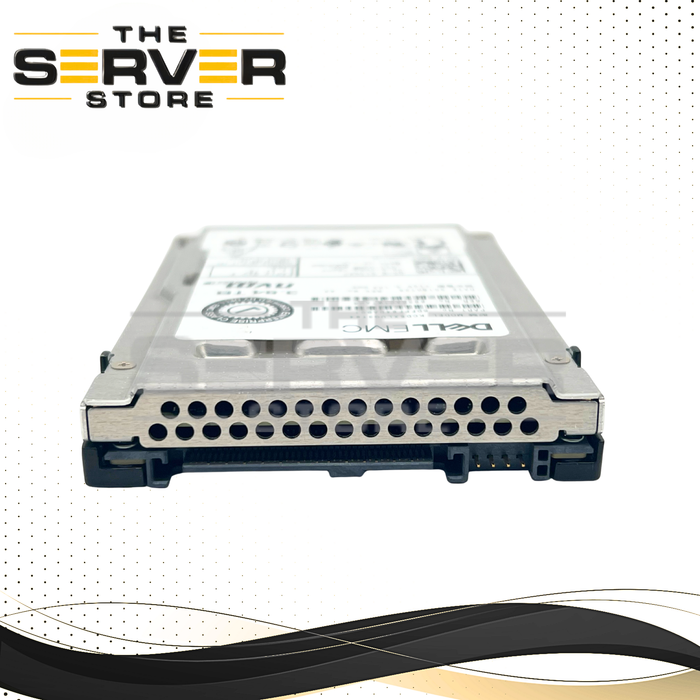

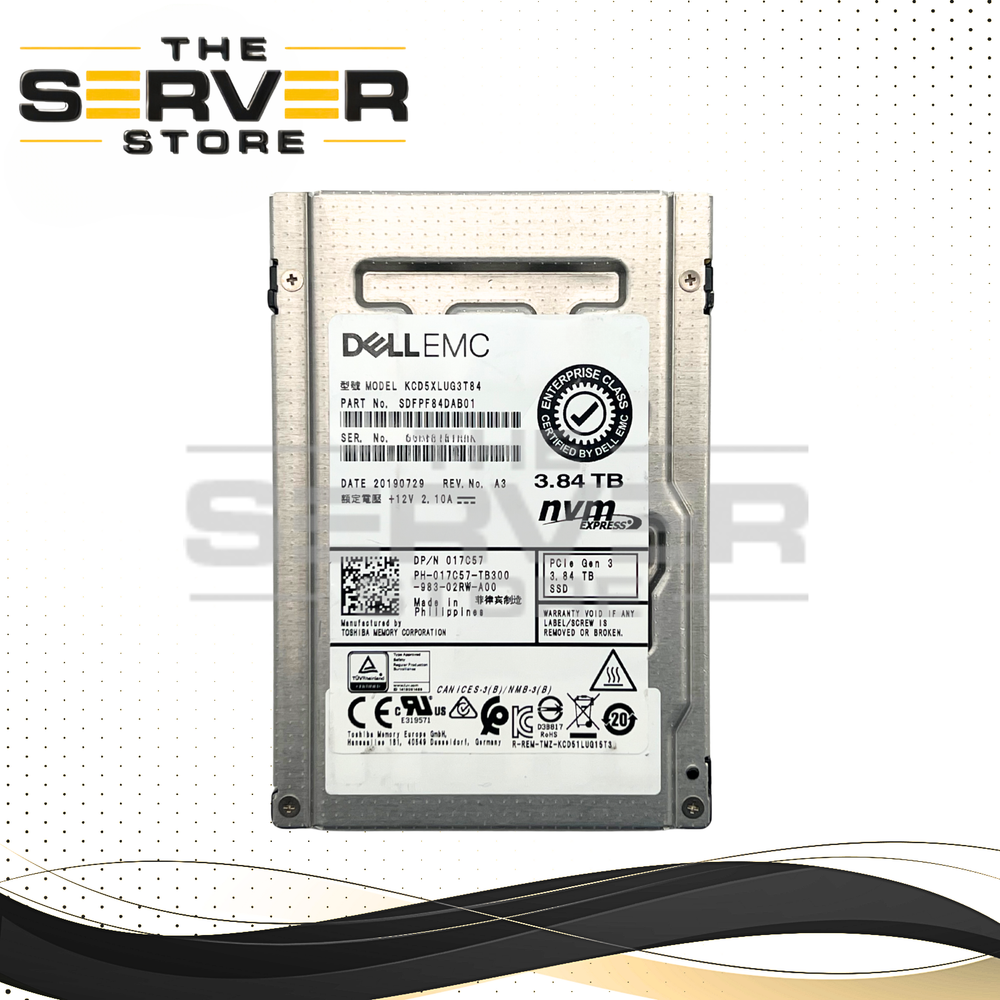

Dell EMC 3.84TB NVMe U.2 PCIe Gen 3.0 x4 SFF 2.5" SSD Kioxia CD5 KCD5XLUG3T84 017C57 17C57
- Dell EMC 3.84TB NVMe U.2 PCIe Gen3 x4 SFF 2.5" SSD Kioxia CD5 (KCD5XLUG3T84 / 017C57 / 17C57)
- Core Specifications
- Performance Metrics
- Key Features
- Server Compatibility
- Storage & Array Compatibility
- Compatibility Notes
- Related Part Numbers
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
- Despachamos ou retira em São Paulo
The Dell EMC 17C57 (Kioxia CD5 Series) is a Read Intensive (RI) enterprise NVMe SSD designed for high-capacity, read-heavy workloads such as data warehousing, media streaming, virtualization, and web-scale applications. Built with Kioxia BiCS FLASH 3D TLC NAND, it delivers high throughput, low latency, and enterprise-grade reliability in modern data center environments.
- Capacity: 3.84TB
- Interface: NVMe PCIe Gen 3.0 x4 (Single Port)
- Form Factor: 2.5-inch SFF (U.2 / 15mm height)
- NAND Type: 64-layer BiCS FLASH 3D TLC
- Endurance Class: Read Intensive (RI)
- Endurance: ~1 DWPD (5 years)
- MTTF: 2.5 Million hours
- Sequential Read: Up to 3,140 MB/s
- Sequential Write: Up to 1,520 MB/s
- Random Read: Up to 465,000 IOPS
- Random Write: Up to 40,000 IOPS
- Power Consumption: 11W – 13W (Active)
Read-Optimized Performance:
Ideal for workloads with high read demand such as analytics, content delivery, and virtualization
Advanced Data Protection:
Includes Power Loss Protection (PLP) and end-to-end data integrity features
Low Latency NVMe Interface:
PCIe Gen3 x4 interface ensures faster data access compared to SAS/SATA SSDs
Enterprise Reliability:
Designed for 24/7 operation in mission-critical data center environments
This SSD is designed for Dell PowerEdge servers and requires systems with NVMe (U.2 / SFF-8639) backplanes.
PowerEdge 16th Generation
- R660, R660xs
- R760, R760xs
- R6615, R6625
- R7615, R7625
PowerEdge 15th Generation
- R650, R650xs
- R750, R750xs, R750xa
- R6515, R6525
- R7515, R7525
PowerEdge 14th Generation
- R640, R740, R740xd
- R840, R940, R940xa
- R6415, R7415, R7425
PowerEdge 13th Generation (NVMe Configurations Only)
- R630, R730, R730xd
- PowerVault ME Series: ME5024 (NVMe-configured systems)
- NVMe Expansion Enclosures: Supported with compatible NVMe HBAs and backplanes
- Requires NVMe U.2 (SFF-8639) backplane
- Not compatible with standard SAS/SATA-only backplanes
- Supports enterprise operating systems including:
- Windows Server (2012 R2, 2016, 2019, 2022)
- VMware ESXi
- Red Hat Enterprise Linux (RHEL 7.0+)
- Modern Linux distributions
- 017C57
- 17C57
- KCD5XLUG3T84
- SDFPF84DAB01
The Dell EMC 3.84TB NVMe U.2 SSD (Kioxia CD5 Series) delivers high-speed performance, strong endurance, and enterprise-grade reliability, making it an excellent solution for read-intensive workloads in modern NVMe-enabled data center environments.
