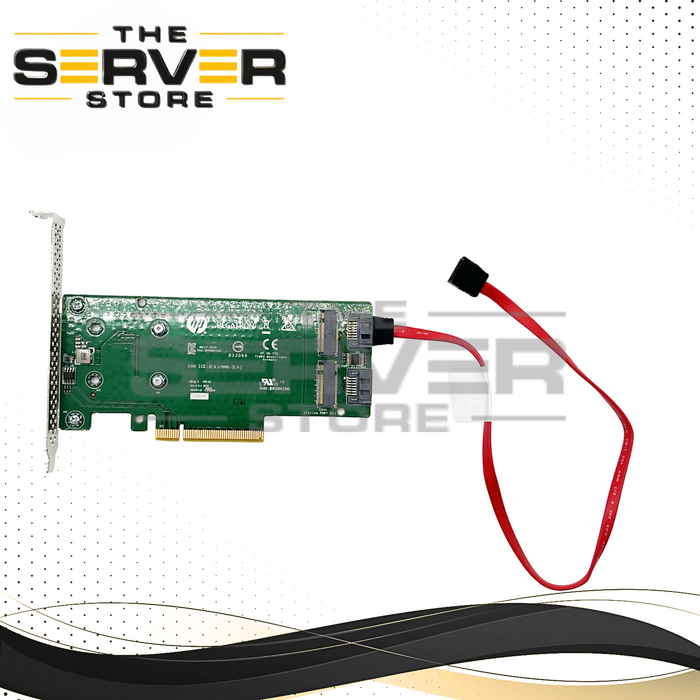

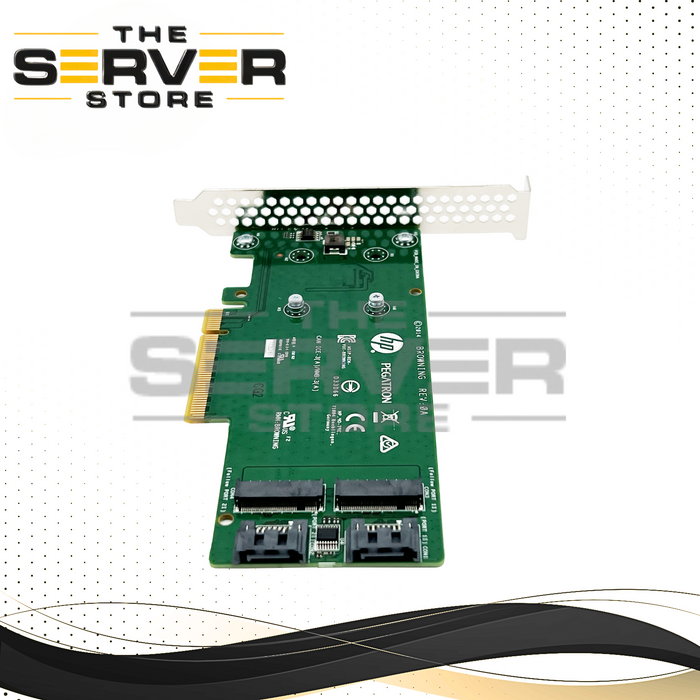

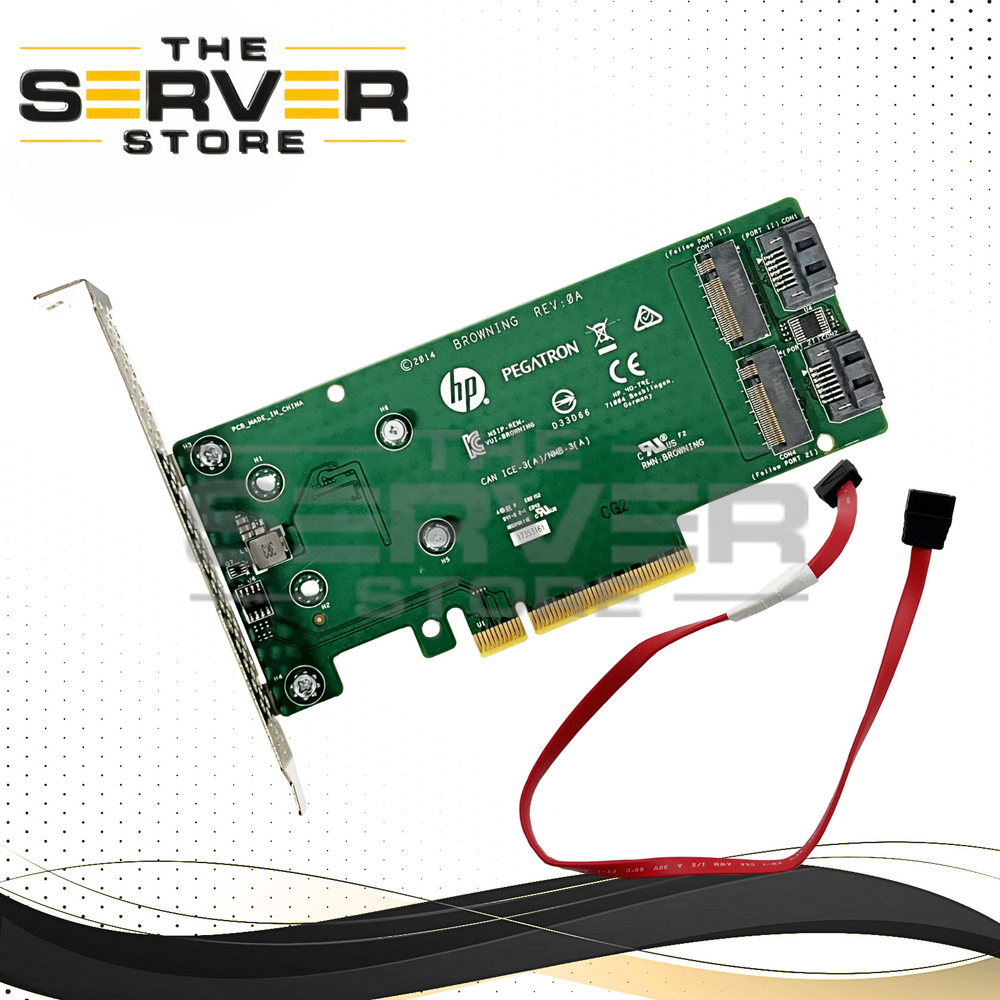

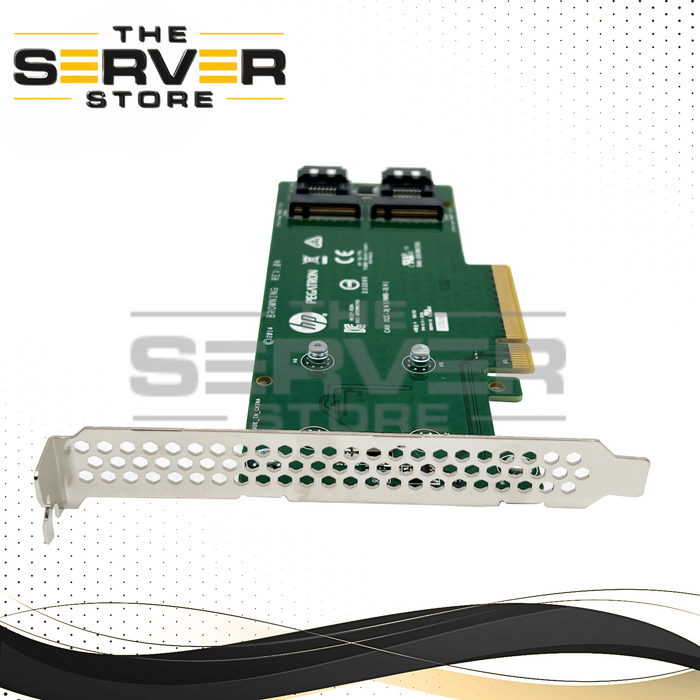

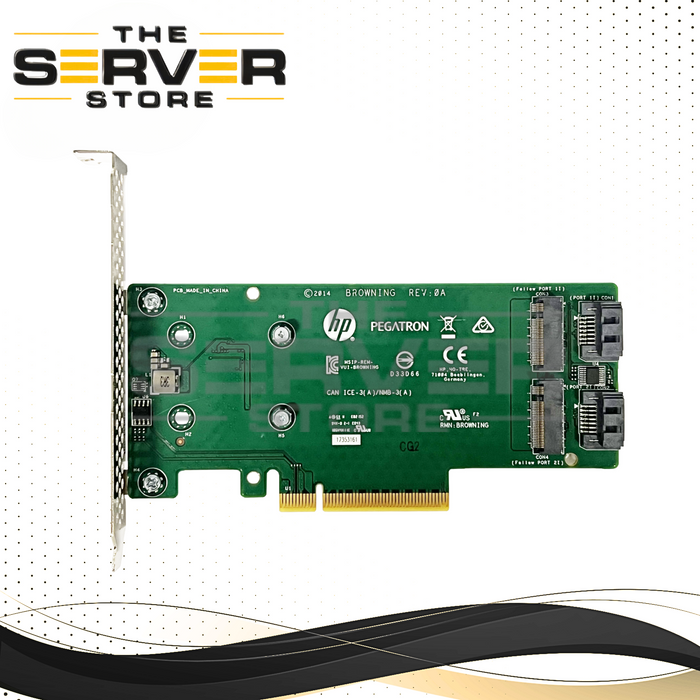

The HPE SATA M.2 Dual Drive PCIe Riser Card (Part Number 759505‑001) is an enablement kit designed to allow select HPE ProLiant Gen9 and Gen10 servers to support up to two internal M.2 SATA solid‑state drives. It is commonly used for boot drives or internal data storage without consuming front drive bays.
Technical Specifications
-
Manufacturer: Hewlett Packard Enterprise (HPE)
-
Part Number (MPN): 759505‑001
-
Bus Type: PCIe Gen2 x8 (mechanical and electrical)
-
Storage Interface: SATA 6Gb/s (up to 600 MB/s per drive)
-
Drive Support: Up to two M.2 SATA SSDs
-
M.2 Form Factors Supported:
- 2280 (80mm)
- 22110 (110mm)
-
Card Profile: Low‑profile design for internal installation
Data Flow Note:
The PCIe riser provides power and management. Actual SATA data connectivity may require a dedicated SATA cable connection to the system board or a splitter cable, particularly if an optical drive is present.
Server Compatibility
This riser card is compatible with a wide range of HPE ProLiant Gen9 and Gen10 platforms, including:
DL Series (Rack Servers):
DL20, DL120, DL160, DL180, DL325, DL360, DL380, DL385, DL560, DL580 (Gen9 and Gen10 variants)
ML Series (Tower Servers):
ML30, ML110, ML150, ML350 (Gen9 and Gen10 variants)
Apollo Series:
Apollo 2000, Apollo 4200, Apollo 4500, Apollo 6000
MicroServer:
ProLiant MicroServer Gen8

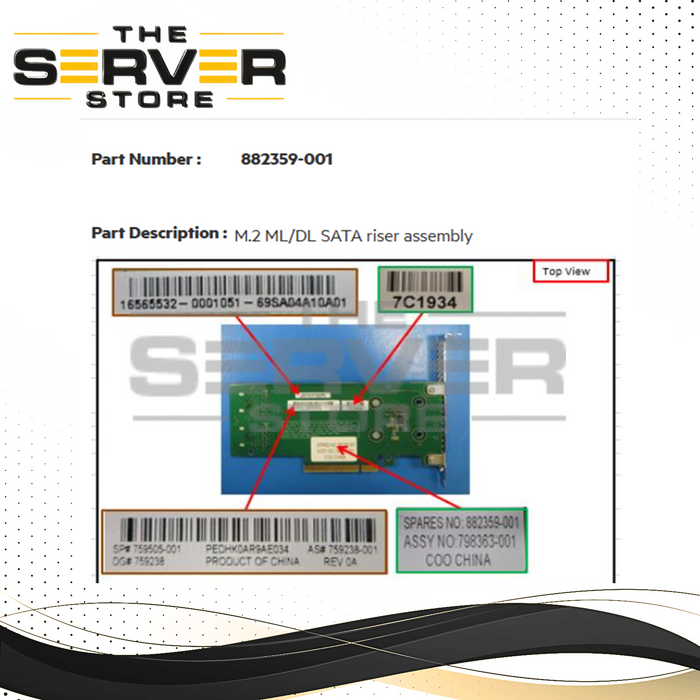

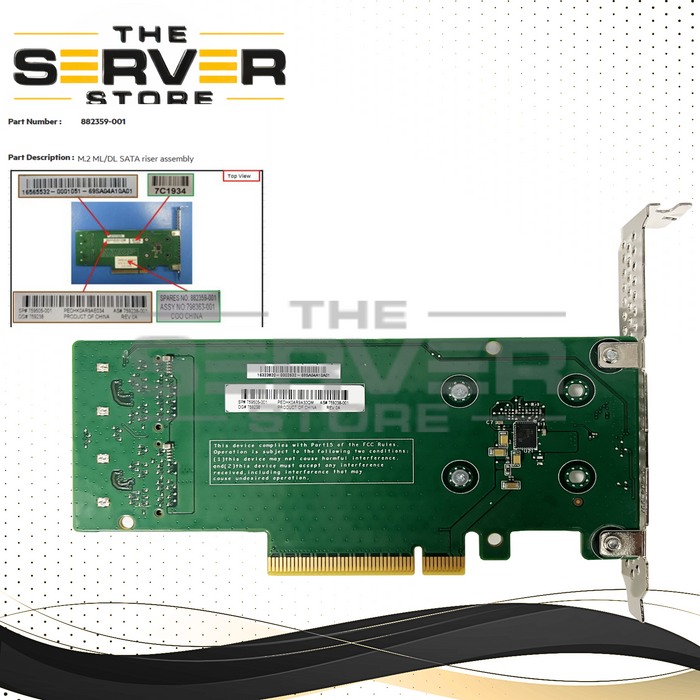

Other Related Part Numbers
759238‑001
759239‑001
Compatibility Note (ONLY‑CARD):
This HPE SATA M.2 Dual Drive PCIe Riser Card is compatible with and can be installed in the following HPE enablement kit part numbers. Part numbers that originally include the suffix “‑ONLY‑CARD” refer to the same physical riser card.
Compatible HPE Kit Part Numbers:
878783‑B21
878784‑B21
882359‑001
798363‑001
P00945‑001
777894‑B21
777895‑B21
788029‑B21
797907‑001
798362‑001
835802‑001
835566‑B21
835564‑B21
P46809‑B21
Usage Notes
This riser card enables internal M.2 SATA SSD support without occupying front drive bays and is ideal for operating system boot devices, hypervisor storage, or internal application data. It is intended for enterprise server environments and official HPE ProLiant platforms.
