[shortdesc]

• Zebra ZT42062-T010000Z (ZT420) is a high-performance industrial barcode label printer, supporting both thermal transfer and direct thermal printing with 203 dpi resolution, 12 ips print speed, and multiple connectivity options

[/shortdesc]

[specifications] [/specifications]

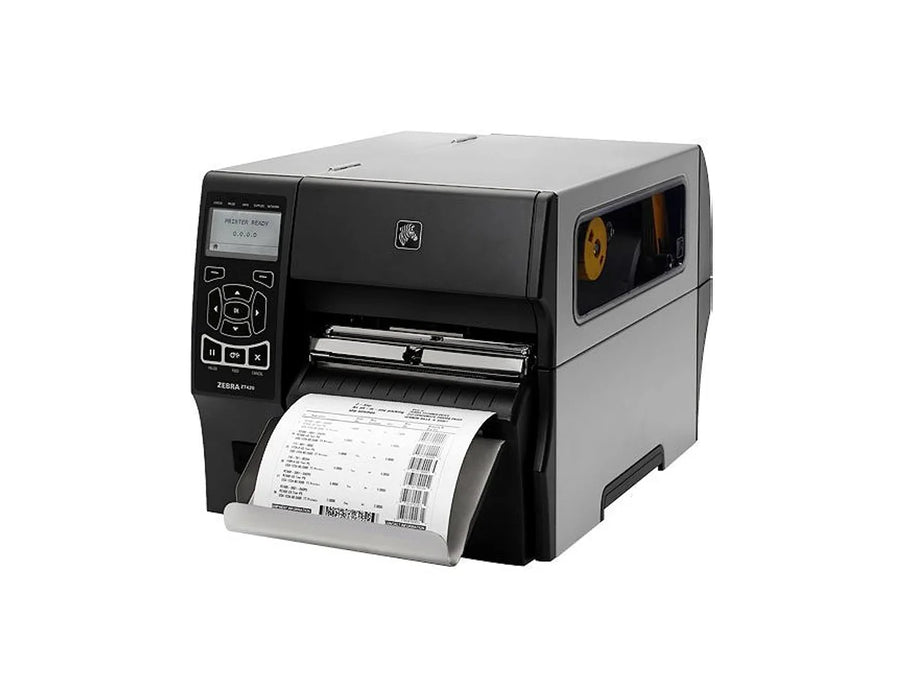

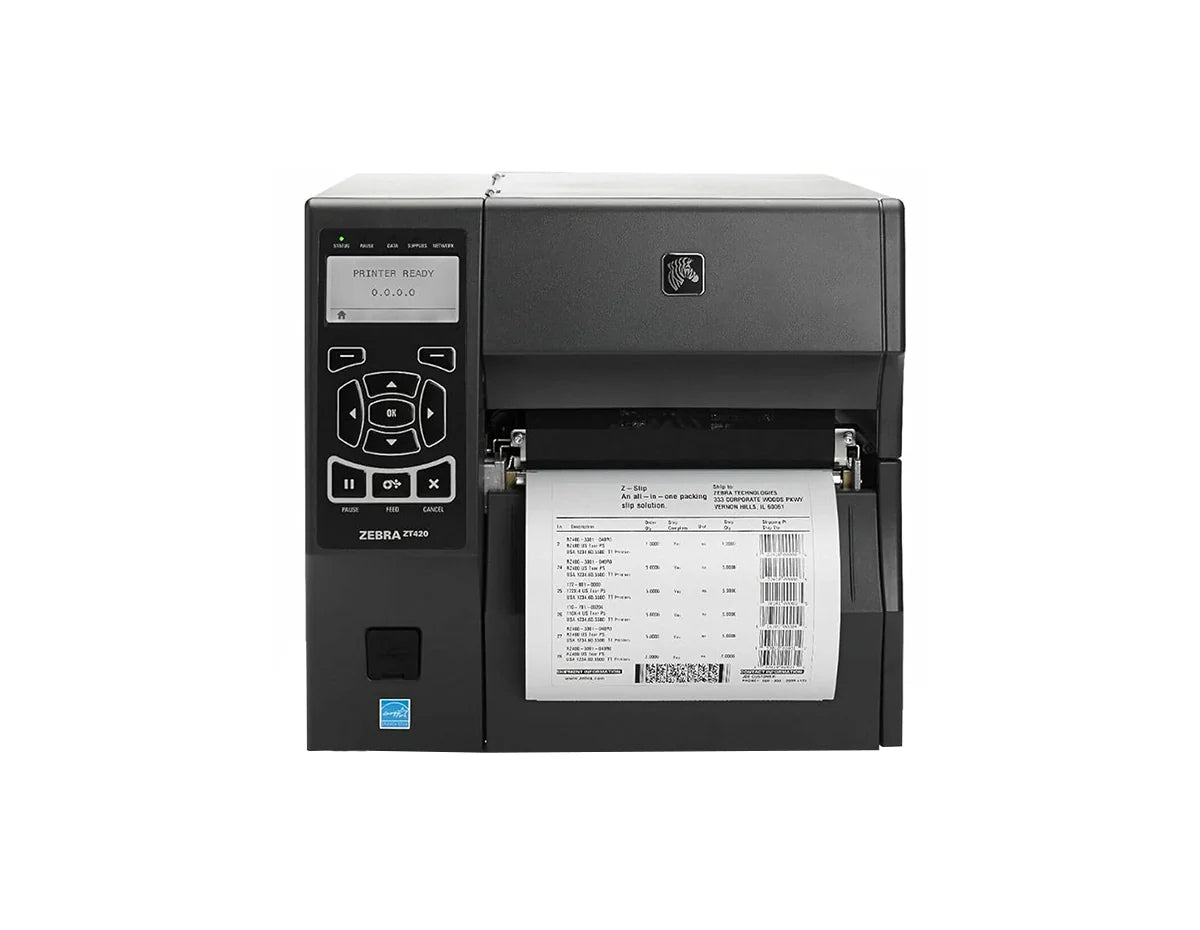

Zebra ZT42062-T010000Z Thermal / Direct Thermal Barcode Label Printer (ZT420)

The Zebra ZT420 is a powerful and versatile industrial barcode label printer designed for high-volume printing applications. With a maximum print width of 6.61 inches and a speed of up to 12 inches per second, it delivers sharp and efficient label production for manufacturing, logistics, healthcare, and warehouse operations. Supporting both thermal transfer and direct thermal printing, the ZT420 ensures long-lasting or short-term label durability as required. It features a user-friendly LCD display, a tear bar for easy label dispensing, and multiple connectivity options, including USB, RS-232, Ethernet, and Bluetooth, for seamless integration.

Ribbon Requirement: Ribbon Required (for Thermal Transfer printing) / No Ribbon Required (for Direct Thermal printing)

• Dual Printing Technology: Supports both thermal transfer and direct thermal printing.
• High-Speed Printing: Prints at up to 12 inches per second for increased productivity.
• Multiple Connectivity Options: Includes USB, Serial (RS-232), Ethernet, and Bluetooth.
• Large Print Width: Prints labels up to 6.61 inches wide.
• Industrial-Grade Durability: Built with a rugged metal frame for high-demand environments.
• Advanced Media Handling: Supports die-cut labels, continuous labels, black mark, and notched media.
• Easy-to-Use Interface: LCD display with intuitive navigation and bi-color LED indicators.

• Print Technology: Thermal Transfer / Direct Thermal
• Print Resolution: 203 dpi
• Maximum Print Speed: 12 in/sec
• Maximum Print Width: 6.61 inches
• Memory: 256MB SDRAM, 512MB Flash
• Interface Options: USB, Serial (RS-232), Ethernet (Fast Ethernet), Bluetooth
• Display: LCD screen with bi-color LED indicators
• Barcode Symbologies Supported: Code 39, Code 128, UPC-A, QR Code, Data Matrix, Maxi Code, PDF-417, and more
• Supported Media Types: Label, Continuous Label, Die-cut Label, Notch, Black Mark
• Maximum Roll Diameter: 8 inches
• Maximum Label Width: 7.01 inches
• Maximum Label Length: 39 inches
• Media Sensor: Transmissive and Reflective
• Ribbon Core Size: 1 inch
• Power Supply: AC input (110V/220V)
• Dimensions (H x W x D): 12.8 x 13.3 x 19.5 inches
• Weight: 40 lb
