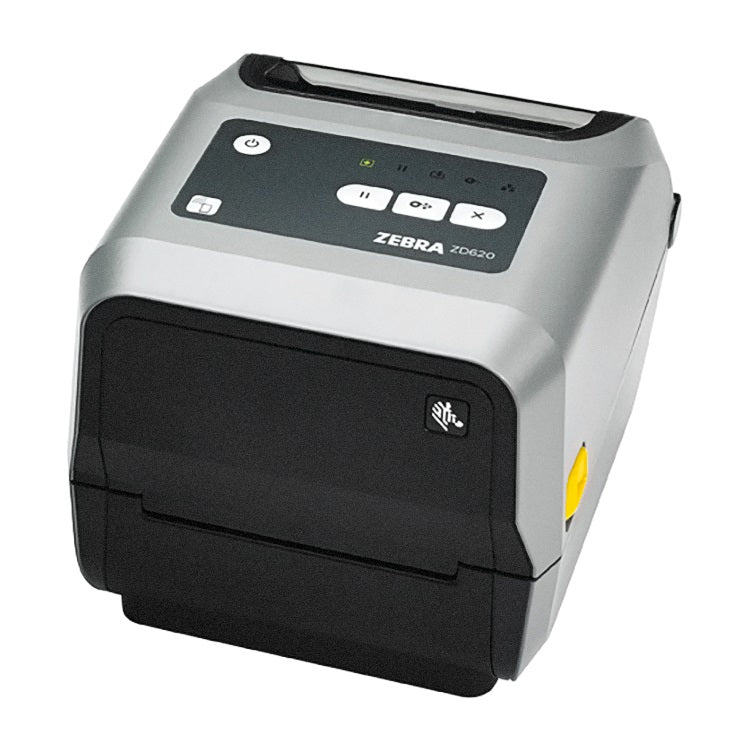

Zebra ZD620 203 dpi 8 ips USB, Ethernet, Serial Thermal Transfer Desktop Barcode Label Printer - ZD62042-T01F00EZ

The Zebra ZD620 (ZD62042-T01F00EZ) is a mid-range thermal transfer desktop label printer delivering 203 dpi resolution, 8 ips print speed, and multiple connectivity options including USB, Ethernet, and Serial — built for demanding barcode, compliance, and shipping label workflows in warehouse, manufacturing, and healthcare environments.

Key Features

• 203 dpi thermal transfer printing for durable, long-lasting barcode labels
• 8 ips print speed for fast, high-volume label production
• USB, Ethernet, and Serial connectivity for flexible system integration
• Zebra Link-OS for cloud connectivity and remote printer management
• Easy ribbon and media loading with the ZD620's tool-free design

Product Specifications

• Part Number: ZD62042-T01F00EZ
• Manufacturer: Zebra
• Print Method: Thermal Transfer
• Print Resolution: 203 dpi (8 dots/mm)
• Print Speed: Up to 8 ips (203mm/s)
• Max Print Width: 4.09 inches (104mm)
• Display: Dual LED status indicators

Print Specifications

• Max Label Width: 4.5 inches (114mm)
• Max Label Length: 39 inches (991mm)
• Min Label Length: 0.25 inches (6.35mm)
• Ribbon Capacity: 300-meter ribbon roll
• Media Capacity: 5-inch OD media roll
• Label Sensors: Gap/notch, black mark, head-open

Connectivity Specifications

• USB: USB 2.0 (host and device)
• Ethernet: 10/100 Base-T
• Serial: RS-232 (DB-9)
• Management: Zebra Link-OS (ZPL, CPCL, remote management)
• Optional: Bluetooth, Wi-Fi (model dependent)

Use Cases

• Warehouse shipping and receiving label printing at fixed workstations
• Manufacturing part identification, WIP, and compliance labeling
• Healthcare specimen, medication, and asset label production
• Retail backroom and distribution center thermal transfer barcode printing

Compatibility

• Compatible with Zebra ZPL and CPCL label programming languages
• Works with Zebra Designer label design software and ZebraLink middleware
• Supports Windows, macOS, and Linux via Zebra printer drivers
• Compatible with standard thermal transfer ribbon types: wax, wax/resin, resin

Frequently Asked Questions

What does the ZD62042 part number indicate?

In Zebra's naming convention, ZD620 is the printer family, 4 indicates 4-inch print width, and 2 indicates 203 dpi resolution. The full suffix -T01F00EZ specifies thermal transfer, interface configuration, and region.

Does the ZD620 support ZPL programming?

Yes — the ZD620 is fully ZPL-compatible, making it a plug-and-play replacement for most existing Zebra printer installations without label format reprogramming.

What ribbon does the ZD62042-T01F00EZ use?

The ZD620 accepts standard 300-meter thermal transfer ribbon rolls up to 4.3 inches wide, compatible with wax, wax/resin, and full resin ribbon types depending on label material requirements.

The Zebra ZD620 ZD62042-T01F00EZ delivers the print speed, connectivity breadth, and Zebra Link-OS intelligence that demanding industrial and commercial labeling environments require — combining proven ZPL compatibility with modern cloud management in a reliable mid-range desktop platform.
