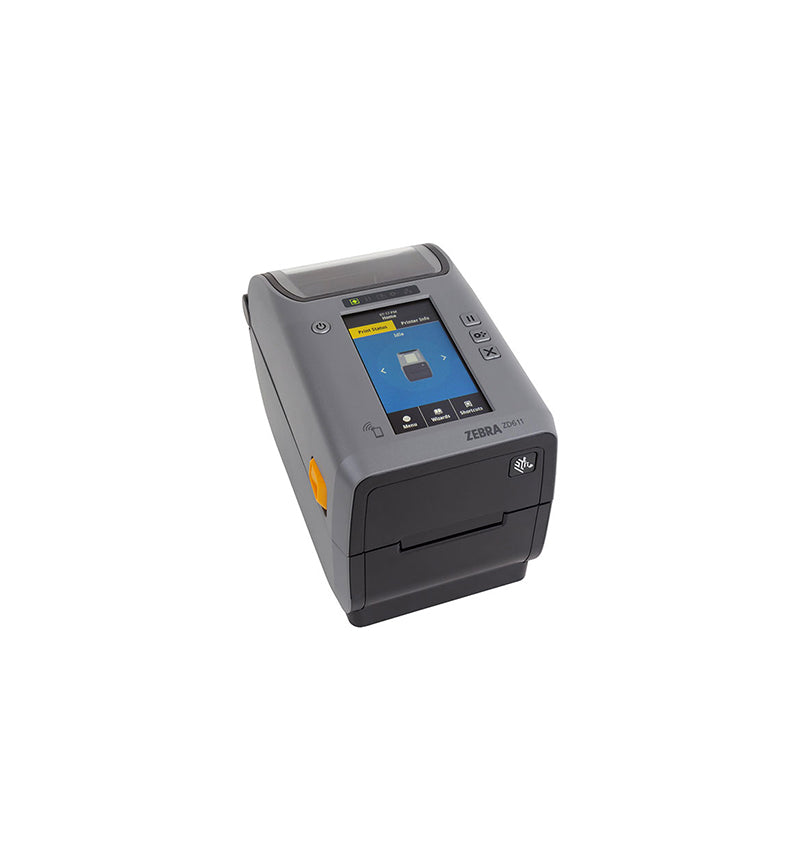

Zebra ZD611t 300 dpi 6 ips USB, Bluetooth, Ethernet, Wi-Fi 4.3-inch Touch Screen LCD Display Thermal Transfer Desktop Barcode Label Printer - ZD6A123-T01B01EZ

The Zebra ZD611t (ZD6A123-T01B01EZ) is a compact thermal transfer desktop label printer offering 300 dpi resolution, 6 ips print speed, and full connectivity — USB, Bluetooth, Ethernet, and Wi-Fi — with a 4.3-inch color touchscreen for intuitive label production in retail, healthcare, and light manufacturing environments.

Key Features

• 300 dpi thermal transfer printing for sharp, durable barcode and label output
• 6 ips print speed for efficient label throughput
• Full connectivity suite: USB, Bluetooth 4.1, Ethernet, and Wi-Fi 802.11ac
• 4.3-inch color touchscreen LCD for easy operation and status monitoring
• Zebra Link-OS for cloud connectivity and remote printer management

Product Specifications

• Part Number: ZD6A123-T01B01EZ
• Manufacturer: Zebra
• Print Method: Thermal Transfer
• Print Resolution: 300 dpi (11.8 dots/mm)
• Print Speed: Up to 6 ips (152mm/s)
• Display: 4.3-inch Color Touchscreen LCD
• Max Print Width: 2.2 inches (56mm)

Print Specifications

• Max Label Width: 2.4 inches (60mm)
• Max Label Length: 39 inches (991mm)
• Min Label Length: 0.25 inches (6.35mm)
• Ribbon Capacity: 300-meter ribbon roll
• Media Capacity: 5-inch OD media roll
• Label Sensors: Gap/notch, black mark, head-open

Connectivity Specifications

• USB: USB 2.0 Full Speed (host and device)
• Bluetooth: Bluetooth 4.1 (Classic and LE)
• Ethernet: 10/100 Base-T
• Wi-Fi: 802.11a/b/g/n/ac (dual-band)
• Management: Zebra Link-OS (ZPL, ZBI 2.0, remote management)

Use Cases

• Retail shelf-edge and price labeling with wireless flexibility
• Healthcare specimen, medication, and patient wristband printing
• Light manufacturing part identification and work-order labeling
• Shipping and receiving label production in small warehouse environments

Compatibility

• Compatible with Zebra ZPL and EPL label programming languages
• Works with Zebra Designer label design software and ZebraLink middleware
• Supports Windows, macOS, Linux, Android, and iOS via Bluetooth and Wi-Fi
• Compatible with standard 1-inch core thermal transfer ribbon rolls

Frequently Asked Questions

What is the difference between thermal transfer and direct thermal printing?

Thermal transfer uses a ribbon to print durable, long-lasting labels resistant to heat, chemicals, and UV. Direct thermal prints without ribbon but produces labels that fade over time — thermal transfer is preferred for barcode labels requiring longevity.

Does the ZD611t support ZPL programming?

Yes — the ZD611t is fully ZPL-compatible, making it a drop-in replacement for most Zebra printer installations without reprogramming label formats.

What ribbon size does the ZD6A123-T01B01EZ use?

The ZD611t accepts standard 300-meter thermal transfer ribbon rolls up to 2.2 inches wide, compatible with wax, wax/resin, and resin ribbon types.

The Zebra ZD611t ZD6A123-T01B01EZ raises the bar for compact desktop label printing — pairing enterprise-grade connectivity, Link-OS cloud management, and a full-color touchscreen in a footprint small enough for any workstation, making it a versatile long-term investment for growing labeling operations.
