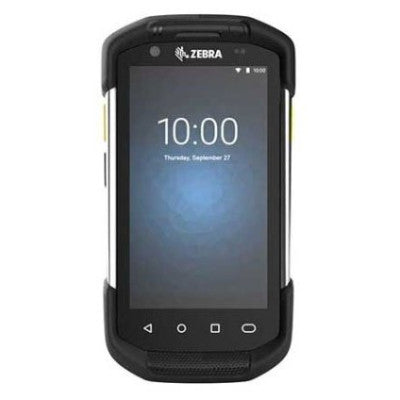

Zebra TC77 2D Imager Handheld Mobile Computer Barcode Scanner - TC77HL-5ME24BG-A6

The Zebra TC77 (TC77HL-5ME24BG-A6) is a rugged enterprise-grade Android handheld mobile computer built for demanding retail, warehouse, manufacturing, and field service environments. Combining a high-performance 2D imager barcode scanner, 4G LTE, Wi-Fi 5, Bluetooth 5.0, and NFC in a durable form factor, the TC77 delivers the connectivity and scanning capability needed to power mission-critical workflows. Running Android with Zebra's Mobility DNA enterprise software suite, it provides IT teams with powerful device management, security, and application deployment tools out of the box.

Key Specifications

• Part Number / MPN: TC77HL-5ME24BG-A6
• Manufacturer: Zebra Technologies
• Product Line: TC7x Series
• Operating System: Android (GMS)
• Processor: Qualcomm Snapdragon octa-core
• RAM: 4GB
• Storage: 64GB UFS
• Display: 5-inch HD (1280 x 720) capacitive touch, Corning Gorilla Glass
• Scanner: SE4850 2D long-range imager
• Camera (Rear): 13MP autofocus with flash
• Camera (Front): 5MP
• Battery: 4,620 mAh PowerPrecision+ (hot-swappable)

Scanning Performance

• Scanner Type: SE4850 2D long-range imager
• Supported Barcodes: All major 1D and 2D symbologies including Code 39, Code 128, QR Code, Data Matrix, PDF417, GS1 DataBar, Composite codes
• Scan Range: Near to far (standard labels to warehouse racking at distance)
• Scan Angle: Wide field of view for fast, intuitive scanning
• DPM (Direct Part Mark): Yes — reads laser-etched, dot-peen, and inkjet marks

Connectivity

• WWAN: 4G LTE (multi-band)
• Wi-Fi: 802.11 a/b/g/n/ac (Wi-Fi 5), dual-band 2.4GHz & 5GHz
• Bluetooth: 5.0
• NFC: Yes (ISO 14443 A/B, ISO 15693, NFC Forum)
• GPS: Yes (integrated)
• USB: USB-C (charging and data)

Rugged Design

• Drop Specification: 1.8m (6 ft) drop to concrete per MIL-STD-810G
• Tumble Specification: 1,000 1-meter tumbles
• Sealing: IP67 — dust-tight and immersion-proof (1m for 30 minutes)
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Display: Corning Gorilla Glass — glove and wet finger touch support

Battery

• Capacity: 4,620 mAh PowerPrecision+
• Hot-Swap: Yes — swap battery without powering down
• Shift Life: Full shift operation on a single charge
• Charging: USB-C, cradle, or multi-slot charging station

Software & Management

• Android with Google Mobile Services (GMS)
• Zebra Mobility DNA suite: StageNow, Zebra Device Tracker, LifeGuard for Android security updates, OEMConfig
• FIPS 140-2 compliant security
• Compatible with Zebra Workforce Connect, Reflexis, and major WMS/ERP platforms
• Supports Android Enterprise (AE) for EMM/MDM management via VMware Workspace ONE, SOTI MobiControl, Microsoft Intune

Compatibility & Accessories

• Compatible with Zebra TC7x series accessories: single/multi-slot cradles, holsters, hand straps, trigger handles, vehicle cradles
• Compatible with CRD-TC7X series charging cradles
• Compatible with Zebra scan handle (TRG-TC7X-SNP1-01) for trigger-style scanning
• Ideal for retail, warehouse, manufacturing, healthcare, and field service deployments
