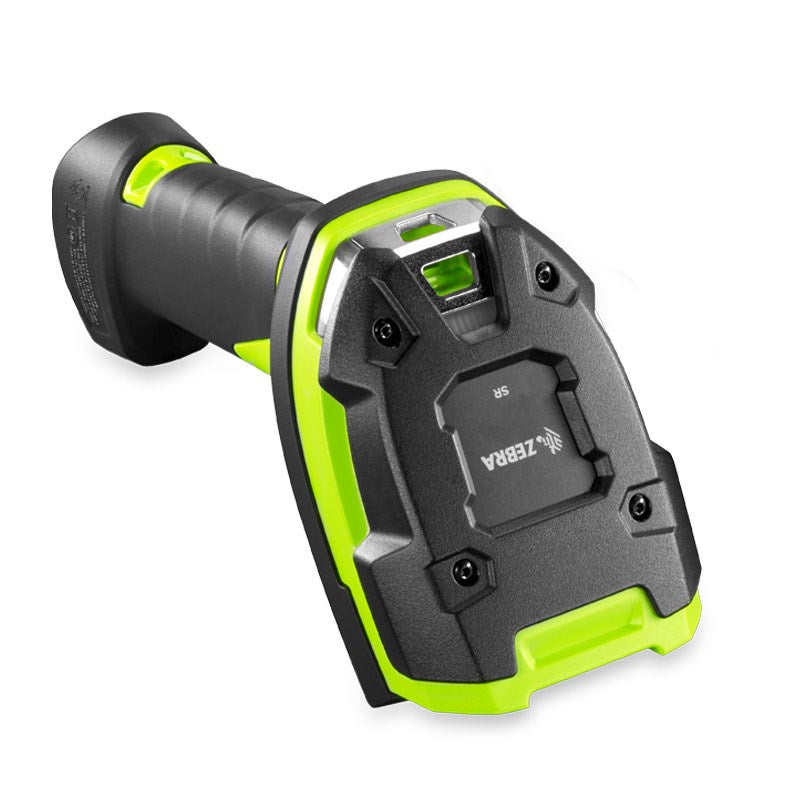

Zebra DS3678-SR Cordless 2D Barcode Scanner Bluetooth USB - DS3678-SR0F003VZWW

The Zebra DS3678-SR is a rugged, cordless 2D area imager built for demanding retail, warehouse, and manufacturing environments. Combining Bluetooth wireless freedom with enterprise-grade durability and exceptional scanning performance, it reads virtually any barcode — including damaged, dirty, and poorly printed codes — from near contact to over 20 feet away.

Scanner Specifications

• Part Number: DS3678-SR0F003VZWW
• Model: Zebra DS3678-SR (Standard Range)
• Scan Type: 2D Area Imager
• Barcode Support: 1D, 2D, PDF417, QR Code, Data Matrix, Aztec, composite codes, and more
• Illumination: LED
• Aimer: Red LED dot

Performance

• Scan Range: Near contact to 20+ ft (standard range)
• Motion Tolerance: Up to 254 cm/s (100 in/s)
• Decode Capability: Reads damaged, dirty, low-contrast, and poorly printed barcodes
• Omnidirectional Scanning: Yes

Connectivity

• Wireless: Bluetooth 4.0 (Class 1, up to 100m range)
• Wired: USB (via cradle)
• Compatible Cradle: Included charging/communication cradle
• Host Compatibility: PC, Mac, POS terminals, mobile devices

Battery

• Battery Type: Rechargeable Li-Ion
• Battery Life: Up to 14 hours (57,000 scans) per charge
• Charging: Via cradle (4-hour full charge)

Physical & Environmental Specifications

• Drop Specification: 1.8 m (6 ft) to concrete per MIL-STD-810G
• Tumble Specification: 2,000 tumbles at 0.5 m
• Sealing: IP67 (dust-tight and waterproof)
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Weight: Approx. 340 g (12 oz) with battery

Regulatory & Compliance

• FCC, CE, IC certified
• RoHS compliant
