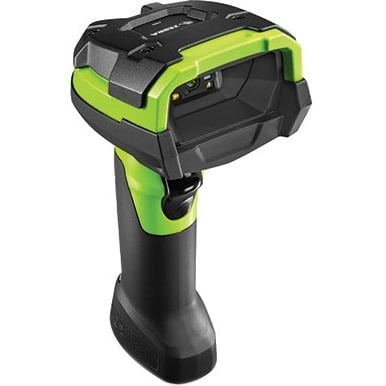

Zebra DS3608 Ultra-Rugged Barcode Scanner (DS3608-HD20003VZW)
Zebra DS3608 Ultra-Rugged Barcode Scanner (DS3608-HD20003VZW)

Zebra DS3608 Ultra-Rugged Barcode Scanner (DS3608-HD20003VZW)

por Zebra
R$ 9.588,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Connectivity Technology: Cable, Scanning Capability: 1D/2D, Image Sensor Type: Imager


[/shortdesc]

[properties]

Product Name Zebra DS3608-HD Barcode Scanner
Description The Zebra DS3608-HD is an ultra-rugged, corded handheld scanner designed for high-density 1D/2D barcodes. It offers exceptional durability and performance for tough environments such as electronics manufacturing production lines.
Connectivity Technology Cable
Scanning Capability 1D, 2D
Barcode Symbology Supported 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma); 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Image Sensor Type Imager
Form Factor Handheld
Color Industrial Green
Height 7.3" (18.5 cm)
Width 3" (7.6 cm)
Depth 5.2" (13.2 cm)
Weight 10.90 oz (305 g)
Input Voltage Host powered: 4.5 VDC min., 5.5 VDC max.; External power supply: 11.4 VDC min., 12.6 VDC max.
Operating Current 360 mA (RMS typical)
Standby Current 100 mA (RMS typical)
User Indicators Direct decode indicator, LEDs, beeper, vibration

[/properties]

[specifications]

Scans per Full Charge 100,000+
Image Capture Basic
Illumination One (1) 660 nm LED
Aimer 610 nm LED
Imager Field of View Horizontal: 42°, Vertical: 28°
Image Sensor Resolution 1,280 x 800 pixels
Minimum Print Contrast 15% minimum reflective difference
Skew/Pitch/Roll Skew: ±60°, Pitch: ±60°, Roll: ±360°
Wireless Connectivity (Cordless) Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles
Data Rate Bluetooth Classic: 3 Mbit/s (2.1 Mbit/s); Low Energy: 1 Mbit/s (0.27 Mbit/s)
Radio Range Class 1: 300 ft. (100 m); Class 2: 30 ft. (10 m)
Decode Ranges
Code 128 (5 mil) 1.3-6.7 in. (3.3-17 cm)
Code 128 (20 mil) 2.8-28.0 in. (7.1-71.1 cm)
Code 128 (40 mil) 1.7-60.0 in. (4.4-152.4 cm)
Datamatrix (7.5 mil) 1.9-6.0 in. (4.8-15.2 cm)
Datamatrix (10 mil) 1.4-8.6 in. (3.5-21.8 cm)
Regulatory Compliance Environmental: RoHS EN 50581: 2012; Electrical Safety: EN 60950-1, UL 60950-1, IEC 60950-1; LED Safety: IEC 62471: 2006 (Ed.1.0); EMI/RFI: EN 55022, EN 55024, EN 61000-6-2; Voltage Fluctuation: EN 61000-3-3; Medical Electrical Equipment: EN 60601-1-2

[/specifications]



Zebra DS3608-HD20003VZWW Barcode Scanner Overview

Unstoppable performance for high density 1D/2D barcodes. As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world's toughest environments - the electronics manufacturing production line.

You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.

And since these scanners also capture standard barcodes in virtually any condition, you get a real value - unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.

  • Connectivity Technology: Cable
  • Scanning Capability: 1D, 2D
  • Barcode Symbology Supported:
    • 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
    • 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  • Image Sensor Type: Imager
  • Form Factor: Handheld
  • Height: 7.3"
  • Width: 3"
  • Depth: 5.2"
  • Weight (Approximate): 10.90 oz

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Connectivity Technology: Cable, Scanning Capability: 1D/2D, Image Sensor Type: Imager


[/shortdesc]

[properties]

Product Name Zebra DS3608-HD Barcode Scanner
Description The Zebra DS3608-HD is an ultra-rugged, corded handheld scanner designed for high-density 1D/2D barcodes. It offers exceptional durability and performance for tough environments such as electronics manufacturing production lines.
Connectivity Technology Cable
Scanning Capability 1D, 2D
Barcode Symbology Supported 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma); 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Image Sensor Type Imager
Form Factor Handheld
Color Industrial Green
Height 7.3" (18.5 cm)
Width 3" (7.6 cm)
Depth 5.2" (13.2 cm)
Weight 10.90 oz (305 g)
Input Voltage Host powered: 4.5 VDC min., 5.5 VDC max.; External power supply: 11.4 VDC min., 12.6 VDC max.
Operating Current 360 mA (RMS typical)
Standby Current 100 mA (RMS typical)
User Indicators Direct decode indicator, LEDs, beeper, vibration

[/properties]

[specifications]

Scans per Full Charge 100,000+
Image Capture Basic
Illumination One (1) 660 nm LED
Aimer 610 nm LED
Imager Field of View Horizontal: 42°, Vertical: 28°
Image Sensor Resolution 1,280 x 800 pixels
Minimum Print Contrast 15% minimum reflective difference
Skew/Pitch/Roll Skew: ±60°, Pitch: ±60°, Roll: ±360°
Wireless Connectivity (Cordless) Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles
Data Rate Bluetooth Classic: 3 Mbit/s (2.1 Mbit/s); Low Energy: 1 Mbit/s (0.27 Mbit/s)
Radio Range Class 1: 300 ft. (100 m); Class 2: 30 ft. (10 m)
Decode Ranges
Code 128 (5 mil) 1.3-6.7 in. (3.3-17 cm)
Code 128 (20 mil) 2.8-28.0 in. (7.1-71.1 cm)
Code 128 (40 mil) 1.7-60.0 in. (4.4-152.4 cm)
Datamatrix (7.5 mil) 1.9-6.0 in. (4.8-15.2 cm)
Datamatrix (10 mil) 1.4-8.6 in. (3.5-21.8 cm)
Regulatory Compliance Environmental: RoHS EN 50581: 2012; Electrical Safety: EN 60950-1, UL 60950-1, IEC 60950-1; LED Safety: IEC 62471: 2006 (Ed.1.0); EMI/RFI: EN 55022, EN 55024, EN 61000-6-2; Voltage Fluctuation: EN 61000-3-3; Medical Electrical Equipment: EN 60601-1-2

[/specifications]



Zebra DS3608-HD20003VZWW Barcode Scanner Overview

Unstoppable performance for high density 1D/2D barcodes. As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world's toughest environments - the electronics manufacturing production line.

You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.

And since these scanners also capture standard barcodes in virtually any condition, you get a real value - unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.

Technical Information
  • Connectivity Technology: Cable
  • Scanning Capability: 1D, 2D
  • Barcode Symbology Supported:
    • 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
    • 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  • Image Sensor Type: Imager
Physical Characteristics
  • Form Factor: Handheld
  • Height: 7.3"
  • Width: 3"
  • Depth: 5.2"
  • Weight (Approximate): 10.90 oz
