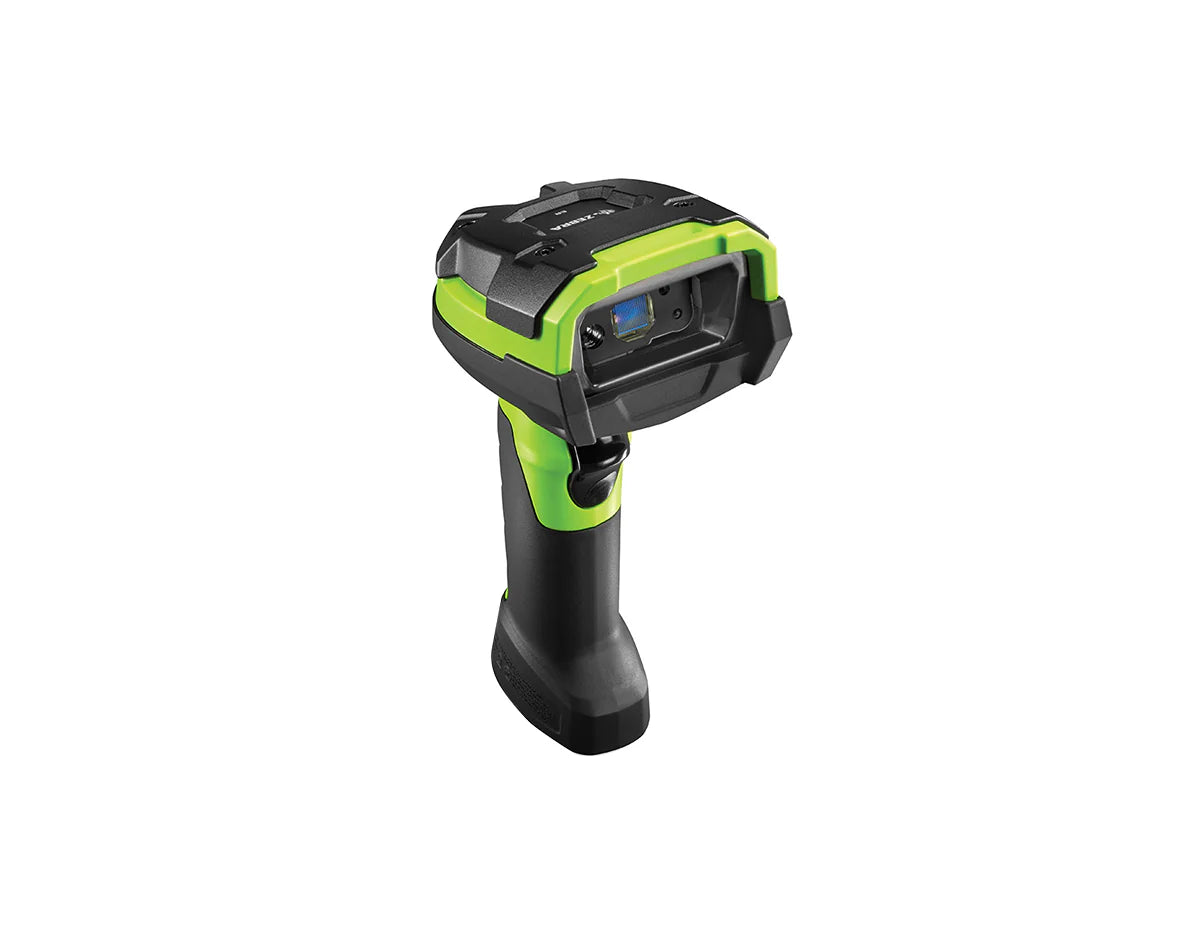

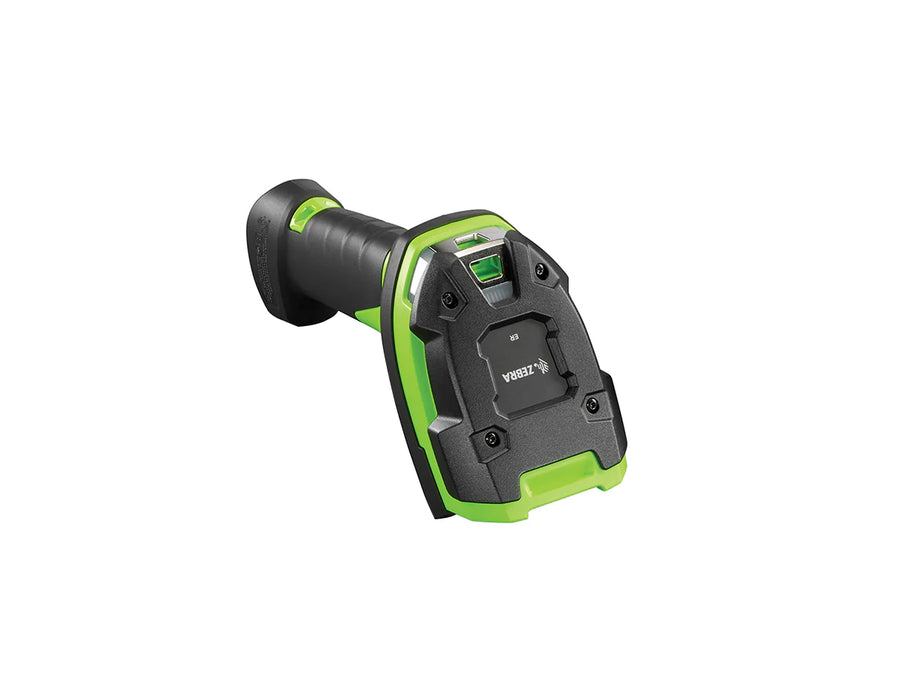

Zebra DS3608-ER Barcode Scanner (DS3608-ER20003VZWW)
Clique ou role para ampliar
Toque ou belisque para ampliar
Zebra DS3608-ER Barcode Scanner (DS3608-ER20003VZWW)
Zebra DS3608-ER Barcode Scanner (DS3608-ER20003VZWW)

Zebra DS3608-ER Barcode Scanner (DS3608-ER20003VZWW)

por Zebra
R$ 7.188,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • 1D/2D, Ultra-Rugged, Extended Range Imager, Zebra DataCapture DNA, IP67 Sealing, Corded

[/shortdesc]

[properties]

Properties DS3608-ER20003VZWW
Description Rugged, Digital Scanner, Extended Range, Corded, Industrial Green, Vibration Motor, FIPS
Product Family ZEBRA 3600 ULTRA-RUGGED SERIES
Product Type Barcode Scanner

[/properties] [specifications]

Specifications DS3608-ER20003VZWW
Scanning
Type Handheld bar code reader
Optical sensor resolution 1280 x 800 (1 Megapixel)
Scanner type 1D/2D
Sensor type Imager
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C., Korean 3 of 5, GS1 DataBar
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39, DotCode
Wavelength 655 nm (Laser Aimer)
Tilt reading angle (Roll) 360°
Pitch reading angle ± 60°
Skew reading angle (Yaw) ± 60°
Ports & interfaces
Connectivity technology Wired
Standard interfaces RS-232, USB, Keyboard wedge, Industrial Ethernet (via protocols)
Performance
International Protection (IP) code IP67
Protection features Dust-resistant, Shock resistant, Water resistant, Spray proof
LED indicators ✓

[/specifications] [accesories]

Accessories
Cables CBA-U46-S07ZAR - 7ft Shielded USB Straight Cable (Series A Connector)
CBA-U47-S15ZAR Zebra 15ft Shielded USB Cable (Series A Connector)
CBA-U45-S15ZAR - 15ft. Shielded USB Straight Cable (Power Plus Connector)
CBA-U44-S15PAR - 15ft. Shielded USB Straight Cable (Series A Connector)
CBA-U43-S07ZAR - 7ft. Shielded USB Straight Cable (Power Plus Connector)
CBA-U42-S07PAR - 7ft. Shielded USB Straight Cable (Power Plus Connector)
CBA-R71-C09ZAR - RS232 Coiled Cable (DB9 Female Connector, 9ft)
CBA-R21-S15PAR - RS232 Straight Cable (DB9 Female Connector, 15ft)
CBA-R07-S07PAR - RS232 Straight Cable (DB9 Female Connector, 7ft)
CBA-M66-S15ZAR - Auto-Host Detect Straight Cable (15ft, 12v)
CBA-M65-S07ZAR - Auto-Host Detect Straight Cable (7ft, 12v)
Auto-Host Detect Straight Cable (Keyboard Wedge, 15ft)
CBA-K63-S07PAR - Auto-Host Detect Cable
CBA-UF2-C12ZAR - Shielded USB Coiled Cable (Series A Locking Connector)
CBA-UF1-S07ZAR - Shielded USB Straight Cable (Series A Connector, 7ft, High Current)
CBA-UF0-S07PAR - Shielded USB Straight Cable (Series A Connector, 7ft, Low Temp)
CBA-RF3-C09ZAR- 9ft RS232 Coiled Cable
CBA-RF2-C09ZAR - Zebra RS232 Coiled Cable (DB9 Female Connector, 9ft, Power Pin 9)
CBA-RF1-C09PAR - RS232 Coiled Cable (DB9 Female Connector, 9ft, Low Temp)
CBA-RF0-S07PAR - RS232 Straight Cable (DB9 Female Connector, 7ft, Requires 12v Power Supply)
CBL-36-452A-01 - Forklift DC Power Supply Adaptor Cable
CBL-DC-451A1-01 - DC Cable for 3600 Series Power Supply
CBL-36-453A-01 - Filter Adapter Cable (DC Power Cord)
Cases/Holsters/Belts 21-52612-01R - Forklift Holder
Miscellaneous 50-15400-031 - Tool Balancer Pulley
BRKT-MM0036W-00 - Vibrating Dampening Mounting Plate
EA3600-T1CP-00 - 3600 Series Ethernet Adapter
Power Supplies PWRS-14000-148R - 100-240 VAC Power Supply
23844-00-00R - AC Line Cord - US
PWRS-14000-252R - DC Low Voltage Power Converter
PWRS-14000-251R - DC High Voltage Power Converter
Zebra Level VI AC/DC Power Supply Brick (PWR-BGA12V50W0WW)
Stands/Holders STND-AS0036-07 - Adjustable Intellistand (Twilight Black)

[/accesories]

The Zebra DS3608-ER Barcode Scanner is engineered explicitly for extended-range 1D/2D barcode scanning, making it an ideal choice for warehouse and manufacturing settings. It is tailored to address the rigorous requirements of these environments, offering exceptional performance to boost operational efficiency. Crafted with materials that are resistant to extreme cold, the DS3608-ER is constructed using specialized plastics, cables, and components that maintain their durability even in freezing conditions, enabling use in freezers and outdoor yards. This corded model ensures continuous operation without the need for battery management.

Quick Specs:

  • 1D/2D Imager
  • Ultra-Rugged / IP67
  • Zebra DataCapture DNA
  • Corded Connectivity
  • Extended Range (ER)

Please see the related tabs for the DS3608-ER20003VZWW properties, specifications and compatible accessories tables.
