[shortdesc]
- 1D/2D, Ultra-Rugged, Vibration motor, Designed to withstand multiple drops at 10.0 ft/3.0m to concrete at room temperature
[/shortdesc]
[properties]
| Properties |
DS3608-SR3U4600VZW |
| Description |

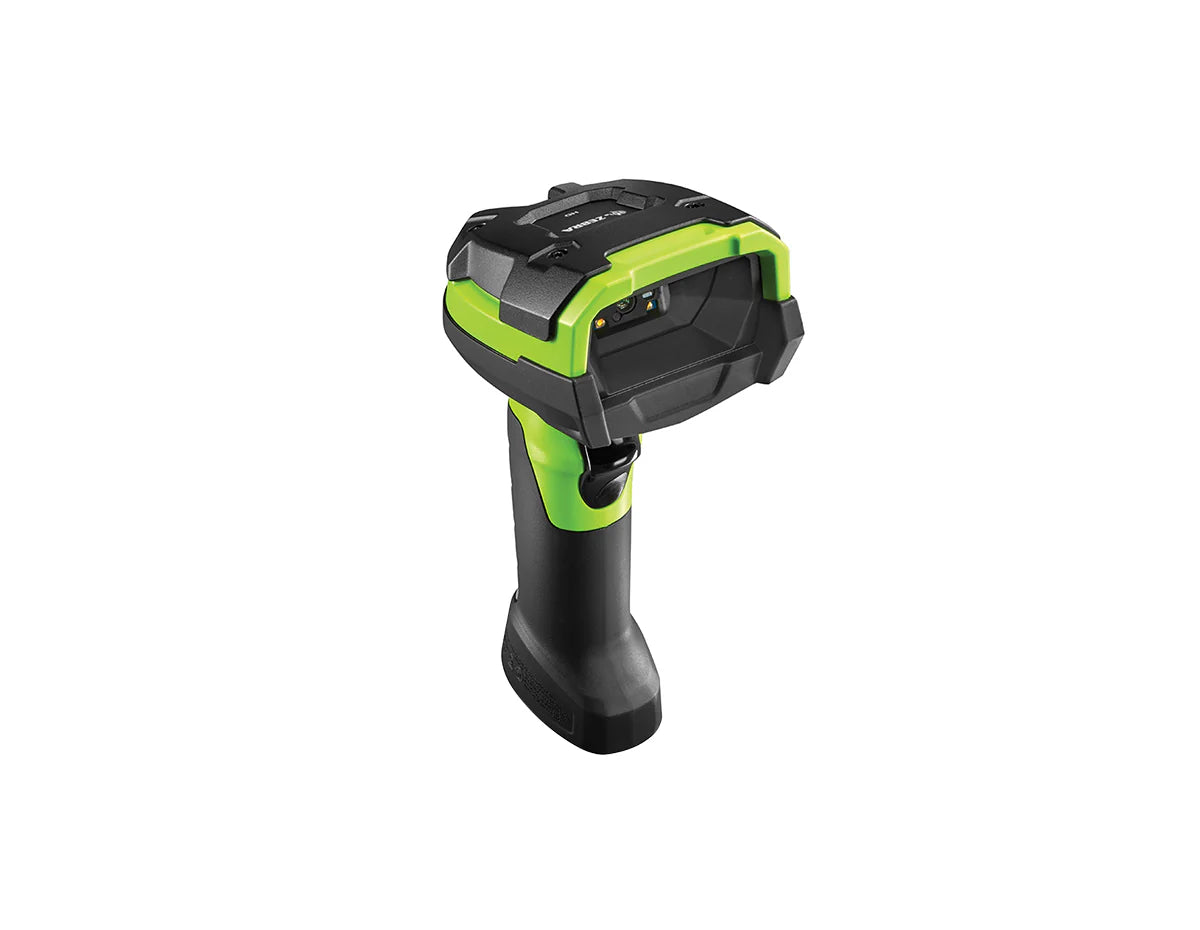

The Zebra DS3608-SR3U4600VZW is an Ultra-Rugged corded barcode scanner kit designed for industrial use, capable of scanning both 1D and 2D barcodes with high durability and easy configuration. |
| Product Family |
Zebra DS3600 Series |
| Product Type |
Ultra-Rugged Corded Barcode Scanner |
[/properties] [specifications]
| Specifications |
DS3608-SR3U4600VZW |
| Technical Information |
| Connectivity Technology |
Cable |
| Scanning Capability |
1D
2D |
| Barcode Symbology Supported |
1D:
Code 39
Code 128
Code 93
Codabar/NW7
Code 11
MSI Plessey
UPC/EAN
I 2 of 5
Korean 3 of 5
GS1 DataBar
Base 32 (Italian Pharma)
2D:
PDF417
Micro PDF417
Composite Codes
TLC-39
Aztec
DataMatrix
MaxiCode
QR Code
Micro QR
Chinese Sensible (Han Xin)
Postal Codes
DotCode |
| Digimarc |
Digital watermark technology |
| IUID Support |
Supports IUID parsing, the ability to read and separate IUID fields per application requirements |
| Image Sensor Type |
Imager |
| Scanner Range |
Standard Range |
| Scanning Distance |
59.06" |
| Cable Type Included |
USB |
| Field of View (Horizontal) |
42° |
| Field of View (Vertical) |
28° |
| Reading Angle (Skew) |
60° |
| Reading Angle (Pitch) |
60° |
| Reading Angle (Roll) |
360° |
| Drop Specification |
Withstands multiple 8.0 ft./2.4 m drops to concrete |
| Minimum Print Contrast |
15% |
| Minimum Element Resolution (DataMatrix) |
7.5 mil |
| Maximum Element Resolution (DataMatrix) |
10 mil |
| Interfaces/Ports |
| Host Interface |
USB |
| Power Description |
| Power Source |
USB |
| Physical Characteristics |
| Form Factor |
Handheld |
| Rugged |
Yes |
| Product Color |
Industrial Green |
| Height |
7.3" |
| Width |
3" |
| Depth |
5.2" |
| Weight (Approximate) |
10.80 oz |
| Miscellaneous |
| Ingress Protection (IP) Rating |
IP67
IP65 |
| Application/Usage |
Industrial
Manufacturing
Warehouse |
| Country of Origin |
China |
| Item Numbers |
GTIN: 0011150529761, 0783555103425
UPC: 011150529761, 783555103425
EAN: 0011150529761, 0783555103425
UNSPSC: 43211701 |
[/specifications] [accesories]
| Service and Accessories for Zebra DS3608 and DS3678 Barcode Scanner |
| BTRY-36IAB0E-00 |
Zebra BTRY-36IAB0E-00 DS3600 / LI3600 3150 mAh Spare Battery |
| STB3678-C100F3WW |
Zebra STB3678-C100F3WW DS3678 / LI3678 Charging and Communication Cradle |
| FLB3678-C100F3WW |
Zebra FLB3678-C100F3WW DS3678 / LI3678 Sealed Charging and Communication Cradle |
| SAC3600-4001CR |
Zebra SAC3600-4001CR DS3600 / LI3600 4 Slot Battery Charger |
| SAC3600-KIT |
Zebra SAC3600-KIT DS3600 / LI3600 4 Slot Battery Charger Kit |
| CBL-DC-451A1-01 |
Zebra CBL-DC-451A1-01 DS3600 DC Line Cord w/ Filter |
| Z1AE-DS3608-1C00 |
Zebra Z1AE-DS3608-1C00 DS3608 1YR OneCare Essential Service |
| Z1AE-DS3608-3C00 |
Zebra Z1AE-DS3608-3C00 DS3608 3YR OneCare Essential Service |
| Z1AE-DS3678-1C00 |
Zebra Z1AE-DS3678-1C00 DS3678 1YR OneCare Essential Service |
| Z1AE-DS3678-2C00 |
Zebra Z1AE-DS3678-2C00 DS3678 2YR OneCare Essential Service |
| Z1AE-DS3678-3C00 |
Zebra Z1AE-DS3678-3C00 DS3678 3YR OneCare Essential Service |
| Z1AE-DS3678-5C00 |
Zebra Z1AE-DS3678-5C00 DS3678 5YR OneCare Essential Service |
[/accesories]
The Zebra DS3608-SR Ultra-Rugged Scanner is a comprehensive solution designed to efficiently capture both 1D and 2D barcodes, particularly in challenging operational environments. Engineered to withstand an 8 ft./2.4 m drop onto concrete, the DS3608-SR boasts the highest drop, tumble, and sealing specifications within its category. This robust scanner is resistant to dust, spray, and water, meeting the IP67 waterproof standard. Equipped with an advanced imager, it can swiftly scan 1D and 2D barcodes presented on screens or printed labels. Additionally, leveraging Zebra's DataCapture DNA technology platform, the scanner incorporates sophisticated firmware, software, utilities, and applications that facilitate seamless organizational deployment and management.
Quick Specs:
- 1D/2D
- Ultra-Rugged
- Vibration motor
- Designed to withstand multiple drops at 10.0 ft./3.0 m to concrete at room temperature
Please see the related tabs for the DS3608-SR3U4600VZW datasheet and compatible accessories.
