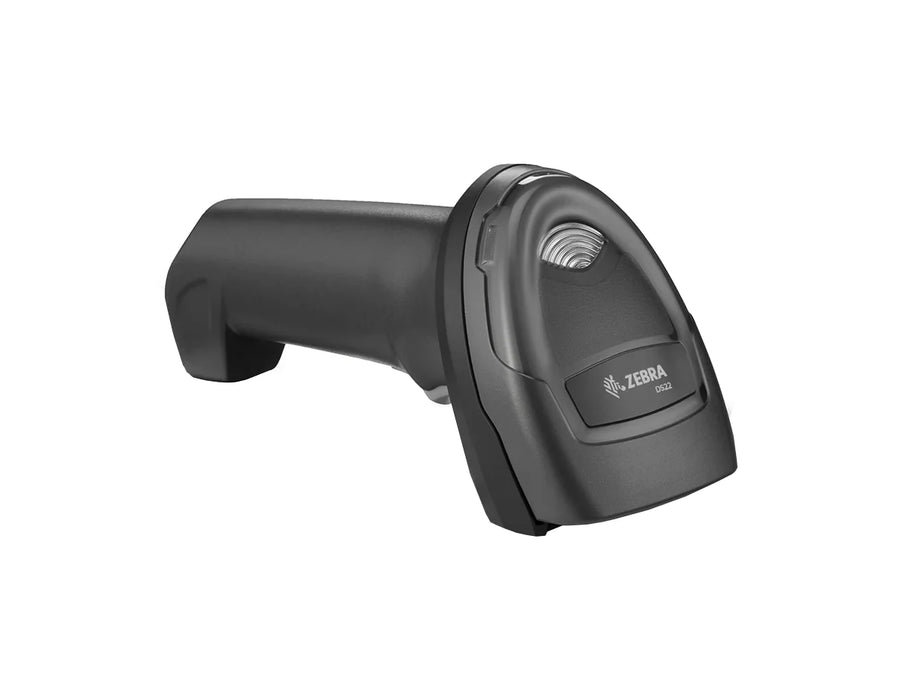

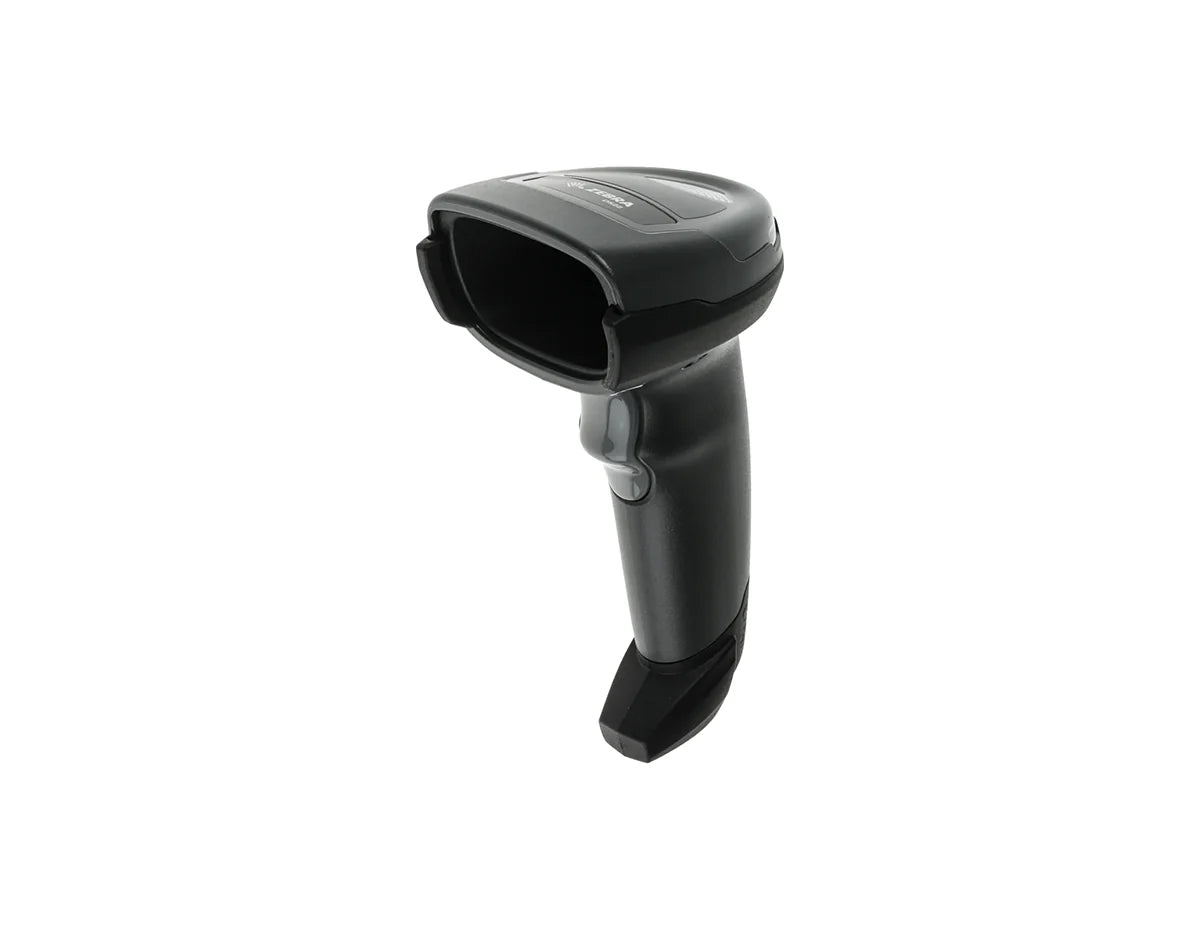

Zebra DS2208 Handheld Scanner (DS2208-SR7U2100SGW)
Clique ou role para ampliar
Toque ou belisque para ampliar
Zebra DS2208 Handheld Scanner (DS2208-SR7U2100SGW)
Zebra DS2208 Handheld Scanner (DS2208-SR7U2100SGW)

Zebra DS2208 Handheld Scanner (DS2208-SR7U2100SGW)

por Zebra
R$ 1.212,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Versatile and user-friendly handheld 2D imager scanner, perfect for retail and hospitality environments.

[/shortdesc]

[properties]

Properties Zebra DS2208 Handheld Scanner (DS2208-SR7U2100SGW)
Description Handheld Standard Range Area Imager Kit with Presentation Cradle and USB Kit
Product Family DS2200 Series Handheld Imagers
Product Type Handheld Scanner

 [/properties] [specifications]

Specifications Zebra DS2208 Handheld Scanner (DS2208-SR7U2100SGW)
Physical Characteristics Corded DS2208:
6.5 in. H x 2.6 in. W x 3.9 in. D 16.5 cm H x 6.6 cm W x 9.9 cm D
Weight

5.7 oz. / 161.6 g
Input Voltage Range DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC
Host Powered; 4.5 to 5.5 VDC External Power Supply
Current Corded DS2208 Operating Current at Nominal Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image)
Corded DS2208 Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)
Color Nova White, Twilight Black
Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support Supports more than 90 international keyboards
User Indicators Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume)
Performance Characteristics
Motion Tolerance (Handheld) Up to 5 in./13 cm per second for 13 mil UPC
Swipe Speed (Hands-Free) Up to 30.0 in./76.2 cm per second for 13 mil UPC
Light Source Aiming Pattern: Linear 624nm Amber LED
Illumination (2) 645nm Super-Red LEDs
Imager Field of View 32.8° H x 24.8° V Nominal
Image Sensor 640 x 480 pixels
Minimum Print Contrast 25% minimum reflective difference
Skew/Pitch/Roll Tolerance (+/- 65°; +/- 65°; 0-360°)
Minimum Element Resolution Code 39 - 4.0 mil; Code 128 - 4.0 mil
Data Matrix - 6.0 mil; QR Code - 6.7 mil
User Environment
Operating Temperature DS2208 Imager: 32.0° to 122.0° F/0.0° to 50.0° C
Storage Temperature (-40.0° to 158.0° F/-40.0° to 70.0° C)
Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Tumble Specification (Note: 1 tumble = 0.5 cycle) Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler
Environmental Sealing IP52
Electrostatic Discharge (ESD) ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity 0 to 10,000 Foot Candles/0 to 107,600 Lux
Radio specifications
Bluetooth Radio Standard Bluetooth Version 4.0 with BLE:
Direct line of sight in open air: Class 2: Minimum 30 ft. (10.0 m) and up to 300 ft. (100.0 m) when paired with CR2278 cradle. Environmental factors may impact results. Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps
Battery
Battery Capacity/ Battery Type

2,400 mAh Li-Ion Battery
Scans Per Battery Charge (Simulated Checkout profile of 10 scans in 10 seconds with a 50 second rest. 3 Refer to ) 110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minute
Operating Time Per Full Charge (Simulated Checkout profile of 10 scans in 10 seconds with a 50 second rest. 3 Refer to ) 84.0 Hours
Charge Time (from Empty) 14 Hour Shift Hours / Full Charge Hours
Standard USB 14 Hour Shift Hours: 4
Full Charge Hours: 17
BC1.2 USB 15 Hour Shift Hours: 1
Full Charge Hours: 5
External 5V Source 15 Hour Shift Hours: 1
Full Charge Hours: 5
Micro USB 15 Hour Shift Hours: 1
Full Charge Hours: 7
BC1.2 Micro USB 15 Hour Shift Hours: 1
Full Charge Hours: 4
Regulatory
Electrical Safety EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07
Environmental RoHS EN 50581
LED Safety IEC 62471
IT Emissions EN 55032 (Class B)
IT Immunity EN 55024
Harmonic Current Emissions EN 61000-3-2
Voltage Fluctuation and Flicker EN 61000-3-3
Radio Frequency Devices 47 CFR Part 15, Subpart B, Class B
Digital Apparatus ICES-003 Issue 6, Class B

 [/specifications] [accesories] [/accesories]

The cost-effective, versatile barcode scanner Zebra DS2208 can swiftly read both 1D and 2D barcodes, including those on traditional paper and plastic labels and smartphone displays. It can efficiently capture items such as customer cards, promotional cards, and vouchers for convenient payment processing, including direct scanning from a customer's smartphone. This feature makes it particularly suitable for use in retail and hospitality settings, even during periods of high demand. Additionally, the DS2208 is equipped with automatic recognition of handheld and presentation modes, activated by placing it in or removing it from the presentation stand.

Quick Specs:

  • Corded operation for reliable power
  • 1D and 2D barcode scanning
  • Easy to deploy and manage
  • Ergonomic design for comfortable use

Please see the related tabs for the DS2208-SR7U2100SGW datasheet and compatible accessories.
