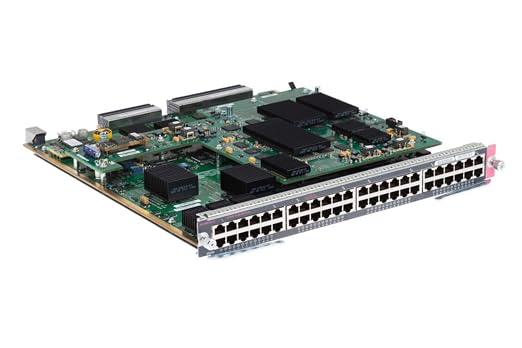

The Cisco WS-X6848-TX-2T Gigabit Ethernet Interface Module is a high-density line card designed for Cisco Catalyst 6500 and Catalyst 6800 Series modular switches. Featuring 48 auto-sensing 10/100/1000 Gigabit Ethernet RJ-45 ports and an integrated Distributed Forwarding Card 4 (DFC4), it delivers wire-speed Layer 2 and Layer 3 forwarding for enterprise campus, aggregation, distribution, and data center networks.
The module provides 48 Gigabit copper Ethernet interfaces, enabling high-density access connectivity for workstations, servers, IP phones, wireless access points, and other Ethernet-enabled devices. Support for 10/100/1000 Mbps auto-negotiation and Auto MDI/MDIX simplifies deployment across a wide range of network environments.
Equipped with an integrated DFC4 forwarding engine, the WS-X6848-TX-2T performs distributed hardware-based packet forwarding directly on the line card, significantly reducing traffic processing demands on the supervisor engine. This architecture improves overall system scalability while delivering wire-speed Layer 2 and Layer 3 switching with ultra-low latency.
The line card supports advanced enterprise networking features including IEEE 802.1Q VLANs, inter-VLAN routing, IPv4, IPv6, hardware-based Access Control Lists (ACLs), Quality of Service (QoS), multicast, EtherChannel, Link Aggregation (LACP), and jumbo frame support, depending on the installed supervisor engine and Cisco IOS software.
Designed for seamless integration into Cisco Catalyst 6500 and Catalyst 6800 Series chassis, the hot-swappable modular design allows installation and replacement with minimal disruption to network operations. The module is optimized for deployment with Supervisor Engine 2T and compatible Catalyst 6800 supervisor engines, providing enterprise-class performance and high availability.
Ideal for enterprise campus networks, distribution layer switching, data center connectivity, network aggregation, high-density access deployments, and service provider infrastructure, the Cisco WS-X6848-TX-2T 48-Port Gigabit Ethernet Line Card with DFC4 delivers scalable wire-speed performance, advanced hardware forwarding, and reliable connectivity for mission-critical networking environments.
Product Specifications – Cisco WS-X6848-TX-2T 48-Port Gigabit Ethernet Interface Module with DFC4 for Catalyst 6500 & 6800 Series
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco WS-X6848-TX-2T 48-Port Gigabit Ethernet Interface Module with DFC4 |
| Manufacturer |
Cisco Systems |
| Part Number |
WS-X6848-TX-2T |
| Product Series |
Cisco Catalyst 6500 Series |
| Compatible Platform |
Cisco Catalyst 6500 & Catalyst 6800 Series Switches |
| Product Type |
Gigabit Ethernet Interface Module / Line Card |
| Port Configuration |
48 × 10/100/1000 Gigabit Ethernet RJ-45 Ports |
| Port Type |
Copper Ethernet (RJ-45) |
| Interface Speed |
10/100/1000 Mbps Auto-Negotiating |
| Media Type |
Category 5e/6/6a Twisted Pair Copper |
| Auto MDI/MDIX |
Supported |
| Switching Architecture |
Distributed Hardware-Based Forwarding |
| Forwarding Engine |
Integrated Distributed Forwarding Card 4 (DFC4) |
| Switching Mode |
Wire-Speed Layer 2 and Layer 3 Forwarding |
| Per-Port Performance |
Non-Blocking Gigabit Ethernet Performance |
| Latency |
Low-Latency Hardware Switching |
| Layer Support |
Layer 2 and Layer 3 |
| VLAN Support |
IEEE 802.1Q VLANs |
| Inter-VLAN Routing |
Supported |
| IPv4 Support |
Yes |
| IPv6 Support |
Yes |
| Routing Protocol Support |
Platform and Supervisor Engine Dependent |
| Quality of Service (QoS) |
Hardware-Based QoS and Traffic Prioritization |
| Multicast Support |
Supported |
| Access Control Lists (ACLs) |
Hardware-Based ACL Processing |
| Security Features |
ACLs, Port Security, 802.1X (Platform Dependent) |
| Jumbo Frame Support |
Supported |
| EtherChannel |
Supported |
| Link Aggregation |
IEEE 802.3ad LACP |
| Fabric Connection |
Cisco Catalyst Switch Fabric Compatible |
| Supervisor Compatibility |
Supervisor 2T and Compatible Catalyst 6800 Supervisor Engines |
| Chassis Compatibility |
Cisco Catalyst 6500 and Catalyst 6800 Series Chassis |
| Hot-Swappable |
Yes |
| Installation Type |
Modular Plug-in Line Card |
| Cooling |
Chassis-Based Cooling |
| Power Source |
Powered by the Host Chassis |
| Form Factor |
Modular Switch Line Card |
| Management |
Managed Through Host Switch Using Cisco IOS |
| Reliability |
Enterprise-Class Carrier-Grade Performance |
| Application |
Enterprise Access, Aggregation and Distribution Networking |
| Condition |
Refurbished |
| Use Cases |
Enterprise Campus Networks, Distribution Layer Switching, Data Center Connectivity, Network Aggregation, High-Density Access Deployments, Service Provider Infrastructure |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. Which switches support the WS-X6848-TX-2T?
The module is compatible with Cisco Catalyst 6500 E-Series and Catalyst 6800 Series modular switches using Supervisor Engine 2T or 2TXL.
Q2. How many Ethernet ports does this module provide?
It features 48 auto-sensing 10/100/1000 Mbps RJ-45 Gigabit Ethernet ports for copper network connectivity.
Q3. What is the purpose of the integrated DFC4?
The DFC4 forwarding engine performs distributed hardware-based packet forwarding, improving performance and reducing traffic processing on the supervisor engine.
Q4. Is this module suitable for enterprise data centers?
Yes. It is designed for enterprise campus, distribution, aggregation, and data center environments requiring high-density Gigabit Ethernet connectivity.
Q5. What type of cabling does this module support?
The module uses standard RJ-45 copper interfaces and supports Category 5, Category 5e, and Category 6 Ethernet cabling for distances up to 100 meters.
