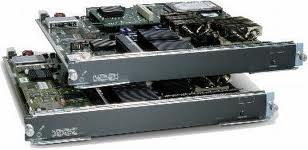

The Cisco WS-SVC-NAM2 Network Analysis Module is an advanced network monitoring and performance analysis solution designed for compatible Cisco Catalyst 6500 Series switches and Cisco 7600 Series routers. Integrated directly into the host chassis, the module provides comprehensive visibility into network traffic, application performance, and voice services, helping administrators identify and resolve performance issues efficiently.
The WS-SVC-NAM2 supports real-time and historical traffic monitoring, enabling IT teams to analyze bandwidth utilization, application behavior, network congestion, and performance trends. By collecting and analyzing data from SPAN, RSPAN, NetFlow, and other supported network sources, the module provides detailed insight into network operations without requiring a separate external monitoring appliance for supported in-chassis functions.
Designed for advanced troubleshooting, the Cisco WS-SVC-NAM2 supports packet capture, protocol analysis, application-level visibility, and performance analytics. These capabilities help network administrators quickly identify bottlenecks, isolate traffic problems, troubleshoot application performance, and optimize network resources.
The module also provides voice and VoIP performance monitoring, helping organizations analyze voice quality and identify network conditions that may affect communication services. This makes it particularly useful for converged networks carrying business-critical data, voice, and application traffic.
An embedded web-based graphical user interface (GUI) simplifies network monitoring, reporting, and troubleshooting by providing centralized access to traffic and performance information. Historical analysis and performance reporting capabilities further help administrators understand network trends and improve infrastructure planning.
Ideal for network performance monitoring, application analysis, traffic troubleshooting, voice quality monitoring, enterprise network management, and service provider visibility, the Cisco WS-SVC-NAM2 Network Analysis Module delivers integrated network intelligence and advanced troubleshooting capabilities for Cisco Catalyst 6500 and Cisco 7600 Series environments.
Product Specifications – Cisco WS-SVC-NAM2 Network Analysis Module for Catalyst 6500 and Cisco 7600 Series
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco WS-SVC-NAM2 Network Analysis Module |
| Manufacturer |
Cisco Systems |
| Part Number |
WS-SVC-NAM2 |
| Product Family |
Cisco Network Analysis Module (NAM) |
| Product Type |
Network Analysis / Performance Monitoring Service Module |
| Primary Function |
Network Traffic Analysis and Performance Monitoring |
| Monitoring Capability |
Traffic, Application and Voice Performance Analysis |
| Network Visibility |
Real-Time and Historical Network Traffic Visibility |
| Application Monitoring |
Application-Level Traffic and Performance Analysis |
| Traffic Monitoring |
Real-Time Traffic Monitoring and Analysis |
| Voice Monitoring |
Voice over IP (VoIP) Performance and Quality Monitoring |
| Voice Quality Analysis |
Supports Voice Performance Troubleshooting and Quality Analysis |
| Data Sources |
SPAN, Remote SPAN (RSPAN), NetFlow and Other Supported Traffic Sources |
| SPAN Analysis |
Supported |
| RSPAN Analysis |
Supported |
| NetFlow Analysis |
Supported |
| Packet Capture |
Supported |
| Packet-Level Analysis |
Supported |
| Protocol Analysis |
Supported |
| Application Visibility |
Deep Application and Traffic Visibility |
| Performance Analytics |
Network and Application Performance Analysis |
| Troubleshooting |
Advanced Network and Application Troubleshooting Tools |
| Bottleneck Detection |
Supports Identification of Network Congestion and Performance Issues |
| Usage Analysis |
Bandwidth and Network Resource Utilization Monitoring |
| Management Interface |
Embedded Web-Based Graphical User Interface (GUI) |
| Remote Management |
Supported through Network Connectivity |
| Reporting |
Performance, Traffic and Application Reporting |
| Historical Analysis |
Supported |
| Alerting |
Performance Threshold and Event Monitoring Capabilities |
| Deployment Type |
Chassis-Based Service Module |
| Installation Type |
Plug-in Network Services Module |
| Compatibility |
Cisco Catalyst 6500 Series Switches and Cisco 7600 Series Routers |
| Host Operating Environment |
Integrated with Compatible Cisco IOS-Based Host Platforms |
| Network Integration |
In-Chassis Network Analysis and Monitoring |
| External Monitoring Appliance Required |
No, for supported in-chassis monitoring functions |
| Management Access |
Web-Based GUI and Supported Network Management Interfaces |
| Security Features |
Controlled Management Access and Platform-Based Security |
| High Availability |
Dependent on Host Chassis and Deployment Architecture |
| Power Source |
Powered by the Host Switch or Router Chassis |
| Cooling |
Provided by the Host Chassis Cooling System |
| Form Factor |
Chassis-Based Plug-in Service Module |
| Application |
Network Monitoring, Application Analysis and Troubleshooting |
| Deployment Environment |
Enterprise and Service Provider Networks |
| Reliability |
Enterprise-Grade |
| Condition |
Refurbished |
| Use Cases |
Network Performance Monitoring, Application Analysis, Traffic Troubleshooting, Voice Quality Monitoring, Enterprise Network Management, Service Provider Visibility |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. Which platforms support the WS-SVC-NAM2?
It is compatible with Cisco Catalyst 6500 Series switches and Cisco 7600 Series routers.
Q2. What types of data can the module analyze?
It analyzes network traffic, application performance, voice quality, NetFlow records, and SPAN traffic for comprehensive visibility.
Q3. Does the module include a management interface?
Yes. It features an embedded web-based GUI for configuration, monitoring, reporting, and troubleshooting.
Q4. Is the WS-SVC-NAM2 suitable for voice monitoring?
Yes. It provides comprehensive voice analytics and quality monitoring to help identify VoIP performance issues.
Q5. What environments is this module best suited for?
It is ideal for enterprise campuses, data centers, WAN edge deployments, and service provider networks requiring advanced traffic visibility and performance analysis.
