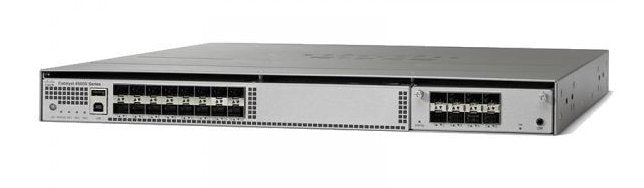

The Cisco Catalyst WS-C4500X-24X-IPB is a compact, high-performance 10 Gigabit Ethernet aggregation switch designed for enterprise campus core, distribution, and branch backbone networks. Part of the proven Cisco Catalyst 4500-X Series, this fixed-configuration switch delivers advanced Layer 2 and Layer 3 switching capabilities in a space-efficient 1RU form factor.
Equipped with 24 × 10G SFP+ ports, the WS-C4500X-24X-IPB provides high-density fiber connectivity for aggregation of access switches, servers, and data center links. Support for Cisco-qualified SFP+ transceivers, including 10GBASE-SR, LR, LRM, and DAC cables, ensures deployment flexibility across short- and long-distance environments. Optional expansion via network modules allows additional 10G capacity as network demands grow.
With a robust 800 Gbps switching capacity and 250 Mpps forwarding rate, the switch delivers low-latency, cut-through performance for bandwidth-intensive applications. The IP Base software image enables essential routing features such as static routing, RIP, OSPF, and limited EIGRP, along with comprehensive Layer 2 services including VLANs, STP/MST, and EtherChannel.
Designed for high availability, the Catalyst 4500-X supports Virtual Switching System (VSS), allowing two switches to operate as a single logical unit for increased resiliency and simplified management. Optional dual redundant hot-swappable power supplies and internal redundant fans further enhance uptime in mission-critical environments.
With integrated security features such as 802.1X authentication, ACLs, DHCP snooping, and Dynamic ARP Inspection, along with centralized management via CLI, SNMP, RMON, Web GUI, and NetFlow Lite, the Cisco WS-C4500X-24X-IPB is an ideal solution for organizations seeking a reliable, scalable, and cost-effective 10G aggregation switch.
Product Specifications – Cisco Catalyst WS-C4500X-24X-IPB 10G Aggregation Switch
CLICK HERE FOR DATA SHEET
| Category |
Specification Details |
| Product Name |
Cisco Catalyst WS-C4500X-24X-IPB |
| Model Number |
WS-C4500X-24X-IPB |
| Product Series |
Cisco Catalyst 4500-X Series |
| Product Type |
Fixed 10-Gigabit Ethernet Aggregation Switch |
| Target Deployment |
Campus Core, Distribution, Branch Backbone |
| Form Factor |
Fixed Configuration, Rack-Mountable |
| Rack Height |
1 Rack Unit (1RU) |
| Total Ports |
24 × 10-Gigabit Ethernet |
| Port Type |
SFP+ |
| Supported Transceivers |
10GBASE-SR, LR, LRM, DAC (Cisco-qualified) |
| Uplink / Expansion Options |
Optional Network Modules (e.g., 8-Port SFP+) |
| Virtual Switching |
Virtual Switching System (VSS) Supported |
| Switching Capacity |
800 Gbps |
| Forwarding Rate |
Up to 250 Million Packets per Second (Mpps) |
| Latency |
Low-Latency Cut-Through Switching |
| Packet Buffer |
16 MB |
| MAC Address Table |
32,000 Entries |
| Operating System |
Cisco IOS |
| Software Image |
IP Base |
| Layer 2 Features |
VLAN, STP, RSTP, MST, EtherChannel |
| Layer 3 Routing |
Static Routing, RIP, OSPF, EIGRP (Limited) |
| Quality of Service (QoS) |
Basic QoS, Traffic Classification |
| Security Features |
802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection |
| Management Interfaces |
CLI, Web GUI |
| Monitoring & Visibility |
SNMP, RMON, NetFlow Lite |
| Power Supply Options |
Dual Redundant Hot-Swappable AC or DC PSUs (Optional) |
| Cooling System |
Fixed Internal Redundant Fans |
| High Availability |
VSS, Redundant Power |
| Typical Power Consumption |
~300 W (Configuration Dependent) |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% (Non-Condensing) |
| Campus Role |
Core / Distribution Switching |
| Enterprise Role |
High-Speed Aggregation |
| Branch Role |
Backbone / Collapsed Core |
| Data Center Role |
Access or Aggregation Layer |
| Compliance |
RoHS Compliant |
| Package Contents |
Switch Chassis (PSUs, Optics, Modules Sold Separately) |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs for WS-C4500X-24X-IPB:
Can I add more ports to this switch?
Yes, optional network modules (e.g., 8-port 10G) can be added to expand connectivity.
Does it support stacking?
Yes, via Virtual Switching System (VSS), it supports logical stacking with another unit.
Is this model fan-less?
No, it includes fixed internal fans with redundant airflow design.
What software image does it come with?
It comes with IP Base software, offering essential Layer 3 features.
Is it suitable for core network roles?
Yes, it is widely used as a distribution or core layer switch in medium to large networks.
