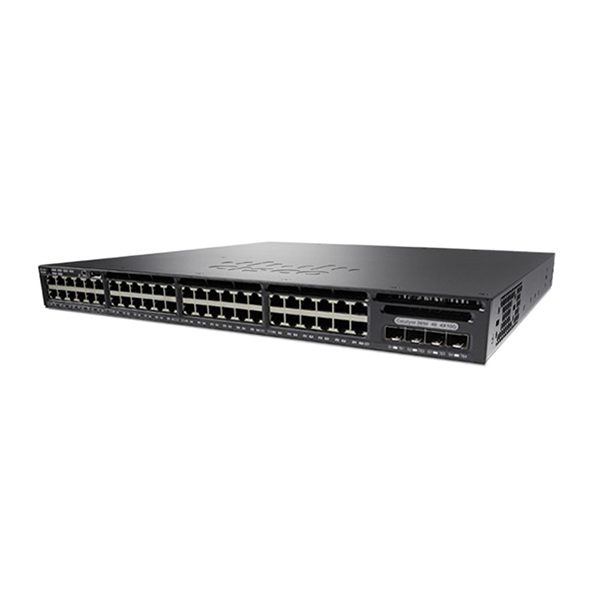

The Cisco WS-C3650-48TD-L Catalyst 3650 Series Managed Switch is an enterprise-class access layer switch designed for campus networks, branch offices, and converged wired-wireless deployments. Featuring 48 Gigabit Ethernet access ports and 2 × 10 Gigabit SFP+ uplink ports, it delivers high-speed connectivity, scalable performance, and simplified network management for modern enterprise environments.
Built on the Cisco Catalyst 3650 Series, the WS-C3650-48TD-L offers up to 176 Gbps switching capacity and 104 Mpps forwarding performance, ensuring wire-speed data transmission for business-critical applications. The 48 auto-sensing 10/100/1000 RJ-45 ports provide reliable connectivity for desktops, IP phones, wireless access points, and other network devices, while the 10G SFP+ uplinks enable high-bandwidth connections to aggregation and core switches. Select platform variants also support 2 × 1G SFP uplink interfaces for additional deployment flexibility.
Running Cisco IOS XE with the LAN Base feature set, the switch delivers secure Layer 2 switching with essential Layer 3 capabilities, making it well suited for enterprise access networks. It supports advanced networking technologies including IPv4, IPv6, IEEE 802.1Q VLANs, limited inter-VLAN routing, EtherChannel, IEEE 802.3ad LACP, Quality of Service (QoS), jumbo frames, and spanning tree protocols to improve network efficiency and performance.
The WS-C3650-48TD-L incorporates Cisco StackWise-160 technology, allowing up to nine compatible switches to operate as a single logical unit with 160 Gbps stacking bandwidth. This architecture simplifies management, enhances scalability, and provides greater network resiliency for expanding enterprise infrastructures.
Security is strengthened through enterprise-grade features such as Access Control Lists (ACLs), IEEE 802.1X authentication, port security, DHCP snooping, and Dynamic ARP Inspection, helping protect network resources from unauthorized access and common Layer 2 attacks.
Designed in a compact 1U rack-mountable form factor with an integrated 250W AC power supply, the Cisco WS-C3650-48TD-L also supports converged wired and wireless access management, enabling centralized control of both wired devices and compatible Cisco wireless access points.
Ideal for enterprise campus access networks, branch office connectivity, Layer 2 switching with basic Layer 3 services, scalable stack deployments, and high-performance access layer networking, the Cisco WS-C3650-48TD-L Catalyst 3650 48-Port Gigabit Managed Switch delivers enterprise-grade reliability, simplified management, and secure connectivity for growing business networks.
Product Specifications - Cisco WS-C3650-48TD-L Catalyst 3650 48-Port Gigabit Managed Switch with 2 x 10G SFP+ Uplinks
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco WS-C3650-48TD-L Catalyst 3650 48-Port Gigabit Managed Switch |
| Manufacturer |
Cisco Systems |
| Part Number |
WS-C3650-48TD-L |
| Product Series |
Cisco Catalyst 3650 Series |
| Product Type |
Managed Ethernet Switch |
| Switch Configuration |
Fixed-Configuration Stackable Access Switch |
| Access Ports |
48 × 10/100/1000 Gigabit Ethernet RJ-45 |
| Uplink Ports |
2 × 10 Gigabit Ethernet SFP+ |
| Additional Uplink Support |
2 × 1 Gigabit SFP (platform variant dependent) |
| Total Port Density |
48 × 1G Access Ports + 2 × 10G SFP+ Uplinks |
| Interface Type |
RJ-45 and SFP+ |
| Software Feature Set |
LAN Base |
| Operating System |
Cisco IOS XE |
| Layer Support |
Layer 2 with Limited Layer 3 Capabilities |
| Switching Capacity |
Up to 176 Gbps |
| Forwarding Rate |
Up to 104 Mpps |
| Stacking Technology |
Cisco StackWise-160 |
| Stacking Bandwidth |
Up to 160 Gbps |
| Maximum Stack Members |
Up to 9 Compatible Switches |
| Converged Access Architecture |
Integrated Wired and Wireless Access |
| Wireless Controller Functionality |
Supported on Compatible Cisco IOS XE Releases |
| IPv4 Support |
Yes |
| IPv6 Support |
Yes |
| VLAN Support |
IEEE 802.1Q VLANs |
| Inter-VLAN Routing |
Supported (LAN Base Feature Set Dependent) |
| Static Routing |
Supported (Limited) |
| Dynamic Routing |
Not Included in LAN Base License |
| Quality of Service (QoS) |
Advanced Hardware-Based QoS |
| Link Aggregation |
EtherChannel / IEEE 802.3ad LACP |
| Spanning Tree Protocol |
STP, RSTP, MSTP |
| Jumbo Frame Support |
Supported |
| Security Features |
ACLs, IEEE 802.1X Authentication, Port Security, DHCP Snooping, Dynamic ARP Inspection |
| Network Access Control |
IEEE 802.1X |
| Power Supply |
250W AC Internal Power Supply |
| Power Redundancy |
Supported with Compatible Redundant Power Options |
| Cooling |
Field-Replaceable Fan Modules |
| Airflow |
Front-to-Back |
| Hot-Swappable Components |
Power Supply and Fan Modules (Model Dependent) |
| Management |
CLI, SNMP, Web UI, Cisco Prime Infrastructure and Cisco DNA Center (Supported Releases) |
| Automation |
Cisco IOS XE Programmability and APIs |
| Form Factor |
1U Rack-Mountable |
| Rack Space |
1 Rack Unit (1RU) |
| Deployment Type |
Enterprise Campus and Branch Access Layer |
| Application |
Layer 2 Access Switching with Basic Layer 3 Services |
| Reliability |
Enterprise-Class |
| Region Variant |
Global |
| Condition |
New / Refurbished / Cisco Certified |
| Use Cases |
Enterprise Campus Access Networks, Branch Office Connectivity, Layer 2 Switching with Basic Layer 3 Features, Scalable Network Expansion with Stacking |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. How many ports does this switch have?
It has 48 Gigabit Ethernet ports and 2 x 10G uplinks.
Q2. Does it support stacking?
Yes, it supports stacking of up to 9 switches.
Q3. What license does this model use?
It comes with the LAN Base license for Layer 2 features.
Q4. Is this suitable for enterprise networks?
Yes, it is designed for enterprise campus and branch deployments.
Q5. Is this model still available?
It is end-of-sale but supported until October 2026.
