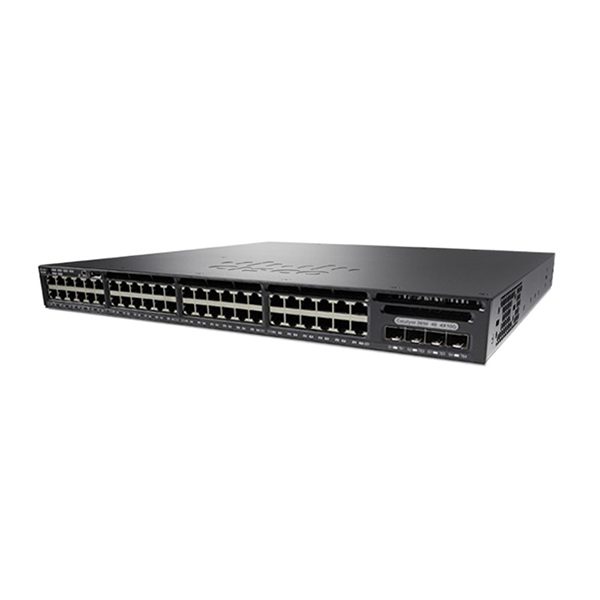

Product Specifications – Cisco WS-C3650-48FS-S Catalyst 3650 48-Port PoE+ Switch
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco WS-C3650-48FS-S Catalyst 3650 Switch |
| Manufacturer |
Cisco Systems |
| Part Number |
WS-C3650-48FS-S |
| Product Series |
Cisco Catalyst 3650 Series |
| Product Type |
Managed Ethernet Switch |
| Port Configuration |
48 × 10/100/1000 Gigabit Ethernet (PoE+) |
| Uplink Ports |
4 × 1 Gigabit Ethernet SFP |
| PoE Type |
Full PoE+ |
| PoE Budget |
Up to ~775W |
| Supported Speeds |
10/100/1000 Mbps |
| Switching Capacity |
Up to 176 Gbps |
| Forwarding Rate |
Up to 130.95 Mpps |
| Stacking Technology |
Cisco StackWise-160 |
| Stack Bandwidth |
Up to 160 Gbps |
| Maximum Stack Members |
Up to 9 switches |
| Layer Support |
Layer 2 and basic Layer 3 |
| Routing Features |
Static routing, RIP, OSPF (limited) |
| License Type |
IP Base |
| Wireless Controller |
Integrated wireless controller functionality |
| Wireless Support |
Converged wired and wireless access |
| QoS Support |
Advanced QoS and traffic prioritization |
| Security Features |
ACLs, 802.1X, TrustSec, MACsec support |
| VLAN Support |
802.1Q VLAN trunking |
| Multicast Support |
IGMP Snooping, PIM |
| Operating System |
Cisco IOS |
| Management |
CLI, SNMP, Cisco Prime, Web UI |
| Automation Support |
Basic programmability and APIs |
| Redundancy |
Redundant power support via StackPower |
| Cooling |
Internal fan system |
| Power Supply |
Internal AC power supply |
| Form Factor |
1 Rack Unit (1RU), rack-mountable |
| Jumbo Frame Support |
Up to 9,000 bytes |
| Deployment Type |
Enterprise access, campus LAN |
| Application |
Wired/wireless convergence, PoE deployments |
| Reliability |
Enterprise-grade continuous operation |
| Condition |
New / Cisco Certified |
| Use Cases |
Campus access, VoIP, wireless APs, surveillance networking |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. Does this switch support PoE on all ports?
Yes, it provides full PoE+ support across all 48 ports.
Q2. What uplink ports are available?
It includes 4 x 1 Gigabit SFP uplink ports.
Q3. What features are included in the IP Base license?
It includes Layer 2 switching and basic Layer 3 routing features.
Q4. Does it support stacking?
Yes, it supports Cisco StackWise-160, allowing up to 9 switches to be stacked.
Q5. Is this suitable for enterprise deployments?
Yes, it is designed for enterprise access layer networks and converged environments.
