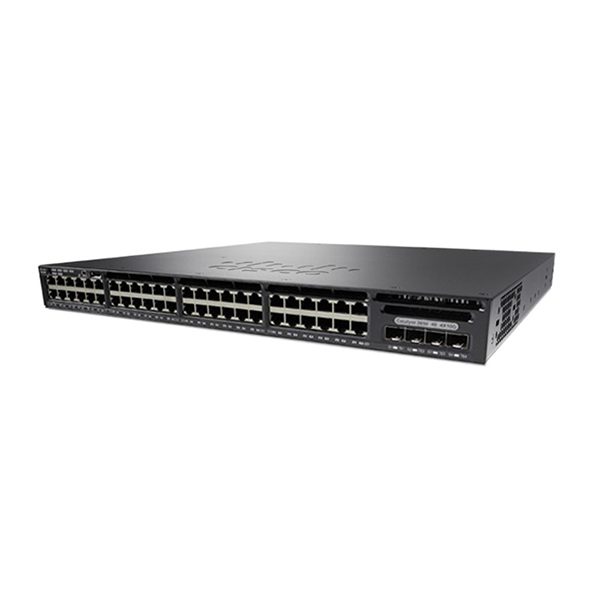

The Cisco Catalyst 3650 WS-C3650-48FQ-S is a powerful enterprise-class switch designed to deliver high-performance connectivity, advanced security, and seamless scalability. With 48 full PoE+ Gigabit Ethernet ports (supporting up to 30W per port) and 4 x 10 Gigabit SFP+ uplink ports, this switch provides the flexibility to power and connect a wide range of devices, including IP phones, wireless access points, and security cameras.
Running on Cisco IOS XE software with the IP Base feature set, the WS-C3650-48FQ-S offers advanced Layer 2 and Layer 3 routing, robust security, and integrated wireless controller functionality—supporting up to 50 access points and 1000 wireless clients per switch. This makes it a future-ready solution for modern enterprises that demand reliability, scalability, and intelligent network management.
Why Choose Cisco WS-C3650-48FQ-S?
The WS-C3650-48FQ-S is part of the Cisco Catalyst 3650 Series, engineered to unify wired and wireless access, simplify network operations, and provide scalable performance for growing businesses. Its combination of PoE+, 10G uplinks, stacking, and integrated wireless control makes it an ideal choice for enterprises, campuses, and organizations looking for a secure, efficient, and future-ready network solution.
👉 Perfect for: Enterprises, campuses, and medium-to-large businesses seeking a reliable Gigabit PoE+ switch with 10G uplinks and wireless integration.
⚡ Upgrade your network performance and empower your digital business with the Cisco Catalyst WS-C3650-48FQ-S.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications – Cisco Catalyst 3650 Series WS-C3650-48FQ-S
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Model Number |
WS-C3650-48FQ-S |
| Description |
48-port full PoE+ Gigabit Ethernet switch with 4 x 10G SFP+ uplinks, enterprise-class stacking, advanced Layer 2/3 routing, and integrated wireless controller. Runs Cisco IOS XE with IP Base license. |
| Ports & Interfaces |
- 48 x 10/100/1000 Mbps RJ-45 Ethernet ports with PoE+ (up to 30W per port)
- 4 x 10 Gigabit Ethernet SFP+ uplink ports
- USB Type-A port
- RJ-45 console port |
| Performance & Switching Capacity |
- Switching capacity: 160 Gbps
- Forwarding rate: up to 130.95 Mpps
- StackWise-160 technology with up to 160 Gbps stack bandwidth
- Integrated wireless controller: supports up to 50 APs and 1000 clients per switch |
| Power & PoE |
- Full IEEE 802.3at PoE+ support (up to 30W per port)
- Total PoE budget: 775W (with optional power supplies)
- Energy Efficient Ethernet (EEE)
- Per-port PoE management |
| Software & Features |
- Cisco IOS XE with IP Base feature set
- Layer 2 and static Layer 3 routing (RIP, OSPF Stub, etc.)
- Basic IPv6 support
- Access Control Lists (ACLs), QoS, and multicast
- Flexible NetFlow
- Cisco TrustSec security
- Integrated wireless controller with mobility and security services |
| Stacking & Redundancy |
- StackWise-160 supports stacking up to 9 switches
- Optional redundant power supply for high availability
- Hot-swappable fan and power supply units |
| Environmental & Compliance |
- Operating temperature: 0°C to 45°C
- Energy-efficient with EEE and low-power idle modes
- RoHS, WEEE, ENERGY STAR compliant |
| Additional Specifications |
- DRAM: 4 GB
- Flash memory: 2 GB
- Dimensions (H x W x D): 1.73 x 17.5 x 17.5 in (4.4 x 44.5 x 44.5 cm)
- Weight: ~17.6 lbs (8 kg) |
FAQs for WS-C3650-48FQ-S:
Does this switch support full PoE+ on all 48 ports?
Yes, the WS-C3650-48FQ-S supports IEEE 802.3at PoE+ on all 48 ports, up to 30W per port, given sufficient power budget.
Are the uplinks 10G capable?
Yes, it features 4 x 10 Gigabit SFP+ uplink ports for high-speed aggregation.
Can this switch act as a wireless LAN controller?
Yes, it includes an integrated wireless controller supporting up to 50 APs and 1000 clients per switch.
What are the stacking capabilities?
It supports Cisco StackWise-160 with up to 9 switches per stack and 160 Gbps stack bandwidth.
Which software license does it come with?
This model runs the IP Base image, offering Layer 2 and limited Layer 3 routing features, plus basic security and QoS.
