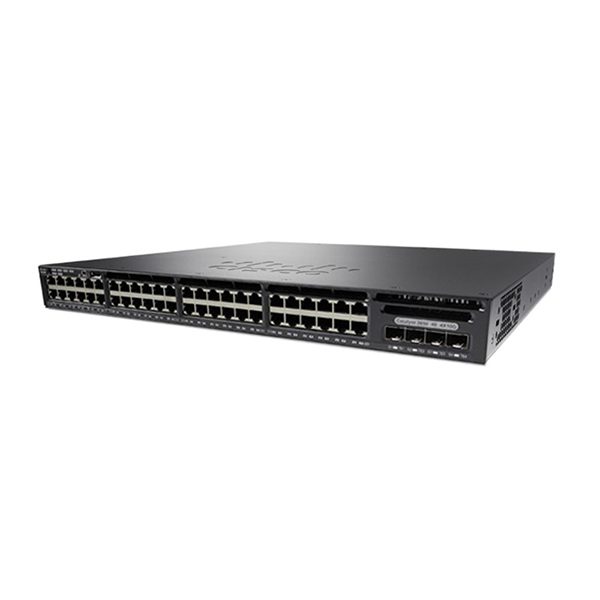

The Cisco WS-C3650-48FD-S Catalyst 3650 Series Switch is a high-performance enterprise access layer switch designed to deliver secure, scalable, and power-efficient connectivity for modern campus and branch networks. Equipped with 48 × Gigabit Ethernet ports with full PoE+ support, it provides both data and power to devices such as IP phones, wireless access points, and surveillance cameras, simplifying infrastructure and reducing deployment costs.
With 2 × 10 Gigabit SFP+ uplink ports, the switch enables high-speed connectivity to aggregation or core layers, ensuring smooth data flow and improved network performance. Powered by the IP Base license, it supports essential Layer 2 and basic Layer 3 features, making it suitable for scalable enterprise environments.
The WS-C3650-48FD-S also features integrated wireless controller capabilities, allowing centralized management of wired and wireless networks from a single platform. This makes it ideal for organizations implementing unified access solutions.
Built on Cisco IOS, the switch provides advanced security features such as 802.1X authentication, ACLs, and TrustSec, along with robust QoS capabilities to prioritize voice and video traffic. It also supports Cisco StackWise-160 technology, enabling multiple switches to operate as a single logical unit for improved scalability and high availability.
Designed for reliability and flexibility, the Cisco WS-C3650-48FD-S is perfect for enterprise campus networks, branch offices, and high-density PoE deployments, offering a powerful combination of performance, power delivery, and simplified management for modern network infrastructures.
Product Specifications – Cisco WS-C3650-48FD-S Catalyst 3650 Series 48-Port PoE+ Switch
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco WS-C3650-48FD-S Catalyst 3650 Series Switch |
| Manufacturer |
Cisco Systems |
| Part Number |
WS-C3650-48FD-S |
| Product Series |
Cisco Catalyst 3650 Series |
| Product Type |
Fixed-Configuration Enterprise Switch |
| Port Configuration |
48 × 10/100/1000 Gigabit Ethernet (RJ-45) |
| PoE Support |
Yes (Full PoE+) |
| PoE Standard |
IEEE 802.3at (PoE+) |
| PoE Power per Port |
Up to 30W per port |
| Total PoE Budget |
Up to ~775W (model dependent) |
| Uplink Ports |
2 × 10 Gigabit Ethernet (SFP+) |
| Supported Speeds |
1GbE (downlink), 10GbE (uplink) |
| Switching Capacity |
Up to ~176 Gbps |
| Forwarding Rate |
Up to ~130 Mpps |
| Layer Support |
Layer 2 and basic Layer 3 |
| License Type |
IP Base |
| Routing Protocols |
Static routing, RIP |
| Wireless Controller |
Integrated wireless LAN controller support |
| Operating System |
Cisco IOS |
| Stacking Support |
Cisco StackWise-160 |
| Stack Bandwidth |
Up to 160 Gbps |
| Stack Size |
Up to 9 switches |
| Management Interfaces |
CLI, SNMP, Web UI |
| Automation Support |
Basic programmability |
| Security Features |
ACLs, 802.1X, TrustSec, DHCP Snooping |
| QoS Support |
Advanced QoS for voice/video |
| Power Supply |
Internal PSU |
| Redundancy |
Optional external RPS support |
| Cooling |
Internal fans |
| Form Factor |
1 Rack Unit (1RU), rack-mountable |
| Dimensions |
Standard 19-inch rack |
| Jumbo Frame Support |
Up to 9,000 bytes |
| Operating Temperature |
0°C to 45°C |
| Deployment Type |
Enterprise access layer, campus networks |
| Application |
Wired and wireless convergence |
| Scalability |
High-density PoE deployments |
| Condition |
New / Cisco Certified |
| Use Cases |
Campus access, VoIP, wireless APs, surveillance systems |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. Does this switch support PoE on all ports?
Yes, it provides full PoE+ support across all 48 ports.
Q2. What uplink options are available?
It includes 2 x 10 Gigabit SFP+ uplink ports.
Q3. What features are included with IP Base license?
It offers Layer 2 and basic Layer 3 features for enterprise networking.
Q4. Can this switch support wireless management?
Yes, it includes integrated wireless controller capabilities.
Q5. Does it support stacking?
Yes, it supports Cisco StackWise-160 for stacking multiple switches.
