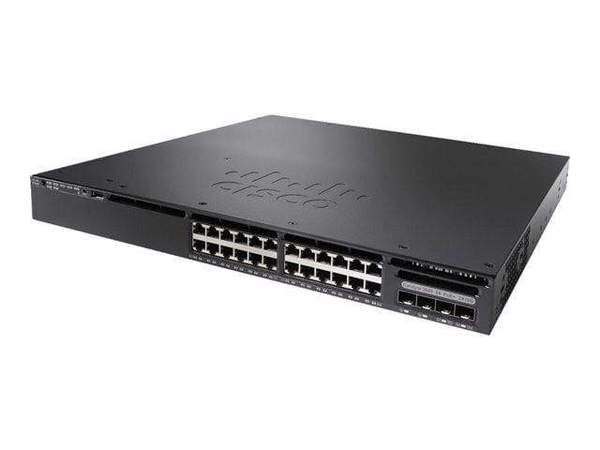

The Cisco WS-C3650-24TD-L Catalyst 3650 Switch is an enterprise-grade managed switch designed for secure, scalable, and high-performance access layer networking. Built for modern campus and branch deployments, it combines reliable Gigabit connectivity, integrated wireless management, and high-speed uplink capabilities in a compact 1U rack-mountable platform.
Featuring 24 Gigabit Ethernet data ports, the switch provides dependable wired connectivity for enterprise users, workstations, and network devices. It also includes 2 × 10 Gigabit SFP+ uplink ports, enabling fast aggregation and seamless integration with distribution and core network layers.
Powered by the Cisco LAN Base license, the WS-C3650-24TD-L delivers advanced Layer 2 switching capabilities, including VLAN support, QoS, and secure traffic management. With a switching capacity of 88 Gbps and forwarding rate of 68.45 Mpps, it ensures smooth and efficient traffic handling across business networks.
The switch supports Cisco StackWise-160, allowing up to 9 switches to operate as a single logical unit, simplifying network management while improving scalability and redundancy. Integrated wireless controller functionality also enables unified management of wired and wireless access environments.
Running on Cisco IOS, the switch includes enterprise security features such as 802.1X authentication, ACLs, TrustSec, and MACsec support, helping organizations maintain secure and reliable LAN infrastructures.
Ideal for enterprise branch offices, campus access networks, secure Layer 2 deployments, and high-speed uplink environments, the Cisco WS-C3650-24TD-L provides reliable performance, simplified management, and scalable connectivity for growing business networks.
Product Specifications – Cisco WS-C3650-24TD-L Catalyst 3650 24-Port Managed Switch
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco WS-C3650-24TD-L Catalyst 3650 Switch |
| Manufacturer |
Cisco Systems |
| Part Number |
WS-C3650-24TD-L |
| Product Series |
Cisco Catalyst 3650 Series |
| Product Type |
Managed Ethernet Switch |
| Port Configuration |
24 × 10/100/1000 Gigabit Ethernet |
| Uplink Ports |
2 × 10 Gigabit Ethernet SFP+ |
| Supported Speeds |
10/100/1000 Mbps, 10GbE uplinks |
| License Type |
LAN Base |
| Layer Support |
Layer 2 |
| Switching Capacity |
88 Gbps |
| Forwarding Rate |
68.45 Mpps |
| Stacking Technology |
Cisco StackWise-160 |
| Stack Bandwidth |
Up to 160 Gbps |
| Maximum Stack Members |
Up to 9 switches |
| Wireless Controller |
Integrated wireless controller functionality |
| Wireless Support |
Converged wired and wireless access |
| QoS Support |
Advanced QoS and traffic prioritization |
| Security Features |
ACLs, 802.1X, TrustSec, MACsec support |
| VLAN Support |
802.1Q VLAN trunking |
| Multicast Support |
IGMP Snooping |
| Routing Features |
Static routing (limited Layer 3 functionality) |
| Operating System |
Cisco IOS |
| Management |
CLI, SNMP, Cisco Prime, Web UI |
| Automation Support |
Basic programmability support |
| Power Supply |
250W AC internal power supply |
| Redundant Power Support |
Expandable for redundancy |
| Cooling |
Internal fan system |
| Form Factor |
1 Rack Unit (1RU), rack-mountable |
| Jumbo Frame Support |
Up to 9,000 bytes |
| Deployment Type |
Enterprise access and branch networks |
| Application |
Layer 2 switching, secure LAN access |
| Reliability |
Enterprise-grade continuous operation |
| Condition |
New / Cisco Certified |
| Use Cases |
Campus access, branch networking, secure LAN infrastructure |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. Does this switch support PoE?
No, this is a data-only model and does not support PoE.
Q2. What uplink ports are available?
It includes 2 x 10 Gigabit SFP+ uplink ports.
Q3. What features come with the LAN Base license?
It provides Layer 2 switching features and basic network management capabilities.
Q4. Can this switch be stacked?
Yes, it supports Cisco StackWise-160 for stacking multiple switches.
Q5. Is this suitable for enterprise environments?
Yes, it is designed for enterprise branch and campus network deployments.
