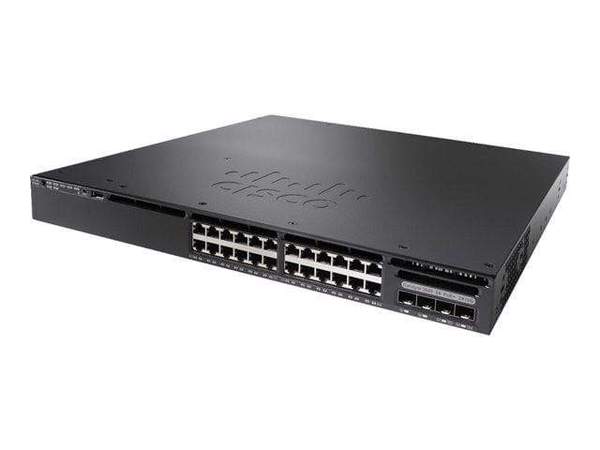

The Cisco WS-C3650-24PD-S Catalyst 3650 Series Switch is a reliable and scalable enterprise access layer switch designed to deliver secure connectivity and efficient power distribution for modern business networks. Equipped with 24 × Gigabit Ethernet ports with PoE+ support, it enables both data and power delivery to devices such as IP phones, wireless access points, and surveillance cameras, simplifying infrastructure and reducing deployment complexity.
With 2 × 10 Gigabit SFP+ uplink ports, the switch provides high-speed connectivity to aggregation and core layers, ensuring smooth data flow and enhanced network performance. Powered by the IP Base license, it supports essential Layer 2 switching and basic Layer 3 routing features, making it suitable for scalable enterprise and campus environments.
The WS-C3650-24PD-S includes integrated wireless controller capabilities, allowing organizations to manage wired and wireless networks from a single platform. This unified approach improves operational efficiency and simplifies network administration.
Running on Cisco IOS, the switch offers advanced security features such as 802.1X authentication, access control lists (ACLs), and TrustSec, along with QoS capabilities to prioritize voice and video traffic. It also supports Cisco StackWise-160 technology, enabling multiple switches to operate as a single logical system for improved scalability, redundancy, and simplified management.
Ideal for enterprise campus networks, branch offices, and high-performance access layer deployments, the Cisco WS-C3650-24PD-S provides a dependable, flexible, and future-ready solution for powering and connecting modern network devices.
Product Specifications - Cisco WS-C3650-24PD-S Catalyst 3650 Series 24-Port PoE+ Switch
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco WS-C3650-24PD-S Catalyst 3650 Series Switch |
| Manufacturer |
Cisco Systems |
| Part Number |
WS-C3650-24PD-S |
| Product Series |
Cisco Catalyst 3650 Series |
| Product Type |
Fixed-Configuration Enterprise Switch |
| Port Configuration |
24 × 10/100/1000 Gigabit Ethernet (RJ-45) |
| PoE Support |
Yes (PoE+) |
| PoE Standard |
IEEE 802.3at (PoE+) |
| PoE Power per Port |
Up to 30W per port |
| Total PoE Budget |
Up to ~390W (model dependent) |
| Uplink Ports |
2 × 10 Gigabit Ethernet (SFP+) |
| Supported Speeds |
1GbE (downlink), 10GbE (uplink) |
| Switching Capacity |
Up to ~88 Gbps |
| Forwarding Rate |
Up to ~65 Mpps |
| Layer Support |
Layer 2 and basic Layer 3 |
| License Type |
IP Base |
| Routing Protocols |
Static routing, RIP |
| Wireless Controller |
Integrated wireless LAN controller support |
| Operating System |
Cisco IOS |
| Stacking Support |
Cisco StackWise-160 |
| Stack Bandwidth |
Up to 160 Gbps |
| Stack Size |
Up to 9 switches |
| Management Interfaces |
CLI, SNMP, Web UI |
| Automation Support |
Basic programmability |
| Security Features |
ACLs, 802.1X, TrustSec, DHCP Snooping |
| QoS Support |
Advanced QoS for voice/video prioritization |
| Power Supply |
Internal PSU |
| Redundancy |
Optional external RPS support |
| Cooling |
Internal fans |
| Form Factor |
1 Rack Unit (1RU), rack-mountable |
| Dimensions |
Standard 19-inch rack |
| Jumbo Frame Support |
Up to 9,000 bytes |
| Operating Temperature |
0°C to 45°C |
| Deployment Type |
Enterprise access layer, campus networks |
| Application |
Wired and wireless convergence |
| Scalability |
High-density PoE deployments |
| Condition |
New / Cisco Certified |
| Use Cases |
Campus access, VoIP, wireless APs, surveillance systems |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. Does this switch support PoE+ on all ports?
Yes, all 24 ports support PoE+ for powering connected devices.
Q2. What uplink ports are included?
It includes 2 x 10 Gigabit SFP+ uplink ports.
Q3. What features are included with the IP Base license?
It provides Layer 2 and basic Layer 3 capabilities for enterprise networking.
Q4. Can it manage wireless access points?
Yes, it includes integrated wireless controller functionality.
Q5. Does it support stacking?
Yes, it supports Cisco StackWise-160 for stacking multiple switches.
