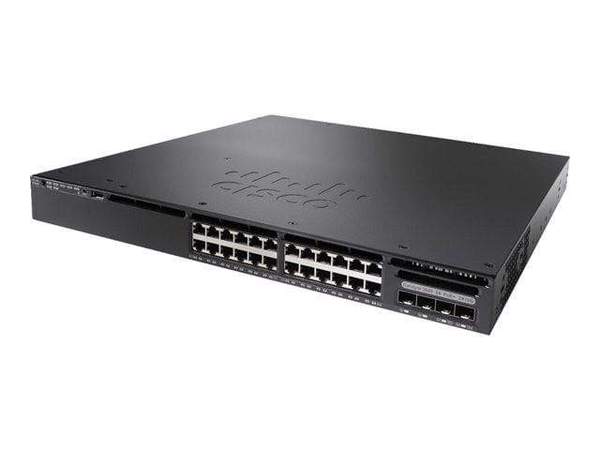

The Cisco WS-C3650-24PD-L Catalyst 3650 Switch is an enterprise-class managed switch designed for secure, scalable, and high-performance access layer networking. Built for branch and campus deployments, it combines advanced Layer 2 switching, integrated wireless management, and PoE+ support in a compact 1U rack-mountable platform.
Featuring 24 Gigabit Ethernet PoE+ ports, the switch delivers reliable connectivity and power for devices such as IP phones, wireless access points, surveillance cameras, and IoT endpoints. With a 390W PoE power budget, it supports efficient deployment of powered network devices without requiring additional power infrastructure.
The switch includes flexible uplink options with 2 × 10G SFP+ uplinks or 4 × 1G SFP uplinks, enabling high-speed aggregation and seamless integration with distribution and core networks. Powered by the Cisco LAN Base license, the WS-C3650-24PD-L provides robust Layer 2 switching features, including VLAN support, QoS, and secure traffic management.
Designed for scalability and resiliency, the switch supports Cisco StackWise-160, allowing up to 9 switches to operate as a single logical unit for simplified management and enhanced redundancy. Integrated wireless controller functionality enables unified wired and wireless network management from a single platform.
Running on Cisco IOS, the switch also includes enterprise-grade security capabilities such as 802.1X authentication, ACLs, TrustSec, and MACsec support, helping organizations maintain secure and reliable LAN infrastructures.
Ideal for enterprise branch offices, campus access networks, PoE-powered deployments, and scalable LAN environments, the Cisco WS-C3650-24PD-L delivers reliable performance, simplified management, and secure connectivity for modern business networks.
Product Specifications – Cisco WS-C3650-24PD-L Catalyst 3650 24-Port PoE+ Managed Switch
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco WS-C3650-24PD-L Catalyst 3650 Switch |
| Manufacturer |
Cisco Systems |
| Part Number |
WS-C3650-24PD-L |
| Product Series |
Cisco Catalyst 3650 Series |
| Product Type |
Managed Ethernet Switch |
| Port Configuration |
24 × 10/100/1000 Gigabit Ethernet (PoE+) |
| Uplink Ports |
2 × 10 Gigabit Ethernet SFP+ or 4 × 1G SFP |
| Supported Speeds |
10/100/1000 Mbps, 1GbE, 10GbE |
| PoE Support |
PoE+ |
| PoE Power Budget |
390W |
| License Type |
LAN Base |
| Layer Support |
Layer 2 |
| Switching Capacity |
88 Gbps |
| Forwarding Rate |
68.45 Mpps |
| Stacking Technology |
Cisco StackWise-160 |
| Stack Bandwidth |
Up to 160 Gbps |
| Maximum Stack Members |
Up to 9 switches |
| Wireless Controller |
Integrated wireless controller functionality |
| Wireless Support |
Converged wired and wireless access |
| QoS Support |
Advanced QoS and traffic prioritization |
| Security Features |
ACLs, 802.1X, TrustSec, MACsec support |
| VLAN Support |
802.1Q VLAN trunking |
| Multicast Support |
IGMP Snooping |
| Routing Features |
Static routing (limited Layer 3 functionality) |
| Operating System |
Cisco IOS |
| Management |
CLI, SNMP, Cisco Prime, Web UI |
| Automation Support |
Basic programmability support |
| Redundancy |
StackPower support (optional) |
| Cooling |
Internal fan system |
| Power Supply |
Internal AC power supply |
| Form Factor |
1 Rack Unit (1RU), rack-mountable |
| Jumbo Frame Support |
Up to 9,000 bytes |
| Deployment Type |
Enterprise campus and branch access |
| Application |
PoE networking, secure LAN access |
| Reliability |
Enterprise-grade continuous operation |
| Condition |
New / Cisco Certified |
| Use Cases |
Campus access, VoIP, wireless APs, surveillance deployments |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. Does this switch support PoE+ on all ports?
Yes, all 24 ports support PoE+ with a total power budget of 390W.
Q2. What uplink options are available?
It supports 2 x 10G SFP+ uplinks or 4 x 1G SFP uplinks.
Q3. What features come with the LAN Base license?
It provides Layer 2 switching features and basic network management capabilities.
Q4. Can this switch be stacked?
Yes, it supports Cisco StackWise-160 for stacking up to 9 switches.
Q5. Is this suitable for enterprise environments?
Yes, it is designed for enterprise branch and campus network deployments.
