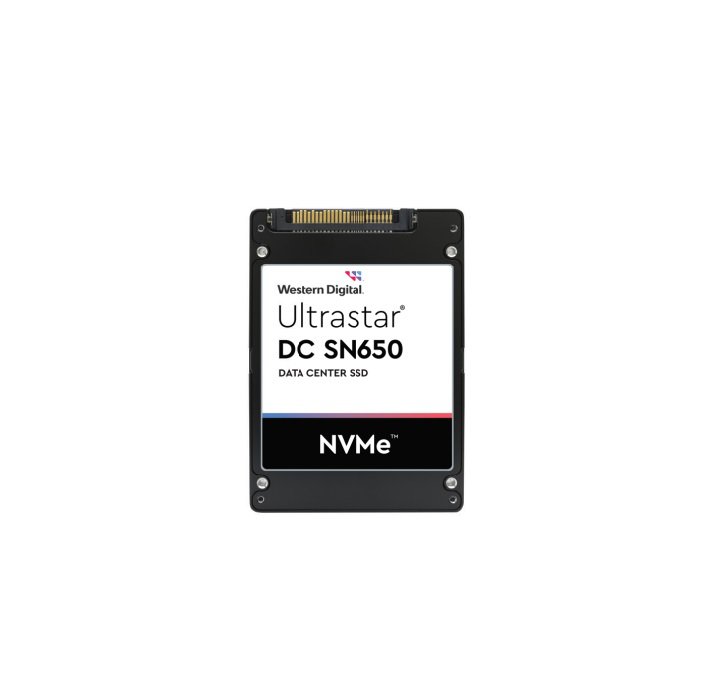

The WUS5EA176ESP5E3 2.5-inch U.3 NVMe SSD manufactured by Western Digital as part of their SN650 Series. It delivers 7.68TB of high-performance storage with PCIe Gen4 interface, 1 DWPD endurance, up to 6,500 MB/s sequential read, 1,900 MB/s sequential write, 705,000/74,000 IOPS random read/write, and enterprise-grade reliability with 2,000,000 hours MTBF.
Specifications
Model Number: WUS5EA176ESP5E3
Brand: Western Digital
Alt Part Number(s): WUS5EA176ESP5E3
Product Type: Solid State Drive
Technical Description
Brand: Western Digital
Model: WUS5EA176ESP5E3
Series: SN650
Storage Capacity: 7.68TB
Endurance: 1 DWPD
Maximum Petabytes Written: 14.0
Security: ISE
Form Factor: U.3 15mm
Interface: PCIe Gen4, NVMe 1.4b
Read Throughput (max MB/s, Seq 128KiB): 6,500 MB/s
Write Throughput (max MB/s, Seq 128KiB): 1,900 MB/s
Read IOPS (max, Rnd 4KiB): 705,000 IOPS
Write IOPS (max, Rnd 4KiB): 74,000 IOPS
Read Latency: 115 µs
Write Latency: 30 µs
MTBF: 2,000,000 Hours
Uncorrectable Bit Error Rate (UBER): 1 in 10^17
Annualized Failure Rate (AFR): 0.44%
Requirement (DC, ±10%): +12V, 3.3V
Operating Modes (typical): 16W, 18W
Idle (Average): 8W
