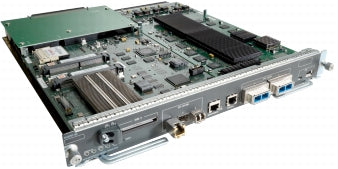

Cisco Catalyst 6500 Series Supervisor Engine 2T XL – VS-S2T-10G-XL
The Cisco Catalyst 6500 Series Supervisor Engine 2T XL (Part Number: VS-S2T-10G-XL) is a high-performance control processor module engineered for enterprise and data center networks that demand exceptional scalability, speed, and advanced feature sets. Delivering up to 2 Terabits of switch fabric capacity and 80 Gbps per slot on all Cisco Catalyst 6500 E-Series chassis, this supervisor engine ensures top-tier performance for mission-critical environments.
Built for versatility, the Supervisor Engine 2T XL supports advanced Layer 2 and Layer 3 services, MPLS VPNs, VPLS, IPv6, and hardware-accelerated Quality of Service (QoS), Access Control Lists (ACLs), and Network Address Translation (NAT). With a forwarding capacity of up to 1,024,000 IPv4 routes, 512,000 IPv6 routes, and 1,024,000 NetFlow entries, it delivers superior routing and traffic management for complex networks.
Equipped with 4 GB RAM, 1 GB Flash memory, multiple expansion slots for SFP and X2 modules, and versatile management interfaces, the VS-S2T-10G-XL offers unmatched flexibility for high-density deployments. Designed for seamless integration with Catalyst 6503-E, 6504-E, 6506-E, 6509-E, 6513-E, and other E-Series chassis, this supervisor engine is ideal for core, distribution, and edge network roles.
Key Features:
-
High-Performance Fabric: 2 Tbps crossbar switching, 80 Gbps per slot.
-
Advanced Protocol Support: MPLS, VPLS, IPv6, NAT, IGMP snooping.
-
Massive Routing Capacity: Supports up to 1.02M IPv4 routes and 512K IPv6 routes.
-
Flexible Connectivity: Multiple SFP and X2 expansion slots, Gigabit management ports, USB interfaces.
-
Scalable for Enterprise & Data Center: Ideal for high-traffic, multi-service networks.
Boost your network’s speed, security, and scalability with the Cisco Catalyst Supervisor Engine 2T XL - a proven choice for high-demand networking environments.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
| Category |
Specification |
| Physical Dimensions & Weight |
|
| Form Factor |
Plug-in module for Cisco Catalyst 6500 Series switches |
| Dimensions (H × W × D) |
1.7 in × 14.4 in × 16 in (4.3 cm × 36.5 cm × 40.6 cm) |
| Weight |
Approx. 8.8 lbs (4 kg) |
| Performance & Capacity |
|
| Device Type |
Control processor for Catalyst 6500 Series |
| Routing Performance |
Up to 720 Mpps for IPv4 routing |
| MAC Address Capacity |
Supports up to 128,000 MAC addresses |
| Switching Fabric Capacity |
80 Gbps per slot, scalable for high-speed networking |
| Memory |
RAM: 2 GB installed (expandable to 4 GB)
Flash: 1 GB |
| Interfaces & Connectivity |
|
| Supported Switch Models |
Compatible with Catalyst 6503-E, 6504-E, 6506-E, 6509-E, 6513-E |
| Network Protocols |
Supports 10 Gigabit Ethernet for high-speed data transfer |
| Management Features |
Integrated Cisco IOS with advanced network control and diagnostic capabilities |
| Power & Environmental |
|
| Power Consumption |
Energy-efficient design |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-40°F to 158°F (-40°C to 70°C) |
| Environmental Compliance |
Meets industry standards for safety and energy efficiency |
FAQs for VS-S2T-10G-XL Cisco Catalyst 6500 Series
1. What is the primary function of the VS-S2T-10G-XL Supervisor Engine?
This Supervisor Engine provides high-performance routing and switching, ensuring scalability, optimized forwarding, and enhanced network efficiency for enterprise environments.
2. What is the maximum routing performance of this module?
The VS-S2T-10G-XL supports up to 720 Mpps for IPv4 routing, making it ideal for high-speed data processing and enterprise networking.
3. Which Cisco switches are compatible with this Supervisor Engine?
It is designed for Cisco Catalyst 6500 Series switches, including 6503-E, 6504-E, 6506-E, 6509-E, and 6513-E.
4. Does this module support 10 Gigabit Ethernet?
Yes, it supports 10 Gigabit Ethernet, ensuring high-speed data transfer and optimized network performance.
5. What is the maximum RAM capacity of this module?
The module comes with 2 GB of installed RAM, but it can be upgraded to 4 GB for enhanced performance.
