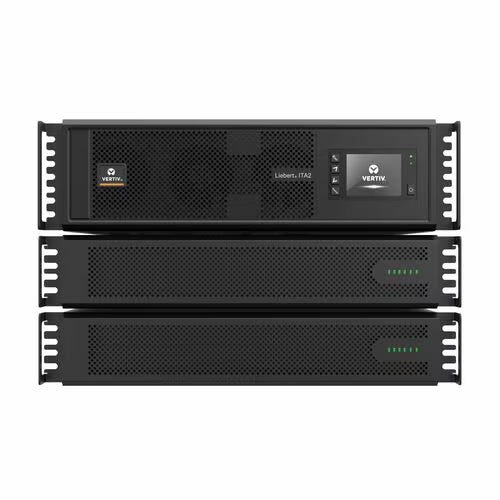

Vertiv ITA2LI-15KRT208V7UN ITA2 Series double conversion online UPS features a 15kVA and 15kW load capacity, lithium-ion battery chemistry, three-phase operation, 208V AC input and output support, sine wave output, 0 ns transfer time, LCD display, SNMP network management, and rack/tower form factor. Designed for critical applications including server rooms, network equipment, medical systems, and security systems, this UPS provides 93% efficiency, surge and lightning protection, hot-swappable maintenance-free batteries, and a maximum operating temperature of 122°F.
Specifications
Model Number: ITA2LI-15KRT208V7UN
Brand: Vertiv
Alt Part Number(s): ITA2LI-15KRT208V7UN
Product Type: UPS
Technical Description
Brand: Vertiv
Model: ITA2LI-15KRT208V7UN
Display: LCD
Maximum Operating Temperature: 122°F (50°C)
USB: Yes
Additional Warranty Information: The UPS comes with a 2-year warranty and the li-ion batteries come with a 5-year warranty.
Package Contents: ITA2 15kVA Rack/Tower UPS; Tower Stand; USB Cable; Quick Installation Guide; Safety Instructions; Adjustable 4-Post Rack Mounting Kit; Copper Jumpers for Single Input Configuration; Shared Battery Connector Cable (for redundancy/paralleling UPS with VRLA Batteries; Vertiv™ Power Insight Management Software (free download from Vertiv.com); IS-Unity DP Communication Card
Certifications & Standards: UL/CSA; UL&cUL (UL 1778 5th Edition, CSA No.22.2 107.3); FCC Part 15, Class A; ANSI C62.41 Category A
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Battery Chemistry: Lithium Ion (Li-Ion)
Number of Batteries: 1
Battery Characteristics: Sealed/Maintenance-free/User Replaceable/Hot-swapable
Replaceable Battery: Yes
DC System Voltage: 384 V DC
Weight (Approximate): 66.10 lb
Form Factor: Rack/Tower
Height: 5.1"
Width: 16.9"
Depth: 25.8"
Network Management: SNMP
Network Interface Card: Intelligent Card Slot
Alarm: Output Overload; Low Battery; Replace Battery
Product Type: Double Conversion Online UPS
Manufacturer Part Number: ITA2LI-15KRT208V7UN
Manufacturer Website Address: http://www.vertiv.com/
Manufacturer: Vertiv
Product Name: ITA2 15kVA Rack/Tower UPS
Product Series: ITA2
Brand Name: Vertiv Liebert
Input Voltage: 208 V AC; 220 V AC
Output Voltage: 208 V AC; 127 V AC; 120 V AC; 220 V AC
Waveform Type: Sine Wave
Input Voltage Range: 96 V AC - 156 V AC; 70 V AC - 96 V AC
Input Frequency: 50 Hz; 60 Hz
Load Capacity (VA): 15 kVA
Load Capacity (Watt): 15 kW
Input Power Factor: 0.99
Output Power Factor: 1
Application/Usage: POS Equipment; Security System; Server Room; Storage System; VoIP; Automated Teller Machine (ATM); Branch Office; CCTV Camera; Cellular System; Office; Network Equipment; Network Closet; Medical; Lab Equipment; ISDN; IT System
Efficiency: 93%
Protection Type: Surge; Lightning
Phase: Three Phase
Transfer Time: 0 ns
Crest Factor: 3:1
