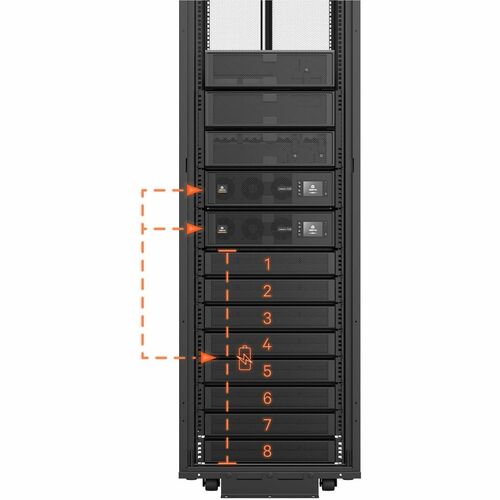

Vertiv ITA2-40KRT400V31URN ITA2 Series 40kVA rack/tower double conversion online UPS features a 40kVA load capacity, 40kW output power, three-phase operation, sine wave output, 96.5% efficiency, 384V DC lead acid battery system with four maintenance-free sealed batteries, LCD display, USB connectivity, and intelligent network management support. Designed for server rooms, storage systems, IT equipment, and critical applications, this UPS includes surge and lightning protection, 0 ns transfer time, ENERGY STAR 2.0 certification, RoHS compliance, and rack/tower form factor with a 5.1 inch height, 16.9 inch width, and 25.8 inch depth.
Specifications
Model Number: ITA2-40KRT400V31URN
Brand: Vertiv
Alt Part Number(s): ITA2-40KRT400V31URN
Product Type: UPS
Technical Description
Brand: Vertiv
Model: ITA2-40KRT400V31URN
Display: LCD
Maximum Operating Temperature: 122°F (50°C)
USB: Yes
Battery Chemistry: Lead Acid
Number of Batteries: 4
Battery Characteristics: Maintenance-free/Sealed
Replaceable Battery: Yes
DC System Voltage: 384 V DC
Package Contents: ITA2 40kVA Rack/Tower UPS; Tower Stand; USB Cable; Quick Installation Guide; Safety Instructions; Adjustable 4-Post Rack Mounting Kit; Copper Jumpers for Single Input Configuration; Shared Battery Connector Cable (for redundancy/paralleling UPS with VRLA Batteries; Vertiv™ Power Insight Management Software (free download from Vertiv.com); IS-Unity DP Communication Card
Certifications & Standards: FCC Part 15, Class A; ANSI C62.41 Category A
Energy Star: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Weight (Approximate): 66.10 lb
Form Factor: Rack/Tower
Height: 5.1"
Width: 16.9"
Depth: 25.8"
Network Management: Intelligent Card Slot; SNMP; Network Interface Card
Alarm: Replace Battery; Low Battery; Output Overload
Product Type: Double Conversion Online UPS
Manufacturer Part Number: ITA2-40KRT400V31URN
Manufacturer Website Address: http://www.vertiv.com/
Manufacturer: Vertiv
Product Name: ITA2 40kVA Rack/Tower UPS
Product Series: ITA2
Brand Name: Vertiv Liebert
Waveform Type: Sine Wave
Input Frequency: 50 Hz; 60 Hz
Load Capacity (VA): 40 kVA
Load Capacity (Watt): 40 kW
Input Power Factor: 0.99
Output Power Factor: 1
Application/Usage: Storage System; Server Room; VoIP; Security System; POS Equipment; Office; Network Equipment; Network Closet; Automated Teller Machine (ATM); Branch Office; CCTV Camera; Cellular System; ISDN; IT System; Lab Equipment; Medical
Efficiency: 96.5%
Protection Type: Surge; Lightning
Phase: Three Phase
Transfer Time: 0 ns
Crest Factor: 3:1
