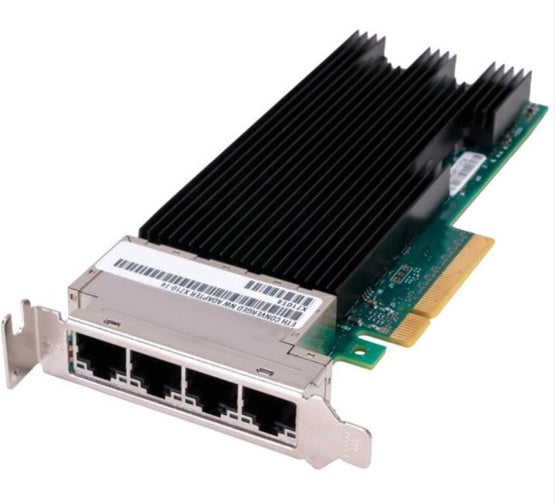

UCSC-PCIE-IQ10GC - Refurbished - Intel X710 Quad Port 10GBase-T NIC

Condition: Refurbished

​The Cisco UCSC-PCIE-IQ10GC is a quad-port 10GBase-T network interface card (NIC) based on the Intel X710 chipset, designed to enhance network performance in Cisco UCS C-Series Rack Servers.​

Key Specifications:

• Chipset: Intel X710​

• Host Interface: PCI Express 3.0 x8​

• Ports: Four RJ-45 connectors supporting 10GBase-T​

• Data Transfer Rate: Up to 10 Gbps per port​

• Form Factor: Plug-in card​

• Supported Network Standards: IEEE 802.3an (10GBASE-T), IEEE 802.3ae​

• Advanced Features:

  • Virtualization enhancements including VMDq and SR-IOV​

  • Traffic class separation with VLAN support​

  • IEEE 802.1Q VLAN tagging​

  • Link aggregation and load balancing​

  • IPv4 and IPv6 offloads​

  • Quality of Service (QoS) capabilities​

Compatibility:

This NIC is compatible with various Cisco UCS C-Series Rack Servers, including:​

• UCS C220 M5​

• UCS C240 M5

• UCS C480 M5​

Environmental Requirements:

• Operating Temperature: 0°C to 55°C (32°F to 131°F)​

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)​

• Humidity: 5% to 95% non-condensing​

This adapter is optimized for high-density, high-bandwidth server environments, making it suitable for applications such as virtualization, cloud services, and large-scale data processing.
