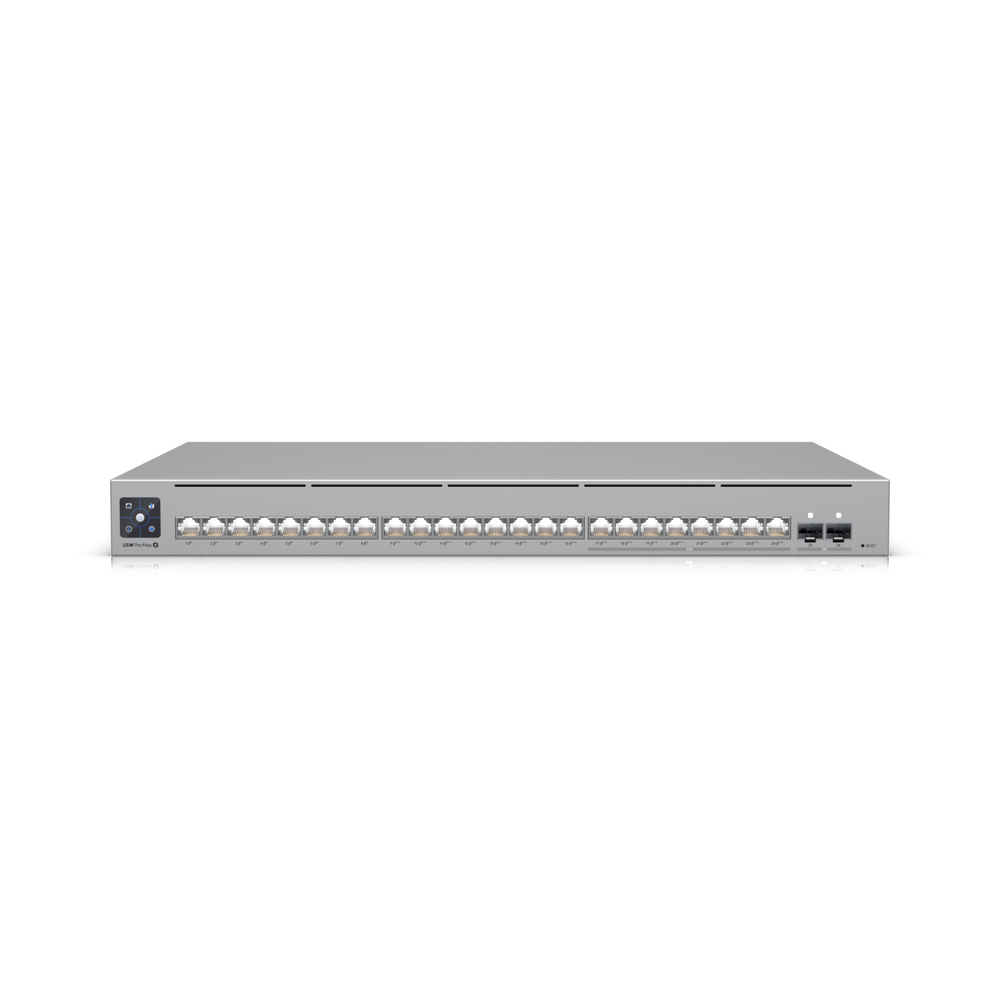

Ubiquiti USW-PRO-MAX-24-POE UniFi Switch 24xGE POE 2x10G SFP+
Ubiquiti USW-PRO-MAX-24-POE UniFi Switch 24xGE POE 2x10G SFP+

Ubiquiti USW-PRO-MAX-24-POE UniFi Switch 24xGE POE 2x10G SFP+

por Ubiquiti
R$ 9.960,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Ubiquiti USW-PRO-MAX-24-POE is a 24-port Layer 3 UniFi switch featuring PoE++ support, high-speed 2.5GbE ports, and 10G SFP+ uplinks, optimized for enterprise networking

[/shortdesc]

[properties]

Property
Model USW-Pro-Max-24-PoE
Product Type 24-port, Layer 3 Etherlighting™ switch with PoE++ capability
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 5.1 kg (11.3 lb); With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material SGCC steel
Form Factor Rack mount (1U)
Etherlighting™ Yes
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% noncondensing
Certifications CE, FCC, IC

[/properties]

[specifications]

Specification
Port Layout - 16 x 1 GbE RJ45 (8 PoE+; 8 PoE++)
- 8 x 2.5 GbE RJ45 (All PoE++)
- 2 x 10G SFP+
Total Non-Blocking Throughput 56 Gbps
Switching Capacity 112 Gbps
Forwarding Rate 83 Mpps
Supported VLANs 1
MAC Address Table Size 16
L3 Table Size (ARP Entries) 6
Packet Buffer Size 1.5 MB
PoE Ports - 8 x PoE+
- 16 x PoE++
Max. PoE Wattage per Port - PoE: 15.4W
- PoE+: 32W
- PoE++: 64W
Total Available PoE 400W
Max. Power Consumption - 50W (Excluding PoE Output)
- 450W (Including PoE Output)
Power Method - Universal input, 100—240V AC, 50/60 Hz
- USP RPS DC input
Power Supply AC/DC, internal, 550W
Supported Voltage Range 100—240V AC
Heat Dissipation 170.6 BTU/hr (Excluding PoE Output)
LCM Display 1.3" touchscreen



[/specifications]

Ubiquiti USW-PRO-MAX-24-POE UniFi Switch 24xGE POE 2x10G SFP+

The Ubiquiti USW-PRO-MAX-24-POE is a high-performance Layer 3 UniFi switch designed for businesses and enterprise environments requiring advanced networking features and PoE++ support. Equipped with 24 RJ45 ports, including 16 PoE++ and 8 PoE+ ports, this switch delivers a total PoE budget of 400W. Additionally, it features 8 x 2.5GbE RJ45 ports and 2 x 10G SFP+ uplinks for ultra-fast connectivity. With a rack-mountable 1U form factor, Etherlighting™ technology, and advanced security protocols, the USW-PRO-MAX-24-POE ensures seamless network performance and management.

  • Enterprise-Grade Networking: 24 RJ45 ports, including 16 PoE++ and 8 PoE+ ports.
  • High-Speed Uplinks: 8 x 2.5GbE RJ45 ports and 2 x 10G SFP+ uplinks for high-bandwidth applications.
  • Powerful PoE Support: PoE+ (32W per port) and PoE++ (64W per port) with a total power budget of 400W.
  • Advanced Layer 3 Features: Supports DHCP server, DHCP relay, inter-VLAN routing, and static routing.
  • Etherlighting™ Technology: Provides visual port status indication for easy diagnostics.
  • Comprehensive Security: 802.1X authentication, DHCP snooping, MAC-based ACLs, and port isolation.
  • Optimized for Audio/Video Streaming: Features QoS (DSCP), IGMP snooping, Pro AV profiles, and multicast control.
  • Compact & Efficient: 1U rack-mountable design with an LCM touchscreen display.
  • Switching Capacity: 112 Gbps
  • Total Non-Blocking Throughput: 56 Gbps
  • Forwarding Rate: 83 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table: 16,000 entries
  • Layer 3 Features: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
  • Layer 2 Features: LACP, STP, RSTP, IGMP Snooping, QoS, Port Mirroring, Jumbo Frames
  • PoE Ports: 16 PoE++ ports, 8 PoE+ ports
  • PoE Power Budget: 400W
  • Power Consumption: 50W (excluding PoE), 450W (including PoE)
  • Power Supply: Internal AC/DC, 550W
  • Form Factor: Rack mount (1U)
  • LCM Display: 1.3" touchscreen
  • Operating Temperature: -5°C to 40°C (23°F to 104°F)
  • Operating Humidity: 10% to 90% non-condensing
  • Certifications: CE, FCC, IC
  • Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
  • Weight: 5.1 kg (11.3 lb) without brackets, 5.2 kg (11.5 lb) with brackets

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Ubiquiti USW-PRO-MAX-24-POE is a 24-port Layer 3 UniFi switch featuring PoE++ support, high-speed 2.5GbE ports, and 10G SFP+ uplinks, optimized for enterprise networking

[/shortdesc]

[properties]

Property
Model USW-Pro-Max-24-PoE
Product Type 24-port, Layer 3 Etherlighting™ switch with PoE++ capability
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 5.1 kg (11.3 lb); With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material SGCC steel
Form Factor Rack mount (1U)
Etherlighting™ Yes
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% noncondensing
Certifications CE, FCC, IC

[/properties]

[specifications]

Specification
Port Layout - 16 x 1 GbE RJ45 (8 PoE+; 8 PoE++)
- 8 x 2.5 GbE RJ45 (All PoE++)
- 2 x 10G SFP+
Total Non-Blocking Throughput 56 Gbps
Switching Capacity 112 Gbps
Forwarding Rate 83 Mpps
Supported VLANs 1
MAC Address Table Size 16
L3 Table Size (ARP Entries) 6
Packet Buffer Size 1.5 MB
PoE Ports - 8 x PoE+
- 16 x PoE++
Max. PoE Wattage per Port - PoE: 15.4W
- PoE+: 32W
- PoE++: 64W
Total Available PoE 400W
Max. Power Consumption - 50W (Excluding PoE Output)
- 450W (Including PoE Output)
Power Method - Universal input, 100—240V AC, 50/60 Hz
- USP RPS DC input
Power Supply AC/DC, internal, 550W
Supported Voltage Range 100—240V AC
Heat Dissipation 170.6 BTU/hr (Excluding PoE Output)
LCM Display 1.3" touchscreen



[/specifications]

Ubiquiti USW-PRO-MAX-24-POE UniFi Switch 24xGE POE 2x10G SFP+

The Ubiquiti USW-PRO-MAX-24-POE is a high-performance Layer 3 UniFi switch designed for businesses and enterprise environments requiring advanced networking features and PoE++ support. Equipped with 24 RJ45 ports, including 16 PoE++ and 8 PoE+ ports, this switch delivers a total PoE budget of 400W. Additionally, it features 8 x 2.5GbE RJ45 ports and 2 x 10G SFP+ uplinks for ultra-fast connectivity. With a rack-mountable 1U form factor, Etherlighting™ technology, and advanced security protocols, the USW-PRO-MAX-24-POE ensures seamless network performance and management.

Key Features:
  • Enterprise-Grade Networking: 24 RJ45 ports, including 16 PoE++ and 8 PoE+ ports.
  • High-Speed Uplinks: 8 x 2.5GbE RJ45 ports and 2 x 10G SFP+ uplinks for high-bandwidth applications.
  • Powerful PoE Support: PoE+ (32W per port) and PoE++ (64W per port) with a total power budget of 400W.
  • Advanced Layer 3 Features: Supports DHCP server, DHCP relay, inter-VLAN routing, and static routing.
  • Etherlighting™ Technology: Provides visual port status indication for easy diagnostics.
  • Comprehensive Security: 802.1X authentication, DHCP snooping, MAC-based ACLs, and port isolation.
  • Optimized for Audio/Video Streaming: Features QoS (DSCP), IGMP snooping, Pro AV profiles, and multicast control.
  • Compact & Efficient: 1U rack-mountable design with an LCM touchscreen display.
Technical Specifications:
  • Switching Capacity: 112 Gbps
  • Total Non-Blocking Throughput: 56 Gbps
  • Forwarding Rate: 83 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table: 16,000 entries
  • Layer 3 Features: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
  • Layer 2 Features: LACP, STP, RSTP, IGMP Snooping, QoS, Port Mirroring, Jumbo Frames
  • PoE Ports: 16 PoE++ ports, 8 PoE+ ports
  • PoE Power Budget: 400W
  • Power Consumption: 50W (excluding PoE), 450W (including PoE)
  • Power Supply: Internal AC/DC, 550W
  • Form Factor: Rack mount (1U)
  • LCM Display: 1.3" touchscreen
  • Operating Temperature: -5°C to 40°C (23°F to 104°F)
  • Operating Humidity: 10% to 90% non-condensing
  • Certifications: CE, FCC, IC
  • Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
  • Weight: 5.1 kg (11.3 lb) without brackets, 5.2 kg (11.5 lb) with brackets
