Ubiquiti USW-ENTERPRISE-8-POE Switch Layer 3, PoE with (8) 2.5GbE, 802

[shortdesc]8× 2.5 GbE PoE+ ports, 2× 10G SFP+ uplinks, 120W PoE budget, 80 Gbps switching capacity, Layer 3 switching, 1.3-inch touchscreen[/shortdesc]

[properties]

Brand	Ubiquiti
Model	USW-Enterprise-8-PoE
SKU	USW-Enterprise-8-PoE
Product Type	8-Port 2.5GbE Layer 3 PoE+ Managed Switch
Series	UniFi Network
Port Count	8 RJ45 ports; 2 SFP+ ports
Interface	(8) 1/2.5 GbE RJ45; (2) 1/10 Gbps SFP+
PoE Support	PoE/PoE+
Power	120W Max PoE power
Dimensions	200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight	2.4 kg (5.29 lb)
Material	Polycarbonate
Operating Temperature	-5 to 45°C (23 to 113°F)

[/properties]

[specifications]

Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Total Non-Blocking Throughput	40 Gbps
Switching Capacity	80 Gbps
Forwarding Rate	59.52 Mpps
Max PoE Power	120W
Power Method	(1) 100-240V AC, 2A Max., 50/60 Hz, Universal Input
Power Supply	AC/DC, Internal, 150W
Management Interface	Ethernet In-Band
Networking Interface	(8) 1/2.5 GbE RJ45
SFP+ Interface	(2) 1/10 Gbps SFP+
PoE Interface	(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage Per Port by PSE	32W
Voltage Range PoE Mode	44-57V
Voltage Range PoE+ Mode	50-57V
LCM Display	(1) 1.3" Touchscreen
ESD/EMP Protection	Air: ± 16 kV; Contact: ± 12 kV
Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Ethernet LED	White: Link or activity
SFP+ LED	White: Link or activity

[/specifications]

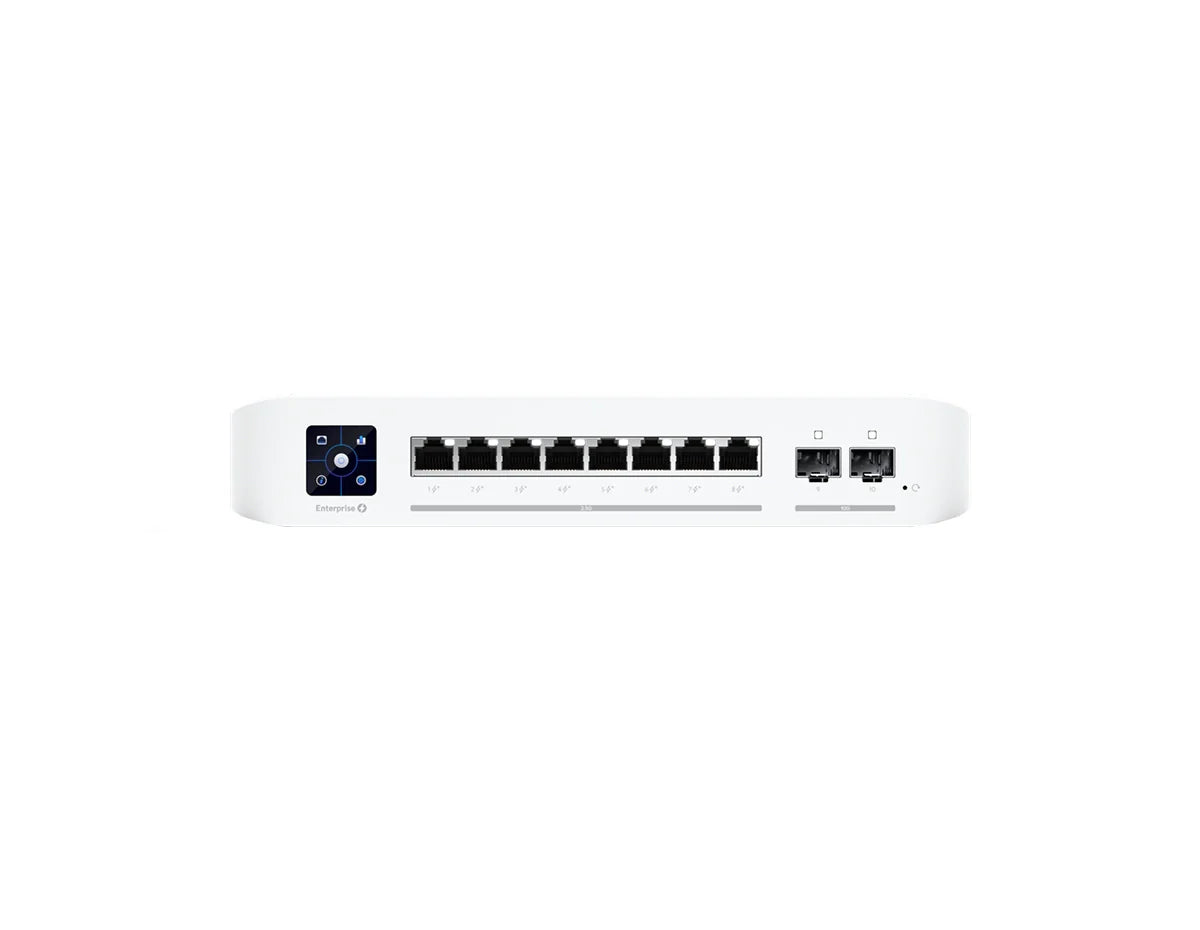

The Ubiquiti UniFi Enterprise 8 PoE, model USW-Enterprise-8-PoE, is a compact desktop and wall-mountable switch designed for multi-gigabit network access and PoE-powered device connectivity. It provides eight RJ45 ports supporting 2.5G, 1G, and 100M Ethernet, with PoE+ available across all eight ports.

Two 10G SFP+ interfaces provide high-speed uplink connectivity for aggregation switches, gateways, servers, and other compatible network infrastructure. With 80 Gbps switching capacity, 40 Gbps non-blocking throughput, and Layer 3 functionality, the switch supports demanding business networks while maintaining a space-efficient, flexible form factor.

• Eight 2.5 GbE RJ45 ports with PoE+ support for connected network devices
• Two 10G SFP+ ports for high-bandwidth uplinks and network expansion
• 120W total PoE availability with up to 32W per PoE+ port
• Layer 3 support with inter-VLAN routing, static routing, and DHCP server functionality
• Integrated 1.3-inch touchscreen for real-time device status and AR switch management

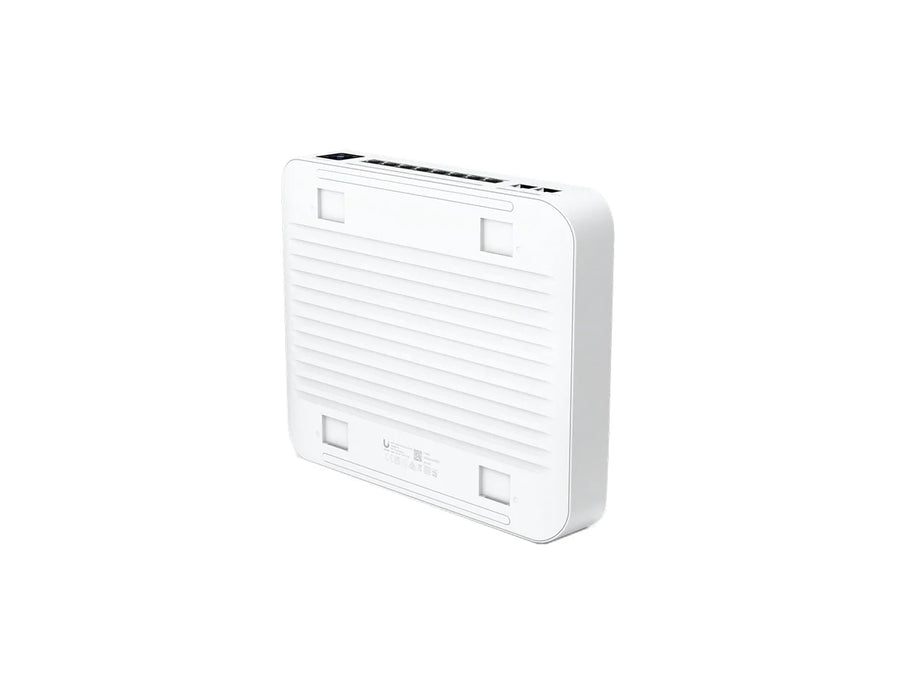

• Flexible deployment options as a desktop device or mounted via the included wall-mount kit

• Multi-gigabit access point deployments
• PoE-powered surveillance and network device installations
• Small business and enterprise edge switching
• VLAN-segmented office networks
• Compact desktop or wall-mounted network infrastructure

• Model: USW-Enterprise-8-PoE
• RJ45 Interfaces: 8× 2.5G/1G/100M Ethernet
• SFP+ Interfaces: 2× 10G/1G SFP+
• PoE Ports: 8× PoE+
• Total PoE Availability: 120W
• Maximum PoE+ Output per Port: 32W
• Switching Capacity: 80 Gbps
• Non-Blocking Throughput: 40 Gbps
• Forwarding Rate: 59.52 Mpps
• Dimensions: 200 × 248 × 44 mm

Choose the USW-Enterprise-8-PoE for compact multi-gigabit access switching, PoE+ device connectivity, Layer 3 networking, and high-speed 10G uplinks.
