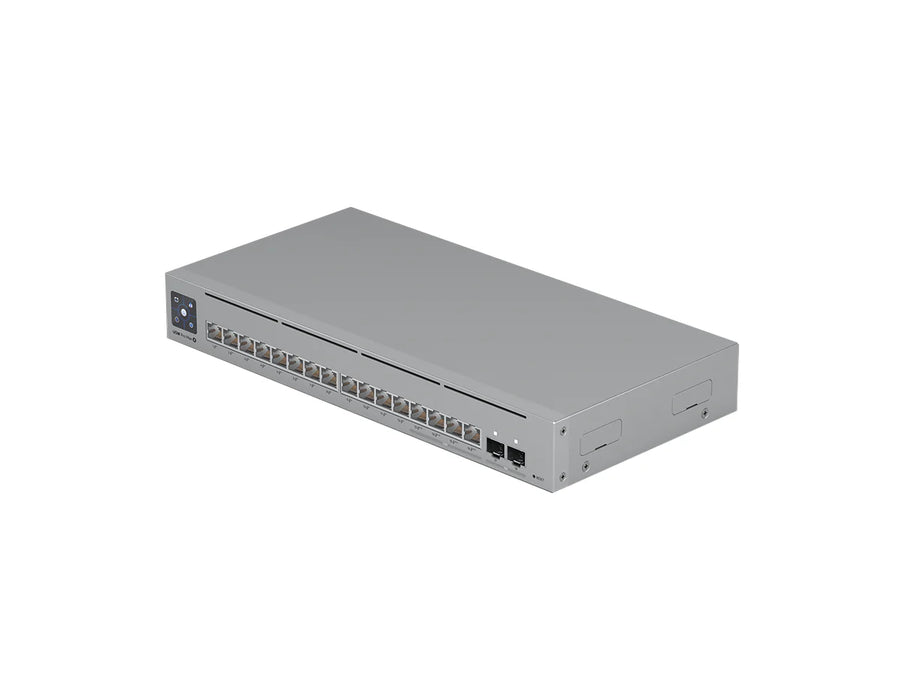

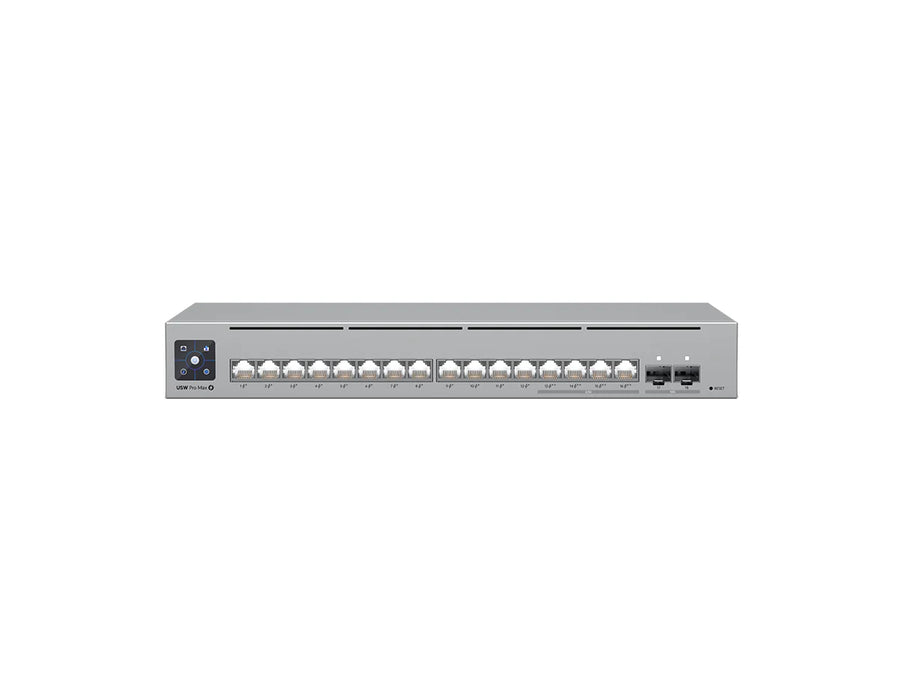

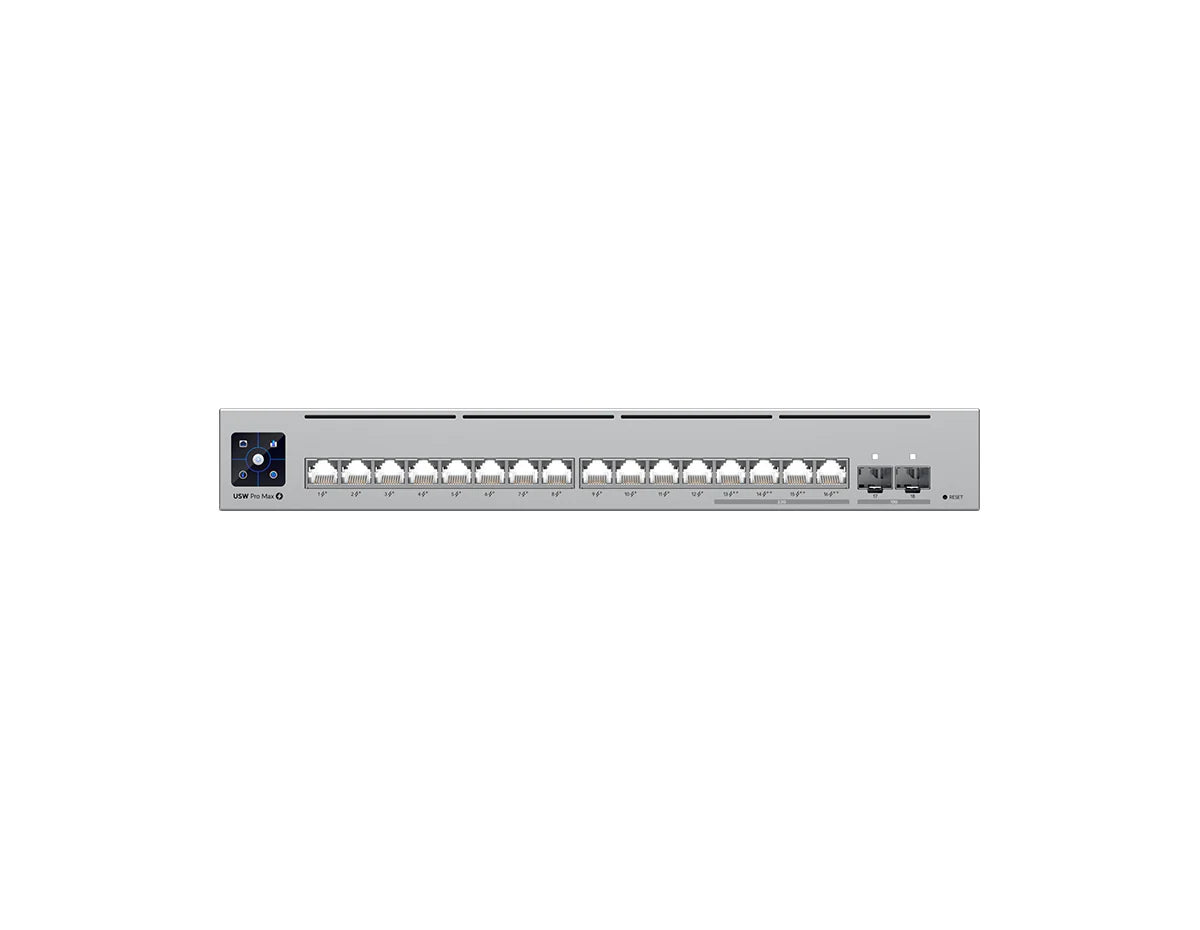

Ubiquiti UniFi USW-PRO-MAX-16-POE Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Ubiquiti UniFi USW-PRO-MAX-16-POE Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Ubiquiti UniFi USW-PRO-MAX-16-POE Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Ubiquiti UniFi USW-PRO-MAX-16-POE Switch
Ubiquiti UniFi USW-PRO-MAX-16-POE Switch

Ubiquiti UniFi USW-PRO-MAX-16-POE Switch

por Ubiquiti
R$ 5.175,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Layer 3, 12x GbE PoE+, 4x 2.5GbE PoE++, 2x 10G SFP+, 180W PoE budget, 1U rackmount [/shortdesc]

[properties]

Model Ubiquiti UniFi USW-PRO-MAX-16-POE
Product Type Layer 3 Managed Ethernet Switch
Port Configuration 12 x 1 GbE RJ45 (PoE+), 4 x 2.5 GbE RJ45 (PoE++), 2 x 10G SFP+
Total Port Count 16 RJ45 + 2 SFP+
PoE Support PoE+, PoE++
PoE Ports 12 x PoE+; 4 x PoE++
Total PoE Budget 180 W
Max PoE per Port PoE: 15.4 W; PoE+: 32 W; PoE++: 64 W
Switching Capacity 84 Gbps
Non-Blocking Throughput 42 Gbps
Forwarding Rate 62.496 Mpps
Supported VLANs 1,000
MAC Address Table 16,000 entries
Layer Layer 3
Form Factor Rack mount (1U), desktop, wall
Display 1.3 inch touchscreen
Dimensions (W x D x H) 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7 in)
Weight 2.1 kg (4.6 lb)
Enclosure Material SGCC steel
Power Supply AC/DC external adapter, 210 W
Supported Voltage Range 50 to 54 V DC
Max Power Consumption 25 W (excluding PoE); 210 W (including PoE)
Operating Temperature -5 to 40 C (23 to 104 F)
Operating Humidity 10 to 90 percent noncondensing
Certifications CE, FCC, IC, Anatel
NDAA Compliant Yes

[/properties]

[specifications]

Layer 3 Routing Capacity ARP entries: 6,000; IPv4 routes: 512; IPv4 static routes: 256
Access Control Lists IPv4 ACLs: 128; MAC ACLs: 128
Packet Buffer 1.5 MB
Layer 3 Features DHCP Server; DHCP Relay; Inter-VLAN Routing; Static Routing
Layer 2 Features LACP; STP; RSTP; QoS (DSCP); IGMP Snooping; Jumbo Frames; LLDP-MED; Voice VLAN; Loop Protection
Security Features 802.1X Control; MAC-Based ACLs; IP-Based ACLs; DHCP Snooping & Guarding; Port Isolation; Port Mirroring; MAC Address Blocking
Traffic Management Egress Rate Limit; Flow Control; Storm Control; Multicast & Broadcast Rate Limiting
Advanced IGMP Querier; Fast Leave; Router Port
Pro AV Profiles Play; Dante; Q-SYS; NDI; SDVoE; Shure; AES67; Crestron
Supported Rack Depth 400 to 1200 mm (15.7 to 47.2 in)
Management Software UniFi Network Version 8.1.127 and later

[/specifications]

[accesories]

Included Power adapter (210 W); Power cord; Rack mount kit

[/accesories]

The Ubiquiti UniFi Switch Pro Max 16 PoE (USW-PRO-MAX-16-POE) is a Layer 3 multi-gigabit switch engineered for high-density business networks. With 2.5GbE access ports, 10G SFP+ uplinks, and a 180W PoE budget, it delivers high-speed connectivity and flexible power for access points, cameras, VoIP phones, and Pro AV deployments.

Designed for rack, desktop, or wall installation, this Etherlighting enabled switch combines enterprise routing features with powerful PoE++ output in a compact 1U form factor.

  • Multi-Gig Access with PoE++: 12x 1GbE PoE+ ports and 4x 2.5GbE PoE++ ports support high-performance WiFi 6/7 APs, IP cameras, and high-power edge devices.
  • 10G SFP+ Uplinks: Dual 10G SFP+ interfaces provide high-speed aggregation or core uplink connectivity for bandwidth-intensive environments.
  • Layer 3 Routing Capability: Supports inter-VLAN routing, static routing, DHCP server and relay for advanced segmentation and traffic control.
  • Enterprise-Grade Switching Performance: 84 Gbps switching capacity and 42 Gbps non-blocking throughput ensure wire-speed data handling.
  • Advanced Security & Control: 802.1X authentication, ACLs, DHCP snooping, port isolation, IGMP snooping, and Storm Control enhance network protection.
  • SMB and enterprise branch network deployments
  • High-density WiFi access layer with multi-gig APs
  • IP surveillance systems requiring PoE++ power
  • Pro AV and VoIP network environments
  • UniFi-managed campus edge switching
  • Total Ports: 16 RJ45 + 2 SFP+
  • 1GbE Ports: 12x 10/100/1000 RJ45 (PoE+)
  • 2.5GbE Ports: 4x 2.5G RJ45 (PoE++)
  • 10G Uplinks: 2x 10G SFP+
  • Total PoE Budget: 180W
  • Switching Capacity: 84 Gbps
  • Non-Blocking Throughput: 42 Gbps
  • Forwarding Rate: 62.496 Mpps
  • MAC Address Table: 16,000 entries
  • Form Factor: 1U rackmount, desktop, wall-mount
  • Dimensions: 325.1 x 160 x 43.7 mm
  • Management: UniFi Network (v8.1.127 or later)

Deploy scalable Layer 3 switching with high-density PoE and 10G uplinks. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Layer 3, 12x GbE PoE+, 4x 2.5GbE PoE++, 2x 10G SFP+, 180W PoE budget, 1U rackmount [/shortdesc]

[properties]

Model Ubiquiti UniFi USW-PRO-MAX-16-POE
Product Type Layer 3 Managed Ethernet Switch
Port Configuration 12 x 1 GbE RJ45 (PoE+), 4 x 2.5 GbE RJ45 (PoE++), 2 x 10G SFP+
Total Port Count 16 RJ45 + 2 SFP+
PoE Support PoE+, PoE++
PoE Ports 12 x PoE+; 4 x PoE++
Total PoE Budget 180 W
Max PoE per Port PoE: 15.4 W; PoE+: 32 W; PoE++: 64 W
Switching Capacity 84 Gbps
Non-Blocking Throughput 42 Gbps
Forwarding Rate 62.496 Mpps
Supported VLANs 1,000
MAC Address Table 16,000 entries
Layer Layer 3
Form Factor Rack mount (1U), desktop, wall
Display 1.3 inch touchscreen
Dimensions (W x D x H) 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7 in)
Weight 2.1 kg (4.6 lb)
Enclosure Material SGCC steel
Power Supply AC/DC external adapter, 210 W
Supported Voltage Range 50 to 54 V DC
Max Power Consumption 25 W (excluding PoE); 210 W (including PoE)
Operating Temperature -5 to 40 C (23 to 104 F)
Operating Humidity 10 to 90 percent noncondensing
Certifications CE, FCC, IC, Anatel
NDAA Compliant Yes

[/properties]

[specifications]

Layer 3 Routing Capacity ARP entries: 6,000; IPv4 routes: 512; IPv4 static routes: 256
Access Control Lists IPv4 ACLs: 128; MAC ACLs: 128
Packet Buffer 1.5 MB
Layer 3 Features DHCP Server; DHCP Relay; Inter-VLAN Routing; Static Routing
Layer 2 Features LACP; STP; RSTP; QoS (DSCP); IGMP Snooping; Jumbo Frames; LLDP-MED; Voice VLAN; Loop Protection
Security Features 802.1X Control; MAC-Based ACLs; IP-Based ACLs; DHCP Snooping & Guarding; Port Isolation; Port Mirroring; MAC Address Blocking
Traffic Management Egress Rate Limit; Flow Control; Storm Control; Multicast & Broadcast Rate Limiting
Advanced IGMP Querier; Fast Leave; Router Port
Pro AV Profiles Play; Dante; Q-SYS; NDI; SDVoE; Shure; AES67; Crestron
Supported Rack Depth 400 to 1200 mm (15.7 to 47.2 in)
Management Software UniFi Network Version 8.1.127 and later

[/specifications]

[accesories]

Included Power adapter (210 W); Power cord; Rack mount kit

[/accesories]

High-Performance Multi-Gig Switching with Advanced PoE Power

The Ubiquiti UniFi Switch Pro Max 16 PoE (USW-PRO-MAX-16-POE) is a Layer 3 multi-gigabit switch engineered for high-density business networks. With 2.5GbE access ports, 10G SFP+ uplinks, and a 180W PoE budget, it delivers high-speed connectivity and flexible power for access points, cameras, VoIP phones, and Pro AV deployments.

Designed for rack, desktop, or wall installation, this Etherlighting enabled switch combines enterprise routing features with powerful PoE++ output in a compact 1U form factor.

Key Benefits & Features
  • Multi-Gig Access with PoE++: 12x 1GbE PoE+ ports and 4x 2.5GbE PoE++ ports support high-performance WiFi 6/7 APs, IP cameras, and high-power edge devices.
  • 10G SFP+ Uplinks: Dual 10G SFP+ interfaces provide high-speed aggregation or core uplink connectivity for bandwidth-intensive environments.
  • Layer 3 Routing Capability: Supports inter-VLAN routing, static routing, DHCP server and relay for advanced segmentation and traffic control.
  • Enterprise-Grade Switching Performance: 84 Gbps switching capacity and 42 Gbps non-blocking throughput ensure wire-speed data handling.
  • Advanced Security & Control: 802.1X authentication, ACLs, DHCP snooping, port isolation, IGMP snooping, and Storm Control enhance network protection.
Ideal Use Cases
  • SMB and enterprise branch network deployments
  • High-density WiFi access layer with multi-gig APs
  • IP surveillance systems requiring PoE++ power
  • Pro AV and VoIP network environments
  • UniFi-managed campus edge switching
Technical Specifications
  • Total Ports: 16 RJ45 + 2 SFP+
  • 1GbE Ports: 12x 10/100/1000 RJ45 (PoE+)
  • 2.5GbE Ports: 4x 2.5G RJ45 (PoE++)
  • 10G Uplinks: 2x 10G SFP+
  • Total PoE Budget: 180W
  • Switching Capacity: 84 Gbps
  • Non-Blocking Throughput: 42 Gbps
  • Forwarding Rate: 62.496 Mpps
  • MAC Address Table: 16,000 entries
  • Form Factor: 1U rackmount, desktop, wall-mount
  • Dimensions: 325.1 x 160 x 43.7 mm
  • Management: UniFi Network (v8.1.127 or later)
Upgrade Your Network Core with Multi-Gig Power

Deploy scalable Layer 3 switching with high-density PoE and 10G uplinks. Order today.
