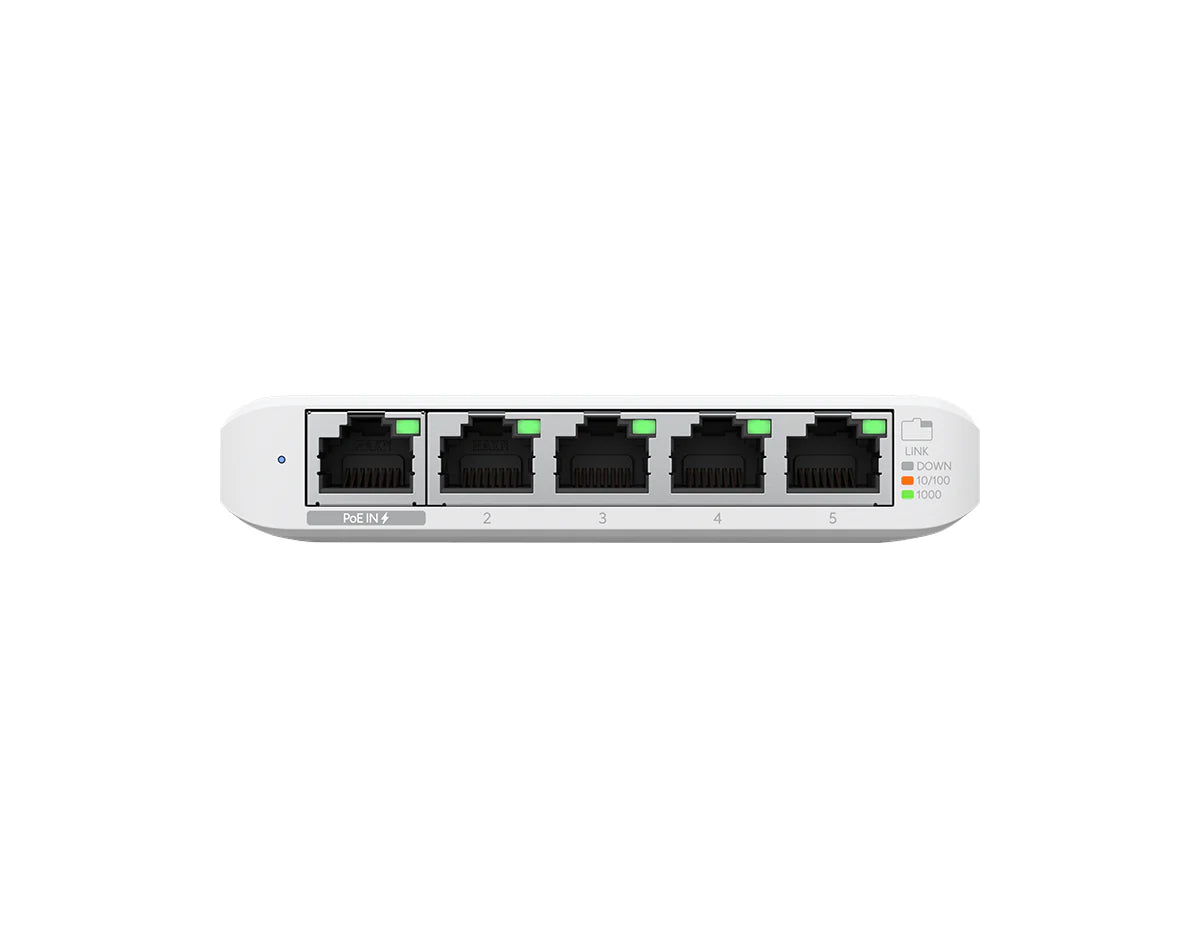

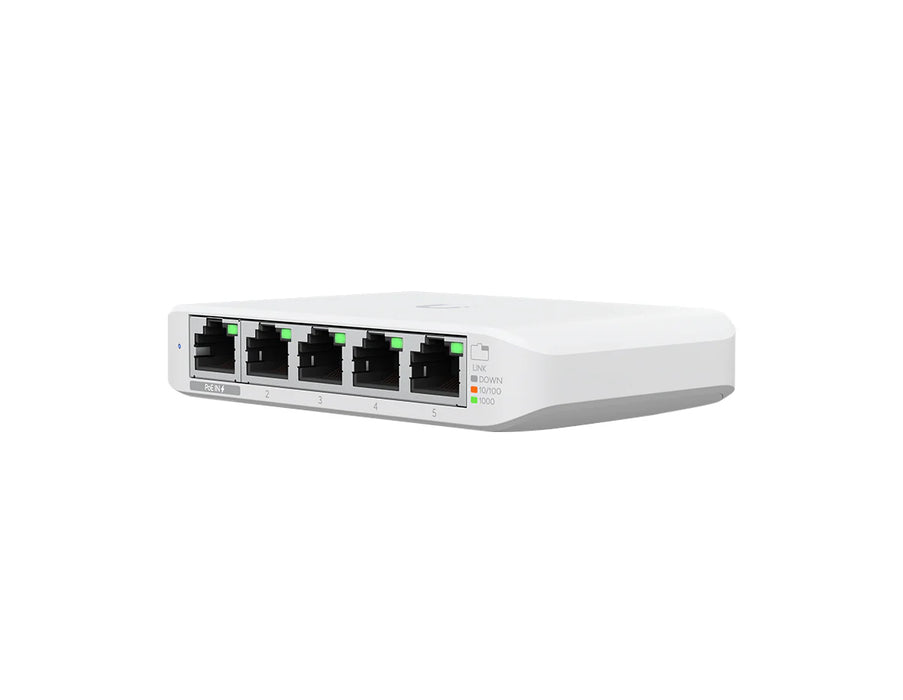

Ubiquiti UniFi Switch Flex Mini 5-Port Gigabit Desktop Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Ubiquiti UniFi Switch Flex Mini 5-Port Gigabit Desktop Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Ubiquiti UniFi Switch Flex Mini 5-Port Gigabit Desktop Switch
Ubiquiti UniFi Switch Flex Mini 5-Port Gigabit Desktop Switch

Ubiquiti UniFi Switch Flex Mini 5-Port Gigabit Desktop Switch

por Ubiquiti
R$ 444,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 5 Gigabit RJ45 ports, Layer 2 switching, PoE or USB-C power, 5 Gbps throughput, compact desktop design [/shortdesc]

[properties]

Model USW-Flex-Mini
Product Type Compact 5-Port Gigabit Switch
Product Family UniFi Switch Flex Mini
Network System UniFi Enterprise System
Form Factor Compact desktop
Networking Interfaces (5) 10/100/1000 RJ45 ports
PoE Input 802.3af/at PoE, pins 1, 2+; 3, 6-
Management Ethernet In-Band
Total Non-Blocking Throughput 5 Gbps
Switching Capacity 10 Gbps
Forwarding Rate 7.44 Mpps
Power Method USB Type C, 5V; 802.3af/at PoE
Max Power Consumption 2.5W
Dimensions 107.16 × 70.15 × 21.17 mm (4.22 × 2.76 × 0.83 in)
Weight 150 g (5.29 oz)
Certifications CE, FCC, IC

[/properties]

[specifications]

RJ45 Port Speed Five RJ45 ports offer 10/100/1000 links
PoE Input Details 802.3af/at PoE, 44 - 57VDC, 0.05 - 0.04A
USB Type C Voltage Range 4.7 - 5.3V
802.3af/at PoE Voltage Range 44 - 57VDC
Power Supply 5V, 1A power adapter, included only with the single-pack of the USW-Flex-Mini
System LED Status
RJ45 Data Port LEDs Speed, Link, Activity
ESD/EMP Protection Air: ±16 kV, Contact: ±12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 - 90% noncondensing
Controller Features Centralized configuration management, configuration cloning, Auto-MDIX
Switch Configuration Operation mode per port, Network/VLAN configuration, jumbo frame and flow control services, network settings, storm control setting per port
Switch Port Status Connection speed and duplex mode, TX/RX data rates, Network/VLAN setting
Limitations Port-based VLANs only; does not support SSH, STP, 802.1X, DNS suffix, or experience in the controller

[/specifications]

[accesories]

Included 5V, 1A USB-C power adapter, included only with the single-pack of the USW-Flex-Mini

[/accesories]

The Ubiquiti USW-Flex-Mini is a compact 5-port Gigabit switch designed for clean, efficient network expansion in offices, workstations, retail counters, and small UniFi deployments. With flexible power through 802.3af/at PoE or a 5V USB-C adapter, it simplifies installation where space and cabling efficiency matter.

Built for the UniFi ecosystem, this Layer 2 desktop switch delivers reliable copper connectivity, centralized management, and line-rate switching performance in a small, low-power form factor.

  • Five Gigabit RJ45 ports: Connect workstations, printers, NAS devices, cameras, consoles, or other wired endpoints with 10/100/1000 Ethernet links.
  • Flexible power options: Power the switch using 802.3af/at PoE input or a 5V, 1A USB-C power adapter for adaptable deployment.
  • Efficient switching performance: 10 Gbps switching capacity and 5 Gbps non-blocking throughput help process traffic across all ports efficiently.
  • UniFi Network management: Configure switching, port mirroring, VLAN settings, jumbo frames, flow control, and storm control through UniFi Network.
  • Compact desktop footprint: The small polycarbonate enclosure fits neatly on desks, shelves, kiosks, and space-limited network points.
  • Small office and home office wired network expansion
  • Desktop connectivity for computers, printers, and NAS devices
  • Retail counters, service desks, and compact workspaces
  • UniFi deployments needing a low-power edge switch
  • Procurement teams standardizing on Ubiquiti network hardware
  • Model: USW-Flex-Mini
  • Switch Type: Compact Layer 2 Gigabit switch
  • Ports: 5 x 10/100/1000 RJ45 ports
  • PoE Input: 802.3af/at PoE on one RJ45 port
  • Switching Capacity: 10 Gbps
  • Total Non-Blocking Throughput: 5 Gbps
  • Forwarding Rate: 7.44 Mpps
  • Power Method: USB Type-C 5V or 802.3af/at PoE
  • Max Power Consumption: 2.5W
  • Dimensions: 107.16 x 70.15 x 21.17 mm
  • Weight: 150 g
  • Operating Temperature: -5 to 45° C

Upgrade compact workspaces with efficient UniFi switching and simple deployment. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 5 Gigabit RJ45 ports, Layer 2 switching, PoE or USB-C power, 5 Gbps throughput, compact desktop design [/shortdesc]

[properties]

Model USW-Flex-Mini
Product Type Compact 5-Port Gigabit Switch
Product Family UniFi Switch Flex Mini
Network System UniFi Enterprise System
Form Factor Compact desktop
Networking Interfaces (5) 10/100/1000 RJ45 ports
PoE Input 802.3af/at PoE, pins 1, 2+; 3, 6-
Management Ethernet In-Band
Total Non-Blocking Throughput 5 Gbps
Switching Capacity 10 Gbps
Forwarding Rate 7.44 Mpps
Power Method USB Type C, 5V; 802.3af/at PoE
Max Power Consumption 2.5W
Dimensions 107.16 × 70.15 × 21.17 mm (4.22 × 2.76 × 0.83 in)
Weight 150 g (5.29 oz)
Certifications CE, FCC, IC

[/properties]

[specifications]

RJ45 Port Speed Five RJ45 ports offer 10/100/1000 links
PoE Input Details 802.3af/at PoE, 44 - 57VDC, 0.05 - 0.04A
USB Type C Voltage Range 4.7 - 5.3V
802.3af/at PoE Voltage Range 44 - 57VDC
Power Supply 5V, 1A power adapter, included only with the single-pack of the USW-Flex-Mini
System LED Status
RJ45 Data Port LEDs Speed, Link, Activity
ESD/EMP Protection Air: ±16 kV, Contact: ±12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 - 90% noncondensing
Controller Features Centralized configuration management, configuration cloning, Auto-MDIX
Switch Configuration Operation mode per port, Network/VLAN configuration, jumbo frame and flow control services, network settings, storm control setting per port
Switch Port Status Connection speed and duplex mode, TX/RX data rates, Network/VLAN setting
Limitations Port-based VLANs only; does not support SSH, STP, 802.1X, DNS suffix, or experience in the controller

[/specifications]

[accesories]

Included 5V, 1A USB-C power adapter, included only with the single-pack of the USW-Flex-Mini

[/accesories]

Expand Your Network with Compact UniFi Switching

The Ubiquiti USW-Flex-Mini is a compact 5-port Gigabit switch designed for clean, efficient network expansion in offices, workstations, retail counters, and small UniFi deployments. With flexible power through 802.3af/at PoE or a 5V USB-C adapter, it simplifies installation where space and cabling efficiency matter.

Built for the UniFi ecosystem, this Layer 2 desktop switch delivers reliable copper connectivity, centralized management, and line-rate switching performance in a small, low-power form factor.

Key Benefits & Features
  • Five Gigabit RJ45 ports: Connect workstations, printers, NAS devices, cameras, consoles, or other wired endpoints with 10/100/1000 Ethernet links.
  • Flexible power options: Power the switch using 802.3af/at PoE input or a 5V, 1A USB-C power adapter for adaptable deployment.
  • Efficient switching performance: 10 Gbps switching capacity and 5 Gbps non-blocking throughput help process traffic across all ports efficiently.
  • UniFi Network management: Configure switching, port mirroring, VLAN settings, jumbo frames, flow control, and storm control through UniFi Network.
  • Compact desktop footprint: The small polycarbonate enclosure fits neatly on desks, shelves, kiosks, and space-limited network points.
Ideal Use Cases
  • Small office and home office wired network expansion
  • Desktop connectivity for computers, printers, and NAS devices
  • Retail counters, service desks, and compact workspaces
  • UniFi deployments needing a low-power edge switch
  • Procurement teams standardizing on Ubiquiti network hardware
Technical Specifications
  • Model: USW-Flex-Mini
  • Switch Type: Compact Layer 2 Gigabit switch
  • Ports: 5 x 10/100/1000 RJ45 ports
  • PoE Input: 802.3af/at PoE on one RJ45 port
  • Switching Capacity: 10 Gbps
  • Total Non-Blocking Throughput: 5 Gbps
  • Forwarding Rate: 7.44 Mpps
  • Power Method: USB Type-C 5V or 802.3af/at PoE
  • Max Power Consumption: 2.5W
  • Dimensions: 107.16 x 70.15 x 21.17 mm
  • Weight: 150 g
  • Operating Temperature: -5 to 45° C
Add Reliable Gigabit Ports in Minutes

Upgrade compact workspaces with efficient UniFi switching and simple deployment. Order today.
