• Ubiquiti UA-Ultra is a sleek, wall-mounted UniFi access reader with NFC, mobile unlock, IP55 weatherproofing, and PoE+ support for modern secure entry

[/shortdesc]

[specifications] [/specifications]

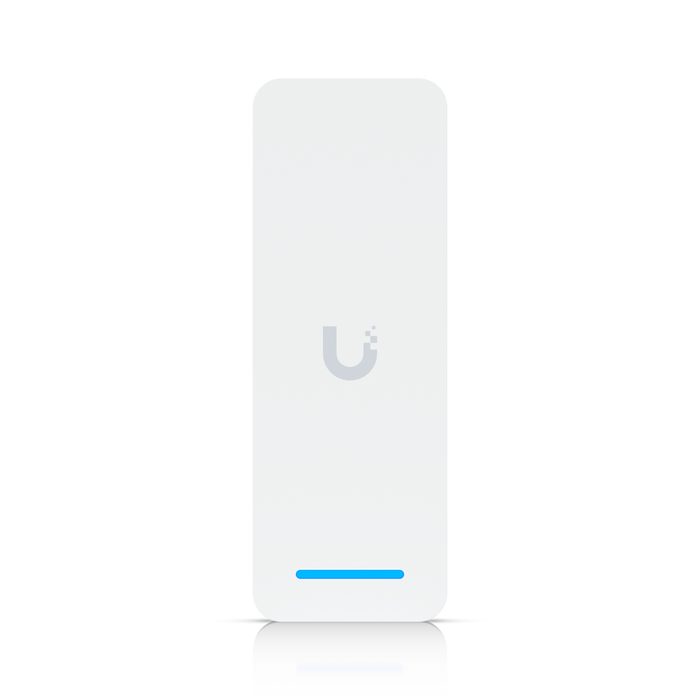

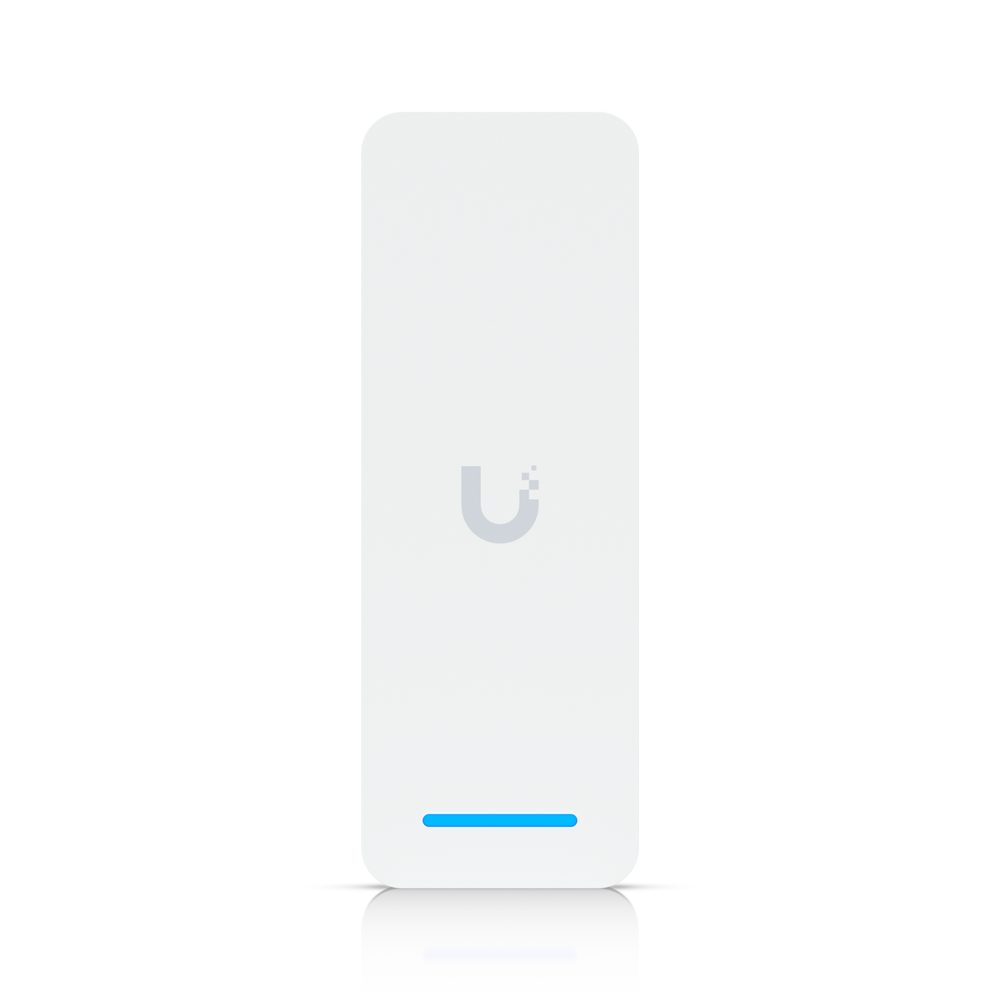

Ubiquiti UA-Ultra UniFi Access Reader

The Ubiquiti UA-Ultra is a high-performance access reader designed to work with the UniFi Access ecosystem. Built with premium materials, the UA-Ultra delivers fast and secure entry through NFC cards or mobile unlock via BLE. Its compact design supports wall and gang box mounting, making it an ideal solution for both indoor and outdoor installations requiring a modern access control experience.

The reader is IP55-rated, tamper-resistant, and equipped with PoE+ power input, ensuring reliable operation in harsh environments. It supports a wide range of NFC protocols, including MIFARE Classic, DESFire, ISO 14443A/B, and others. Enhanced with RGB LED status indicators and an onboard speaker, the UA-Ultra provides intuitive feedback and is compliant with industry security standards like UL 294.

• NFC + Mobile Unlock: Supports 13.56 MHz NFC cards, keyfobs, and Bluetooth-based mobile unlocking
• Rugged Enclosure: Built from polycarbonate and aluminum alloy for durability in industrial environments
• Wide Compatibility: Works with ISO 14443A/B, MIFARE, DESFire, NFC Tag Types 1–5, and more
• Flexible Installation: Mounts to wall or gang box; stainless steel hardware included
• PoE+ Powered: Operates on 44–57V DC with a max consumption of 18W
• Weather Resistant: IP55 rating for indoor and outdoor use
• Visual & Audible Alerts: Integrated RGB LED indicators and built-in buzzer for real-time feedback
• Certified Secure: UL 294 and CAN/ULC 60839-11-1 compliant with tamper detection switch

• Dimensions: 126 × 45 × 37.45 mm (4.9 × 1.8 × 1.5 in)
• Weight: 140 g (4.9 oz)
• Enclosure: Polycarbonate + Aluminum Alloy
• Mount Material: Stainless Steel
• Mounting: Wall mount, Gang box mount (included), Junction box (optional)
• Operating Temperature: -30°C to 40°C (-22°F to 104°F)
• Humidity: 5% to 90% non-condensing
• Interface: 10/100 Mbps Ethernet (RJ45)
• Power Input: PoE+ (44–57V DC)
• Max Power Consumption: 18W
• NFC Frequency: 13.56 MHz
• Read Range: < 50 mm
• Connectivity: BLE 4.2
• Indicators: RGB LED, Speaker, Reset button
• Certifications: UL 294, CAN/ULC-60839-11-1, CE, FCC, IC
