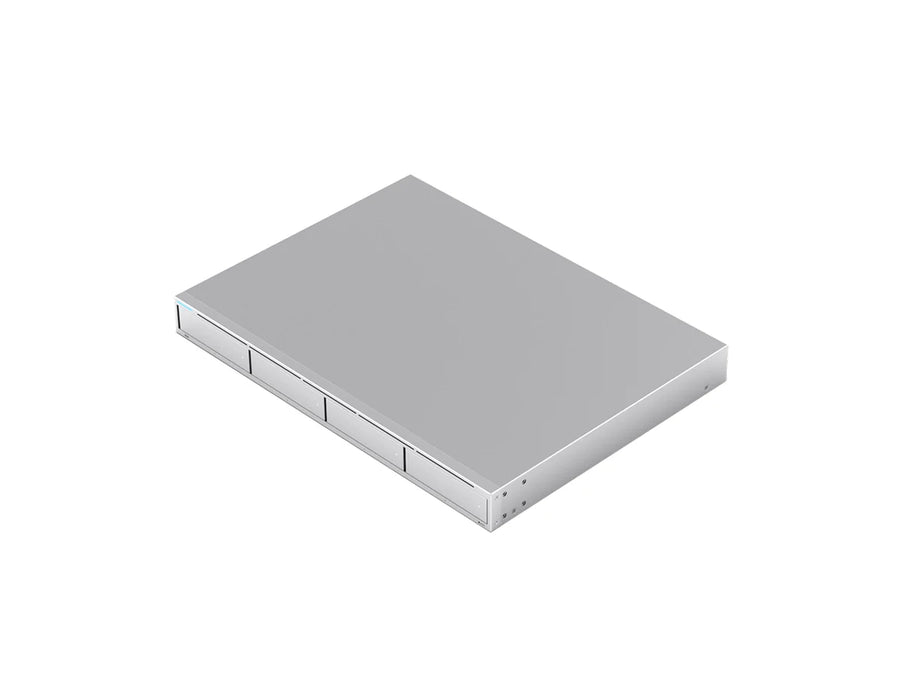

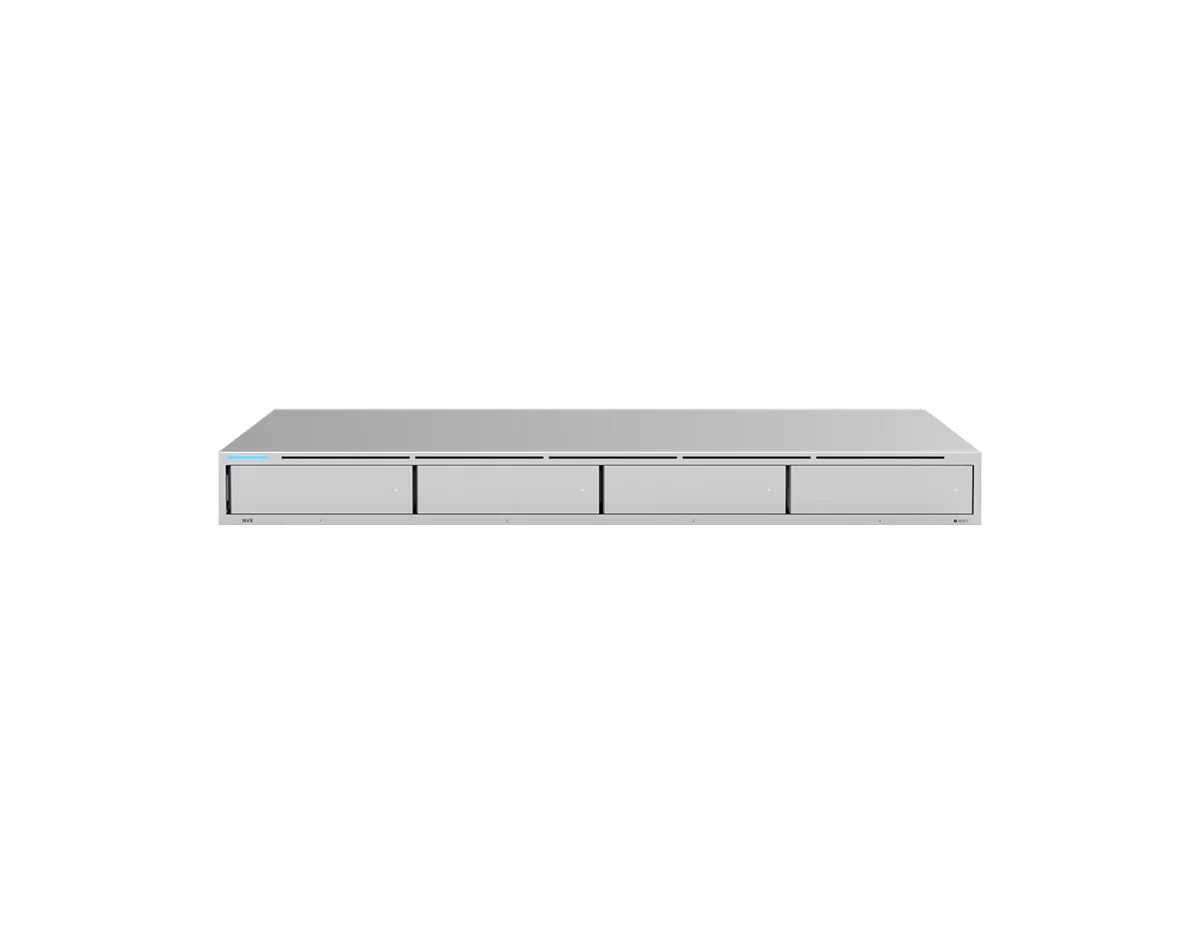

Ubiquiti Networks UNVR UniFi Network Video Recorder

[shortdesc] Four-drive-bay NVR, 10G SFP+ uplink, Gigabit RJ45, 4 GB memory, 1U rackmount design, UniFi Protect management [/shortdesc]

[properties]

Brand	Ubiquiti
Model	Network Video Recorder
SKU	UNVR
Product Type	Network Video Recorder
Form Factor	Rack mount (1U)
Storage Capacity	(4) 2.5/3.5" drive bays
Hard Drive Support	(4) 2.5/3.5" HDD / SSD
Networking Interface	(1) 10G SFP+ port, (1) GbE RJ45 port
Management Applications	UniFi Protect, UniFi Access, UniFi Connect
Dimensions	442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight	Without mounting brackets: 5.11 kg (11.27 lb); With mounting brackets: 5.20 kg (11.46 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Operating Temperature	-5 to 40° C (23 to 104° F)

[/properties]

[specifications]

Managed Cameras	(60) HD, (30) 2K, (18) 4K
Managed Access Hubs	150+
Data Protection	Supported
Vantage Point	Supported
Door Access Support	Supported
Power Redundancy	Supported
Processor	Quad ARM® Cortex®-A57 cores at 1.7 GHz
Memory	4 GB
Management	Ethernet
Maximum Power Budget for Drives	75W
Maximum Power Consumption	100W
Power Method	(1) Universal AC input, 100-240V AC, 2A Max., 50/60 Hz; (1) USP-RPS DC input, 11.5V DC, 10.43A
Power Supply	AC/DC, internal, 120W
Operating Humidity	5 to 95% noncondensing
NDAA Compliant	Yes
Certifications	CE, FCC, IC, SRRC, Anatel: 01924-21-08356

[/specifications]

The Ubiquiti UNVR is an enterprise network video recorder designed to combine UniFi Protect management, scalable storage, and a four-drive-bay architecture in a compact rackmount enclosure. It provides centralized access to surveillance recordings through the UniFi Protect graphical interface from compatible desktop computers and mobile devices.

Front-accessible drive bays simplify hard drive installation and maintenance. The recorder also supports both Gigabit Ethernet and 1/10 Gbps SFP+ connectivity, helping it integrate into surveillance networks that require flexible uplink options and centralized video storage.

• Four front-accessible drive bays for simplified storage installation and maintenance
• Integrated UniFi Protect software for centralized surveillance management
• 1/10 Gbps SFP+ interface for high-speed network connectivity
• Gigabit RJ45 Ethernet interface for standard network integration
• USP-RPS input support for connection to a compatible redundant power system

• Centralized video recording for business surveillance systems
• UniFi Protect deployments requiring expandable local storage
• Rack-mounted security infrastructure in server and network rooms
• Multi-camera installations requiring desktop and mobile recording access

• Model: UNVR
• Product Type: UniFi Protect network video recorder
• Drive Bays: 4
• Processor: Quad-Core ARM Cortex-A57 at 1.7 GHz
• System Memory: 4 GB
• On-Board Flash Storage: 8 GB
• Network Interfaces: 1 x 10/100/1000 Mbps RJ45 and 1 x 1/10 Gbps SFP+
• Maximum Power Consumption: 100W
• Power Supply: Internal 120W AC/DC
• Dimensions: 442.4 x 325 x 43.7 mm

Deploy the Ubiquiti UNVR to consolidate surveillance recording, storage management, and remote access within the UniFi Protect ecosystem. Order the UNVR for a rack-ready network video recording solution with flexible Ethernet connectivity and four accessible drive bays.
