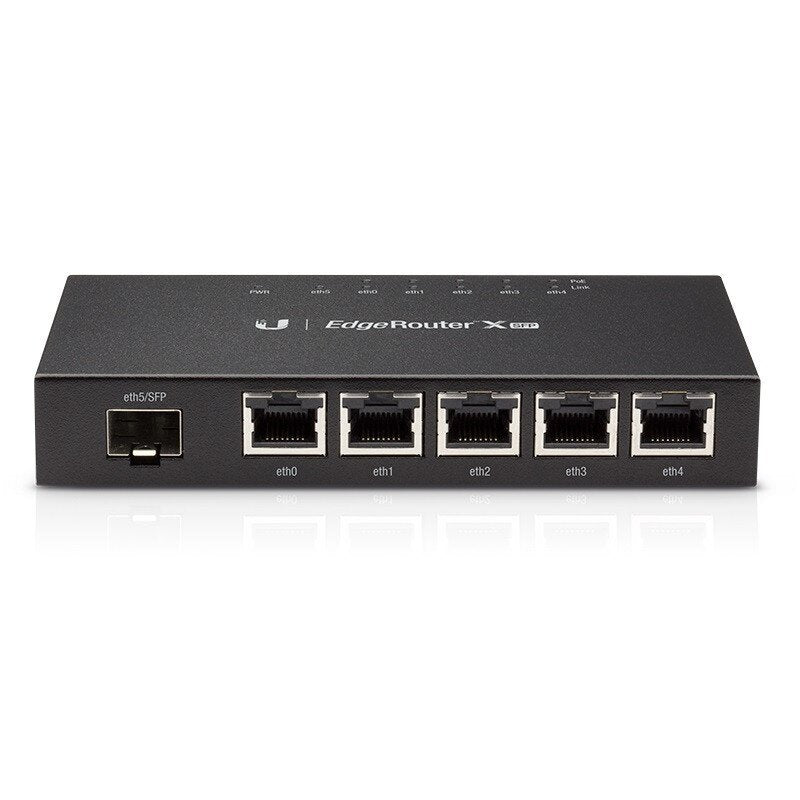

Ubiquiti EdgeRouter X 5-Ports 10/100/1000BASE-T Ethernet Desktop Router with 1-Port SFP - ER-X-SFP

The Ubiquiti EdgeRouter X SFP (ER-X-SFP) is a compact, high-performance desktop router featuring five Gigabit Ethernet ports, one SFP port, and passive PoE passthrough on select ports. Running EdgeOS (based on VyOS), it delivers advanced routing, firewall, and VPN capabilities at an accessible price point for home labs, SMBs, and network enthusiasts.

Key Features

• 5x Gigabit Ethernet ports plus 1x SFP for fiber or additional uplink flexibility
• EdgeOS (VyOS-based) with full CLI and GUI for advanced routing and firewall
• Hardware-accelerated routing via Cavium MIPS processor
• Passive PoE passthrough on port ETH4 (24V) for powering compatible devices
• Compact desktop form factor with low 5W power consumption

Product Specifications

• Part Number: ER-X-SFP
• Manufacturer: Ubiquiti Networks
• OEM Status: OEM
• Model: EdgeRouter X SFP
• Ports: 5x 1GbE RJ-45 + 1x SFP
• PoE Passthrough: Passive 24V (ETH4)
• Form Factor: Desktop
• Power Consumption: 5W (max)

Interface Specifications

• WAN/LAN Ports: 5x 10/100/1000BASE-T (configurable)
• SFP Port: 1x 1GbE SFP (fiber or copper SFP)
• PoE Passthrough: ETH4 — passive 24V (not 802.3af/at)
• Routing Throughput: Up to 1 Gbps (with hardware offload)
• Concurrent Sessions: Up to 1 million

Use Cases

• Home lab and SMB edge router with advanced routing and firewall capabilities
• ISP CPE replacement requiring full CLI control via EdgeOS
• Site-to-site VPN gateway using IPsec or OpenVPN
• Fiber WAN termination via SFP port with SFP transceiver

Compatibility

• Compatible with standard 1GbE SFP transceivers (fiber and copper) for the SFP port
• Managed via EdgeOS web GUI, CLI (SSH), and Ubiquiti's UNMS/UISP platform
• Passive PoE passthrough compatible with Ubiquiti airMAX and other 24V passive PoE devices only

Frequently Asked Questions

Does the ER-X-SFP support 802.3af/at PoE?

No — the PoE passthrough on ETH4 is passive 24V only, not 802.3af or 802.3at. It is compatible with Ubiquiti airMAX devices and other 24V passive PoE equipment.

What is the difference between ER-X and ER-X-SFP?

The ER-X-SFP adds a 1GbE SFP port compared to the standard ER-X, enabling fiber WAN or additional uplink connectivity.

Does it support hardware-accelerated routing?

Yes — the ER-X-SFP uses Cavium hardware offloading to achieve up to 1 Gbps routing throughput with offload enabled in EdgeOS.
