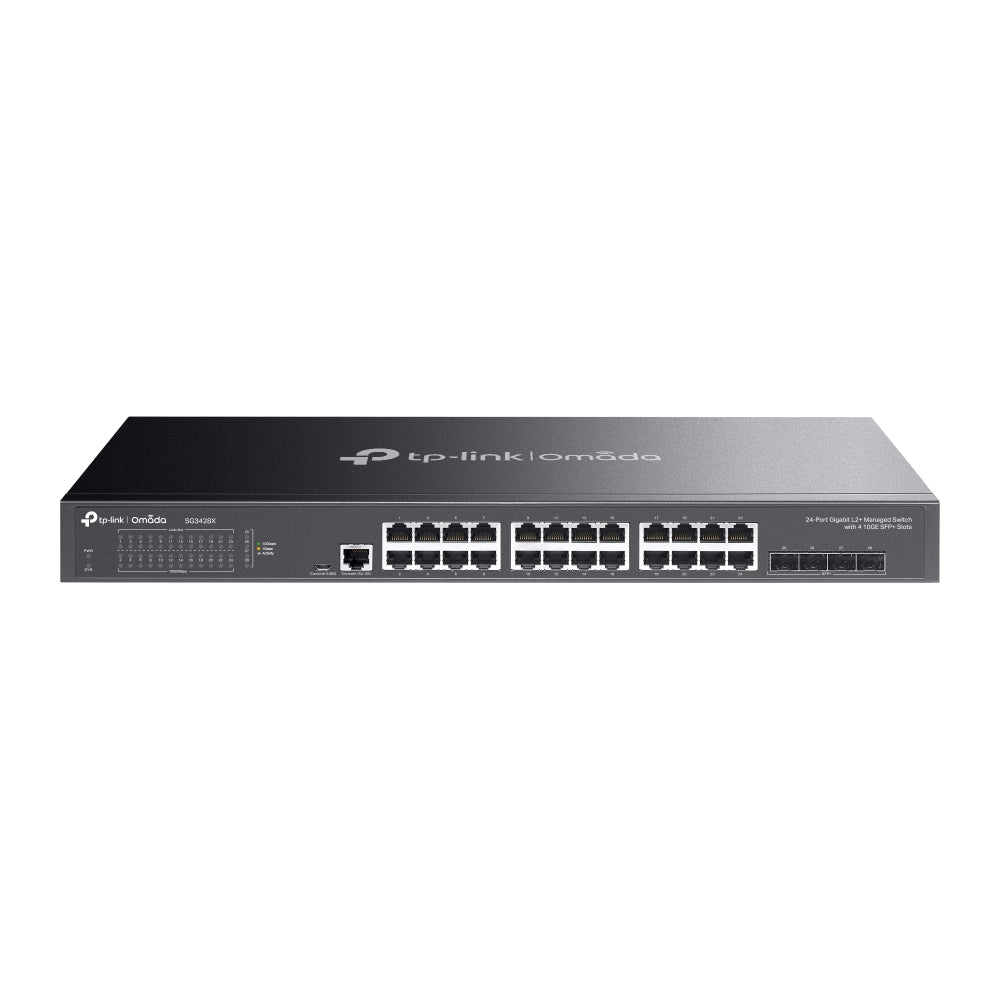

TP-Link Omada SG3428X 24-Port Gigabit L2+ Managed Switch
TP-Link Omada SG3428X 24-Port Gigabit L2+ Managed Switch

TP-Link Omada SG3428X 24-Port Gigabit L2+ Managed Switch

por Tp-Link
R$ 3.468,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]24× Gigabit ports, 4× 10G SFP+ slots, 128 Gbps capacity, fanless, static routing, cloud-managed[/shortdesc]

[properties]

Model TP-Link SG3428X
Product Type L2+ Managed Gigabit Switch
Ports 24× 10/100/1000 Mbps RJ45 Ports; 4× 10G SFP+ Slots
Console Ports 1× RJ45 Console Port; 1× Micro-USB Console Port
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
MAC Address Table 16K
Packet Buffer 12 MB
Jumbo Frame 9 KB
Design Fanless, Rackmountable Metal Casing
Dimensions (W × D × H) 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
Weight 5.5 lb
Power Supply 100-240 V AC, 50/60 Hz
Max Power Consumption 23.6 W (110 V/60 Hz)
Heat Dissipation 80.52 BTU/h (110 V/60 Hz)
Operating Temperature 0-45 °C (32-113 °F)
Storage Temperature -40-70 °C (-40-158 °F)
Operating Humidity 10-90% RH non-condensing
Storage Humidity 5-90% RH non-condensing
Certifications CE, FCC, RoHS

[/properties]

[specifications]

Quality of Service (QoS) 8 priority queues; 802.1p CoS/DSCP; SP, WRR, SP+WRR scheduling; Port/Flow-based rate limiting; QoS remark (802.1p, DSCP)
L2 / L2+ Features 128 IPv4/IPv6 interfaces; 48 IPv4/IPv6 static routes; ARP (512 dynamic, 128 static), Proxy ARP, Gratuitous ARP; DHCP Server, DHCP Relay (Interface/VLAN) and L2 Relay; Link Aggregation; STP; Loopback Detection; 802.3x Flow Control; Mirroring
Multicast Supports 1000 IGMP groups (IPv4/IPv6); IGMP Snooping & Authentication; MVR; MLD Snooping; Multicast Filtering (256 profiles, 16 entries/profile)
VLAN Max 4K VLANs; 802.1Q; MAC VLAN (30 entries); Protocol VLAN (Template 16, VLAN 16); Private VLAN; Voice VLAN; VLAN Mapping/Replace (VLAN VPN); GVRP
Security IP-MAC-Port Binding (512 entries); DHCP Snooping; ARP Inspection; DoS Defend; Port Security (up to 64 MAC/port); IPv4 Source Guard (100 entries) & IPv6 Source Guard (100 entries); IPv6 ND Snooping/Detection
Access Control Time-based ACL; MAC, IP, IPv6, Combined & Packet Content ACLs; Policies for Mirroring, Redirect, QoS Remark, Rate Limit; ACL apply to Port/VLAN
Management Web GUI; CLI (console/telnet); SNMP v1/v2c/v3 with RMON; Omada App; Omada Cloud/Hardware/Software Controller; Zero-Touch Provisioning; LLDP/LLDP-MED; DHCP AutoInstall; Dual Image & Dual Configuration; CPU Monitoring; EEE; Cable Diagnostics; Password Recovery; SNTP; System Log
Advanced Features ERPS; 802.3ah OAM; DDM; sFlow; DLDP; L2PT; PPPoE ID Insertion
IPv6 Support Dual Stack; ICMPv6; IPv6 ACL; Static IPv6 Routing; IPv6 ND; DHCPv6 Client; Ping6/Traceroute6; IPv6 SNMP/SSH/SSL
MIBs RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925; TP-Link private MIB

[/specifications]

[accesories]

Included in the Box SG3428X Switch; Power Cord; Quick Installation Guide; Rackmount Kit; Rubber Feet
Recommended Module Use only one TL-SM5310-T module on this model (per vendor guidance)

[/accesories]

The TP-Link Omada SG3428X is a 24-port Gigabit L2+ managed switch with 4 high-speed 10G SFP+ slots, built for modern enterprise networks that need performance, scalability, and quiet efficiency. With centralized Omada SDN cloud management and a fanless metal chassis, it delivers robust networking power without noise.

  • 10G Uplink Performance: Four SFP+ slots enable lightning-fast fiber or copper uplinks for seamless aggregation.
  • Silent, Reliable Design: Fanless architecture ensures noise-free operation ideal for office or branch deployments.
  • Advanced Layer 2+ Routing: Static routing optimizes internal traffic flow and reduces reliance on core routers.
  • Cloud & Local Management: Manage via Omada SDN Controller, Omada app, or traditional CLI/SNMP for flexible administration.
  • Enterprise-Grade Security: VLAN, ACL, QoS, IGMP Snooping, and DoS defense provide safe and optimized data handling.
  • Medium-to-large offices seeking high-density Gigabit access with 10G uplinks
  • Branch networks requiring silent, rackmountable switches for workspace environments
  • Managed service providers delivering SDN-enabled deployments with remote control
  • Campus or hospitality networks needing VLAN, QoS, and multicast support
  • Ports: 24× 10/100/1000 Mbps RJ45, 4× 10G SFP+
  • Console: 1× RJ45, 1× Micro-USB
  • Switching Capacity: 128 Gbps
  • Forwarding Rate: 95.23 Mpps
  • MAC Address Table: 16K entries
  • Buffer Memory: 12 Mbit
  • Jumbo Frame: 9 KB
  • Power Consumption: Max 23.6 W
  • Dimensions: 440 × 180 × 44 mm (1U rackmount)
  • Design: Fanless, durable metal casing

Boost your infrastructure with the TP-Link Omada SG3428X. Powerful, quiet, and cloud-ready. Order today to transform your enterprise network.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]24× Gigabit ports, 4× 10G SFP+ slots, 128 Gbps capacity, fanless, static routing, cloud-managed[/shortdesc]

[properties]

Model TP-Link SG3428X
Product Type L2+ Managed Gigabit Switch
Ports 24× 10/100/1000 Mbps RJ45 Ports; 4× 10G SFP+ Slots
Console Ports 1× RJ45 Console Port; 1× Micro-USB Console Port
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
MAC Address Table 16K
Packet Buffer 12 MB
Jumbo Frame 9 KB
Design Fanless, Rackmountable Metal Casing
Dimensions (W × D × H) 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
Weight 5.5 lb
Power Supply 100-240 V AC, 50/60 Hz
Max Power Consumption 23.6 W (110 V/60 Hz)
Heat Dissipation 80.52 BTU/h (110 V/60 Hz)
Operating Temperature 0-45 °C (32-113 °F)
Storage Temperature -40-70 °C (-40-158 °F)
Operating Humidity 10-90% RH non-condensing
Storage Humidity 5-90% RH non-condensing
Certifications CE, FCC, RoHS

[/properties]

[specifications]

Quality of Service (QoS) 8 priority queues; 802.1p CoS/DSCP; SP, WRR, SP+WRR scheduling; Port/Flow-based rate limiting; QoS remark (802.1p, DSCP)
L2 / L2+ Features 128 IPv4/IPv6 interfaces; 48 IPv4/IPv6 static routes; ARP (512 dynamic, 128 static), Proxy ARP, Gratuitous ARP; DHCP Server, DHCP Relay (Interface/VLAN) and L2 Relay; Link Aggregation; STP; Loopback Detection; 802.3x Flow Control; Mirroring
Multicast Supports 1000 IGMP groups (IPv4/IPv6); IGMP Snooping & Authentication; MVR; MLD Snooping; Multicast Filtering (256 profiles, 16 entries/profile)
VLAN Max 4K VLANs; 802.1Q; MAC VLAN (30 entries); Protocol VLAN (Template 16, VLAN 16); Private VLAN; Voice VLAN; VLAN Mapping/Replace (VLAN VPN); GVRP
Security IP-MAC-Port Binding (512 entries); DHCP Snooping; ARP Inspection; DoS Defend; Port Security (up to 64 MAC/port); IPv4 Source Guard (100 entries) & IPv6 Source Guard (100 entries); IPv6 ND Snooping/Detection
Access Control Time-based ACL; MAC, IP, IPv6, Combined & Packet Content ACLs; Policies for Mirroring, Redirect, QoS Remark, Rate Limit; ACL apply to Port/VLAN
Management Web GUI; CLI (console/telnet); SNMP v1/v2c/v3 with RMON; Omada App; Omada Cloud/Hardware/Software Controller; Zero-Touch Provisioning; LLDP/LLDP-MED; DHCP AutoInstall; Dual Image & Dual Configuration; CPU Monitoring; EEE; Cable Diagnostics; Password Recovery; SNTP; System Log
Advanced Features ERPS; 802.3ah OAM; DDM; sFlow; DLDP; L2PT; PPPoE ID Insertion
IPv6 Support Dual Stack; ICMPv6; IPv6 ACL; Static IPv6 Routing; IPv6 ND; DHCPv6 Client; Ping6/Traceroute6; IPv6 SNMP/SSH/SSL
MIBs RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925; TP-Link private MIB

[/specifications]

[accesories]

Included in the Box SG3428X Switch; Power Cord; Quick Installation Guide; Rackmount Kit; Rubber Feet
Recommended Module Use only one TL-SM5310-T module on this model (per vendor guidance)

[/accesories]

High-Bandwidth Switching with Silent Operation

The TP-Link Omada SG3428X is a 24-port Gigabit L2+ managed switch with 4 high-speed 10G SFP+ slots, built for modern enterprise networks that need performance, scalability, and quiet efficiency. With centralized Omada SDN cloud management and a fanless metal chassis, it delivers robust networking power without noise.

Key Benefits & Features
  • 10G Uplink Performance: Four SFP+ slots enable lightning-fast fiber or copper uplinks for seamless aggregation.
  • Silent, Reliable Design: Fanless architecture ensures noise-free operation ideal for office or branch deployments.
  • Advanced Layer 2+ Routing: Static routing optimizes internal traffic flow and reduces reliance on core routers.
  • Cloud & Local Management: Manage via Omada SDN Controller, Omada app, or traditional CLI/SNMP for flexible administration.
  • Enterprise-Grade Security: VLAN, ACL, QoS, IGMP Snooping, and DoS defense provide safe and optimized data handling.
Ideal Use Cases
  • Medium-to-large offices seeking high-density Gigabit access with 10G uplinks
  • Branch networks requiring silent, rackmountable switches for workspace environments
  • Managed service providers delivering SDN-enabled deployments with remote control
  • Campus or hospitality networks needing VLAN, QoS, and multicast support
Technical Specifications
  • Ports: 24× 10/100/1000 Mbps RJ45, 4× 10G SFP+
  • Console: 1× RJ45, 1× Micro-USB
  • Switching Capacity: 128 Gbps
  • Forwarding Rate: 95.23 Mpps
  • MAC Address Table: 16K entries
  • Buffer Memory: 12 Mbit
  • Jumbo Frame: 9 KB
  • Power Consumption: Max 23.6 W
  • Dimensions: 440 × 180 × 44 mm (1U rackmount)
  • Design: Fanless, durable metal casing
Upgrade Your Network with SG3428X

Boost your infrastructure with the TP-Link Omada SG3428X. Powerful, quiet, and cloud-ready. Order today to transform your enterprise network.
