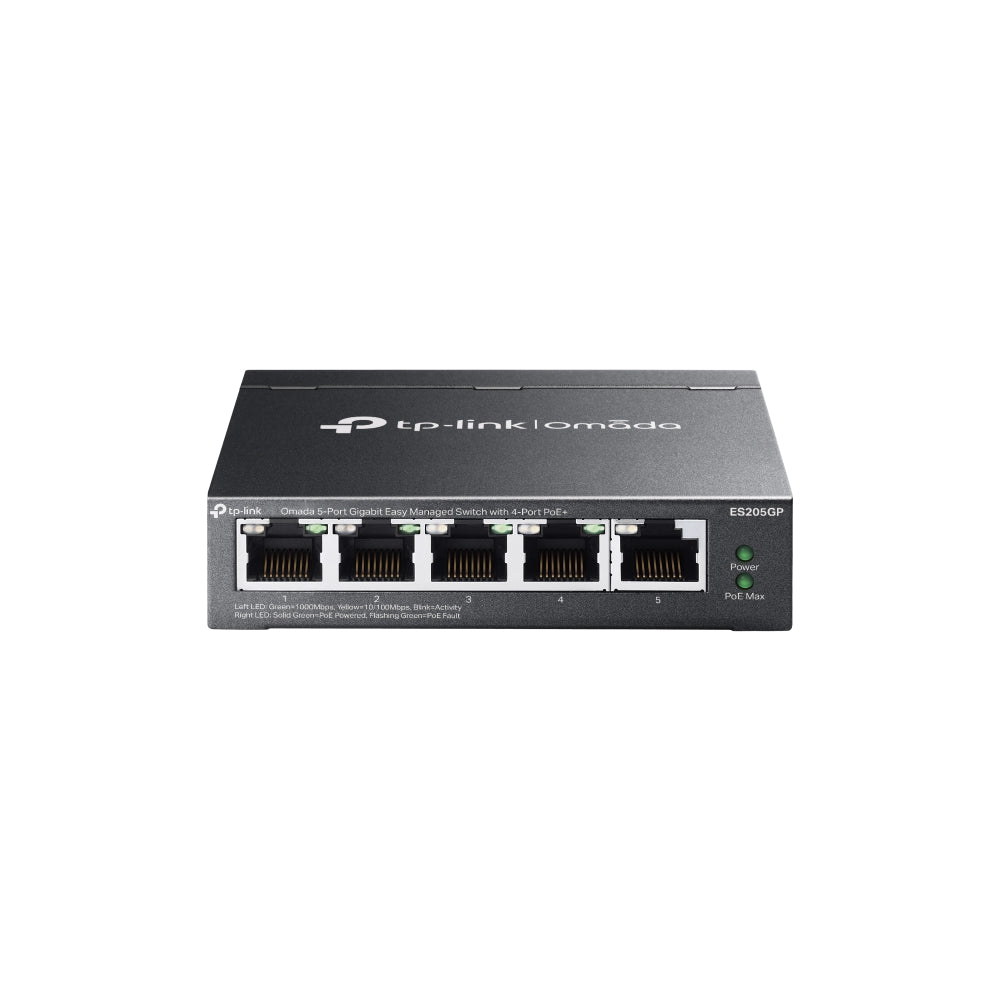

TP-Link Omada ES205GP 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
TP-Link Omada ES205GP 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

TP-Link Omada ES205GP 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

por Tp-Link
R$ 648,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 5× Gigabit RJ45, 4× PoE+ ports, 65W budget, fanless, cloud-managed, VLAN support [/shortdesc]

[properties]

Model TP-Link Omada ES205GP
Product Type 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Ports 5× 10/100/1000 Mbps RJ45 (Ports 1–4 PoE+ 802.3af/at compliant)
PoE Budget 65 W total, up to 30 W per port
Switching Capacity 10 Gbps
Forwarding Rate 7.4 Mpps
MAC Address Table 8K
Packet Buffer 4 Mbit
Jumbo Frame 15 KB
Form Factor Desktop / Wall Mount
Cooling Fanless
Housing Metal casing
Power Input 53.5VDC / 1.31A via external adapter
Surge Protection ±6 kV
Physical Security Lock slot
Dimensions (W × D × H) 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)
Weight Not specified by manufacturer
Operating Temperature 0 – 40°C (32 – 104 °F)
Storage Temperature −40 – 70°C (−40 – 158 °F)
Operating Humidity 10–90% non-condensing
Storage Humidity 5–90% non-condensing

[/properties]

[specifications]

PoE Features 802.3af/at PoE+; 4 ports; PoE Auto Recovery; up to 250 m PoE transmission (speed downgraded to 10 Mbps)
QoS Port-based, 802.1p, DSCP QoS; 8 priority queues; WRR scheduling; bandwidth control; storm control
Layer 2 Features Static Link Aggregation, Loop Prevention/Detection, 802.3x Flow Control, Port Mirroring (1:1, N:1), LLDP
L2 Multicast IGMP Snooping v1/v2/v3, Fast Leave
VLAN Port-based VLAN, MTU VLAN, 802.1Q Tag VLAN (max 32 groups, 4K VID)
Management Web-based GUI, DHCP Client, Cable Diagnostics, Device Discovery, Batch Config & Firmware Upgrade, Unified Config
Controller Support Omada Cloud-Based, Omada Hardware, Omada Software Controller
Zero-Touch Provisioning Yes (Omada Cloud-Based Controller required)
Cloud Access Yes (requires Omada Controller)
Switching Method Store-and-Forward
Certifications FCC, CE, RoHS

[/specifications]

[accesories]

Included in the Box ES205GP Switch; Power Adapter; Power Cord; Rubber Feet; Installation Guide

[/accesories]

The TP-Link Omada ES205GP is a 5-port Gigabit easy managed switch with 4 PoE+ ports and a total 65W power budget, delivering up to 30W per port. Designed for SMBs, surveillance setups, and wireless deployments, it integrates with the Omada SDN for centralized management via controller and app, enabling efficient, scalable rollouts.

  • 4× PoE+ Ports: Power IP cameras, APs, and VoIP phones with up to 30W per port and 65W total budget.
  • Centralized Cloud Management: Manage via Omada App, web, or hardware/software controllers; Zero-Touch Provisioning available with the Omada Cloud-Based Controller.
  • Reliable Surveillance Networking: Supports up to 250m PoE transmission, PoE auto recovery, VLAN, and IGMP snooping.
  • Quiet Fanless Design: Silent, compact metal casing with desktop or wall-mount flexibility.
  • Enhanced Security & QoS: Port isolation, traffic prioritization, storm control, and robust L2 features.
  • Deploying IP camera systems for offices, retail, or small campuses
  • Powering wireless access points for extended Wi-Fi coverage
  • Providing PoE connectivity for VoIP telephony solutions
  • Small business networks requiring cost-effective managed switching
  • Silent and compact deployments in workspaces or meeting rooms
  • Ports: 5× 10/100/1000 Mbps RJ45 (4× PoE+)
  • PoE Standard: IEEE 802.3af/at, 65W total, 30W per port
  • Switching Capacity: 10 Gbps
  • Forwarding Rate: 7.4 Mpps
  • MAC Address Table: 8K
  • Buffer Memory: 4 Mbit
  • Jumbo Frame: 15 KB
  • QoS: Port-based/802.1p/DSCP with 8 queues
  • VLAN Support: MTU, port-based, 802.1Q (up to 32 groups)
  • Dimensions: 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)

Deliver reliable Gigabit performance and PoE flexibility in one compact design. Order now and simplify your network deployment.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 5× Gigabit RJ45, 4× PoE+ ports, 65W budget, fanless, cloud-managed, VLAN support [/shortdesc]

[properties]

Model TP-Link Omada ES205GP
Product Type 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Ports 5× 10/100/1000 Mbps RJ45 (Ports 1–4 PoE+ 802.3af/at compliant)
PoE Budget 65 W total, up to 30 W per port
Switching Capacity 10 Gbps
Forwarding Rate 7.4 Mpps
MAC Address Table 8K
Packet Buffer 4 Mbit
Jumbo Frame 15 KB
Form Factor Desktop / Wall Mount
Cooling Fanless
Housing Metal casing
Power Input 53.5VDC / 1.31A via external adapter
Surge Protection ±6 kV
Physical Security Lock slot
Dimensions (W × D × H) 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)
Weight Not specified by manufacturer
Operating Temperature 0 – 40°C (32 – 104 °F)
Storage Temperature −40 – 70°C (−40 – 158 °F)
Operating Humidity 10–90% non-condensing
Storage Humidity 5–90% non-condensing

[/properties]

[specifications]

PoE Features 802.3af/at PoE+; 4 ports; PoE Auto Recovery; up to 250 m PoE transmission (speed downgraded to 10 Mbps)
QoS Port-based, 802.1p, DSCP QoS; 8 priority queues; WRR scheduling; bandwidth control; storm control
Layer 2 Features Static Link Aggregation, Loop Prevention/Detection, 802.3x Flow Control, Port Mirroring (1:1, N:1), LLDP
L2 Multicast IGMP Snooping v1/v2/v3, Fast Leave
VLAN Port-based VLAN, MTU VLAN, 802.1Q Tag VLAN (max 32 groups, 4K VID)
Management Web-based GUI, DHCP Client, Cable Diagnostics, Device Discovery, Batch Config & Firmware Upgrade, Unified Config
Controller Support Omada Cloud-Based, Omada Hardware, Omada Software Controller
Zero-Touch Provisioning Yes (Omada Cloud-Based Controller required)
Cloud Access Yes (requires Omada Controller)
Switching Method Store-and-Forward
Certifications FCC, CE, RoHS

[/specifications]

[accesories]

Included in the Box ES205GP Switch; Power Adapter; Power Cord; Rubber Feet; Installation Guide

[/accesories]

Compact Power and Intelligent Management for Modern Networks

The TP-Link Omada ES205GP is a 5-port Gigabit easy managed switch with 4 PoE+ ports and a total 65W power budget, delivering up to 30W per port. Designed for SMBs, surveillance setups, and wireless deployments, it integrates with the Omada SDN for centralized management via controller and app, enabling efficient, scalable rollouts.

Key Benefits & Features
  • 4× PoE+ Ports: Power IP cameras, APs, and VoIP phones with up to 30W per port and 65W total budget.
  • Centralized Cloud Management: Manage via Omada App, web, or hardware/software controllers; Zero-Touch Provisioning available with the Omada Cloud-Based Controller.
  • Reliable Surveillance Networking: Supports up to 250m PoE transmission, PoE auto recovery, VLAN, and IGMP snooping.
  • Quiet Fanless Design: Silent, compact metal casing with desktop or wall-mount flexibility.
  • Enhanced Security & QoS: Port isolation, traffic prioritization, storm control, and robust L2 features.
Ideal Use Cases
  • Deploying IP camera systems for offices, retail, or small campuses
  • Powering wireless access points for extended Wi-Fi coverage
  • Providing PoE connectivity for VoIP telephony solutions
  • Small business networks requiring cost-effective managed switching
  • Silent and compact deployments in workspaces or meeting rooms
Technical Specifications
  • Ports: 5× 10/100/1000 Mbps RJ45 (4× PoE+)
  • PoE Standard: IEEE 802.3af/at, 65W total, 30W per port
  • Switching Capacity: 10 Gbps
  • Forwarding Rate: 7.4 Mpps
  • MAC Address Table: 8K
  • Buffer Memory: 4 Mbit
  • Jumbo Frame: 15 KB
  • QoS: Port-based/802.1p/DSCP with 8 queues
  • VLAN Support: MTU, port-based, 802.1Q (up to 32 groups)
  • Dimensions: 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)
Upgrade Your Network with ES205GP Today

Deliver reliable Gigabit performance and PoE flexibility in one compact design. Order now and simplify your network deployment.
