[shortdesc]

• TP-Link ER7212PC is a compact 3-in-1 Gigabit VPN router combining routing, PoE+ switching, and Omada SDN controller functionality with 110W PoE budget, advanced VPN support, and centralized network management

[/shortdesc]

[specifications] [/specifications]

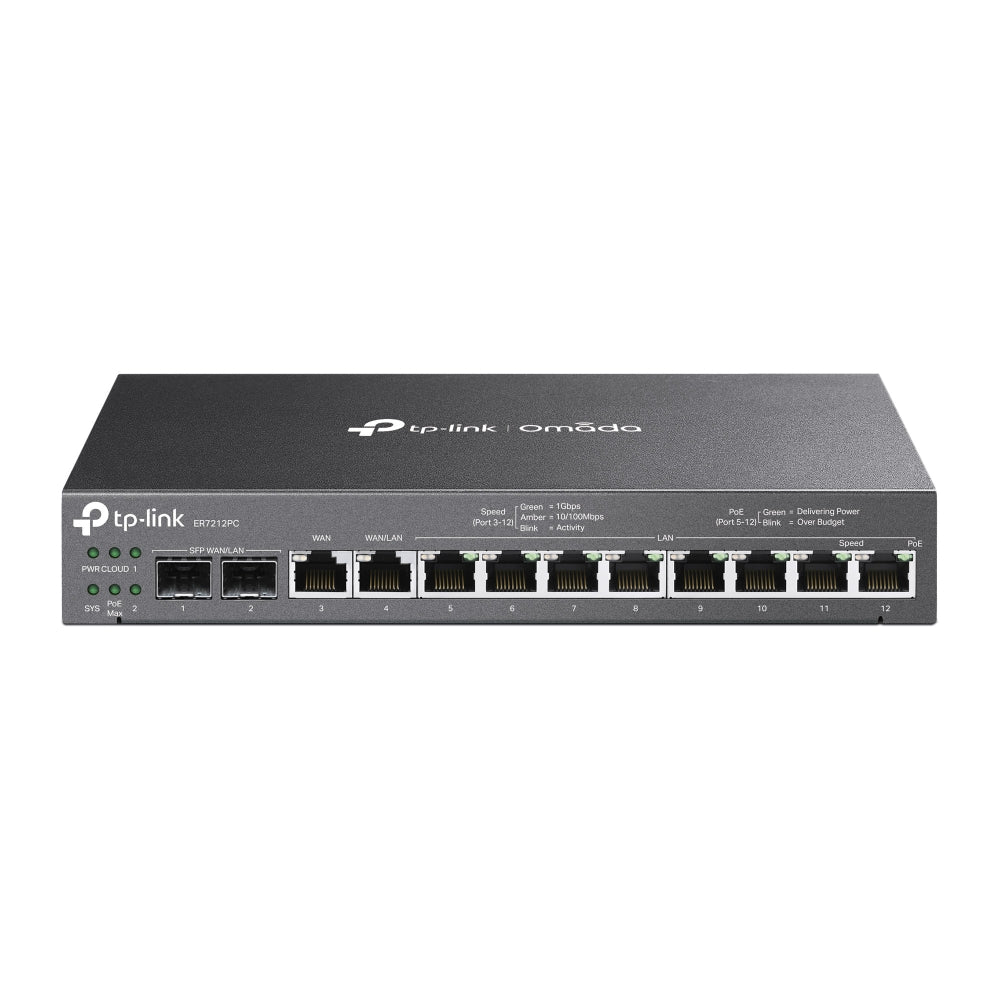

TP-Link ER7212PC Omada 3-in-1 Gigabit VPN Router

The TP-Link ER7212PC integrates three essential functions into one powerful device: a Gigabit VPN router, an 8-port PoE+ switch, and a built-in Omada SDN controller. Designed for small businesses and branch offices, it supports centralized management of up to 10 Omada access points and 2 switches. With 110W PoE budget across 8 PoE+ LAN ports, it easily powers IP cameras, VoIP phones, and access points. The unit offers four WAN ports, VPN support for IPsec, L2TP, PPTP, OpenVPN, WireGuard, and SSL tunnels, and an intuitive fanless design for silent operation. This all-in-one networking solution drastically reduces hardware costs and simplifies installation and management through the Omada app and cloud-based platform.

• 3-in-1 Design: Combines router, PoE+ switch, and Omada SDN controller in a compact steel enclosure.
• 110W PoE+ Output: Supports up to 8 PoE+ devices with a total power budget of 110W.
• Omada SDN Management: Centrally manage Omada EAPs and switches via cloud, app, or web interface.
• High-Security VPN: Supports IPsec, OpenVPN, PPTP, L2TP, SSL, and WireGuard VPN protocols.
• Advanced Routing & NAT: Static & policy routing, bandwidth control, NAT forwarding, and load balancing.
• Flexible Deployment: Compact fanless design supports desktop, wall, and optional rack mounting.
• Up to 4 WAN Ports: Multi-WAN capability enhances redundancy and internet stability.
• Robust Security: Stateful firewall, access control lists, URL filtering, and DoS protection.

• Ports: 2× Gigabit SFP, 1× Gigabit WAN, 1× Gigabit WAN/LAN, 8× Gigabit LAN (PoE+)
• PoE Budget: 110W total (IEEE 802.3af/at)
• Max Concurrent Sessions: 24,980
• Max NAT Throughput: Up to 948 Mbps
• IPsec VPN Throughput: Up to 168 Mbps (AES256)
• OpenVPN Throughput: 34 Mbps
• SSL VPN Tunnels: 80
• Packet Forwarding Rate: 66-Byte: 154,069 pps / 1518-Byte: 81,193 pps
• Surge Protection: 4kV
• Management: Omada App, Web UI, SNMP, Zero-Touch Provisioning
• Power Supply: 53.5VDC/2.43A Adapter
• Dimensions: 226 × 131 × 35 mm (8.9 × 5.2 × 1.4 in)
• Mounting: Desktop, wall, or rack-mount (kit sold separately)
• Certifications: CE, FCC, RoHS
• Operating Temperature: 0–45°C (32–113°F)
• Fanless Design: Silent and reliable for office deployment
