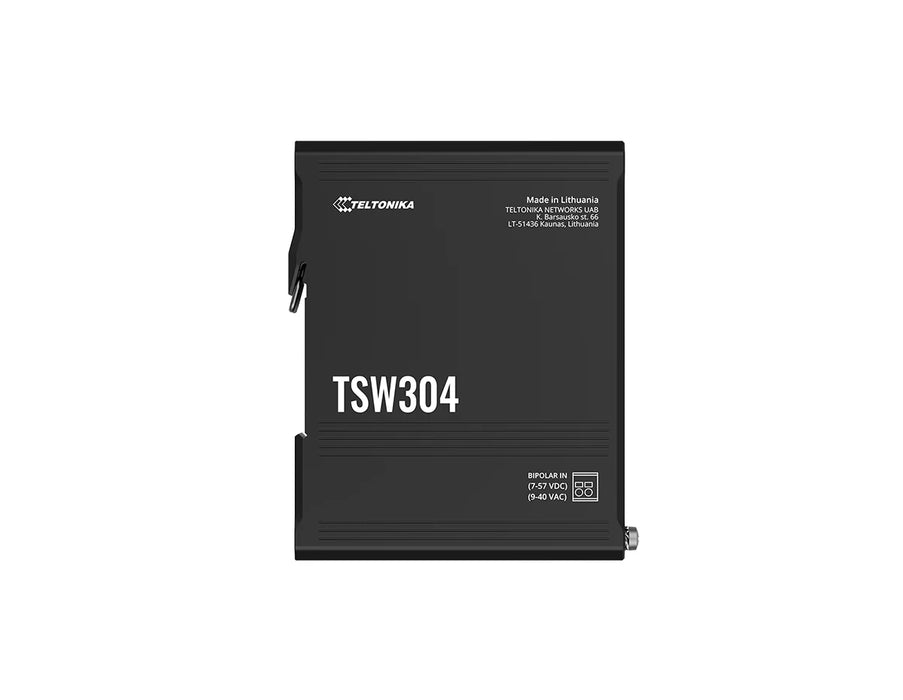

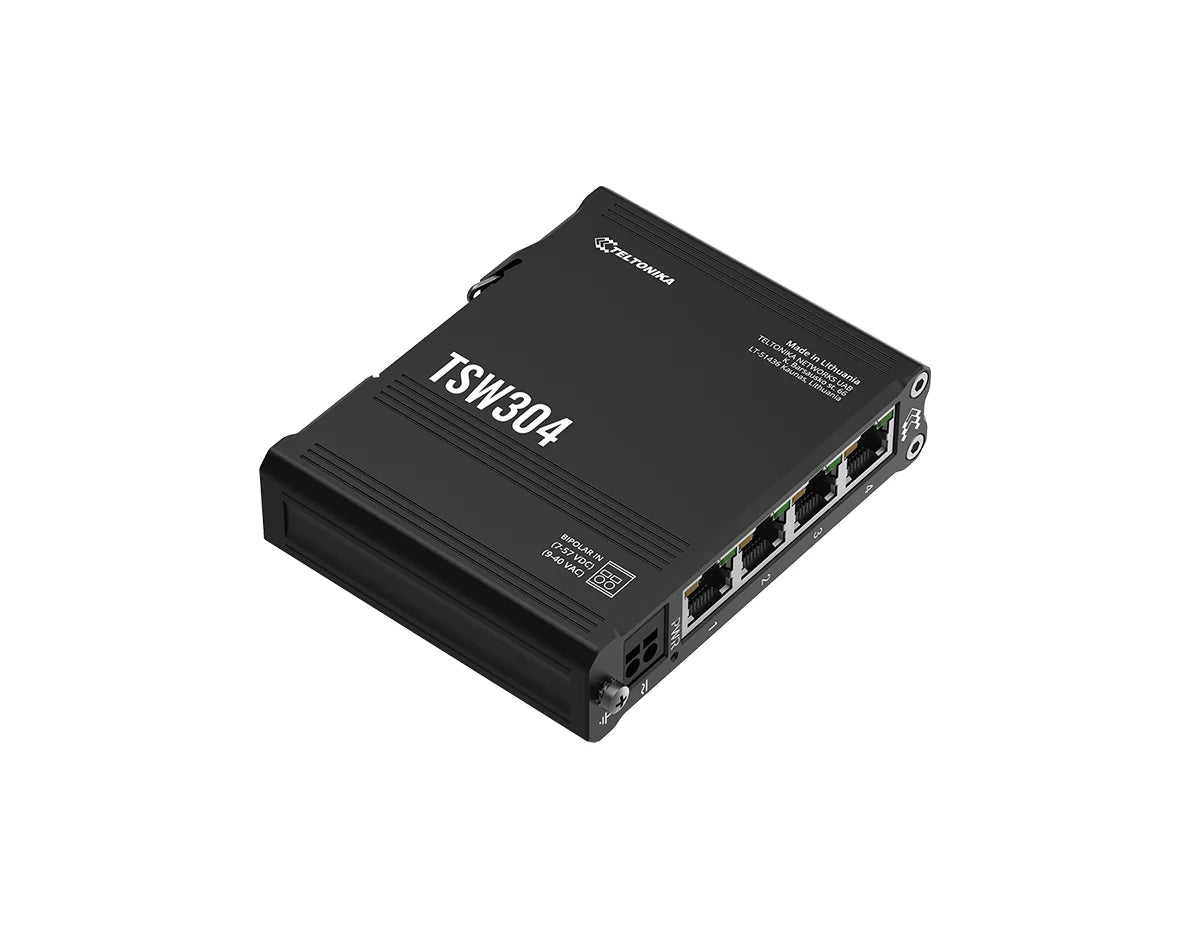

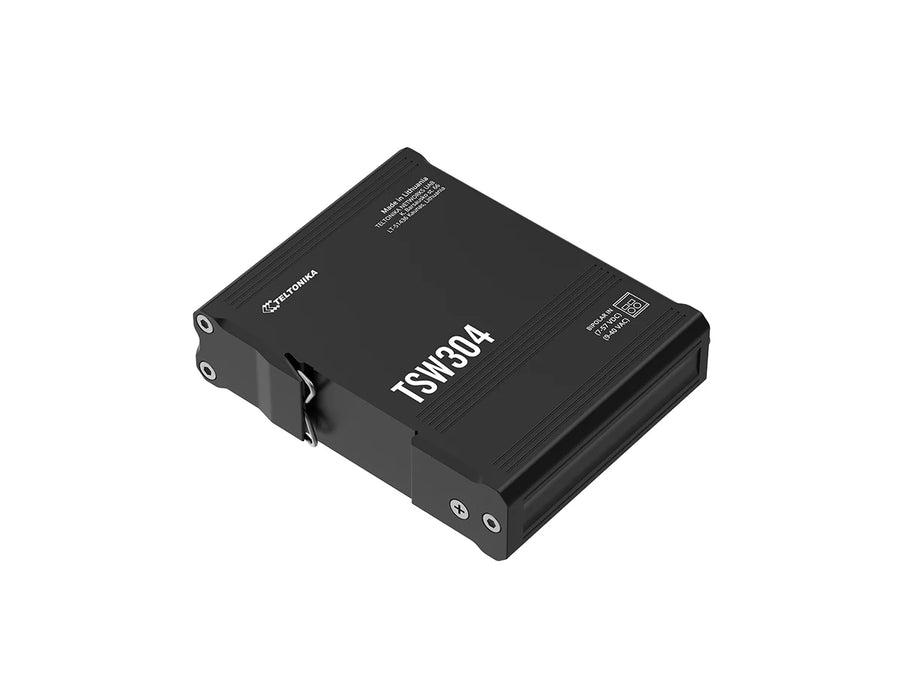

Teltonika TSW304 Industrial 4-Port Gigabit Ethernet Switch (TSW304000001)
Clique ou role para ampliar
Toque ou belisque para ampliar
Teltonika TSW304 Industrial 4-Port Gigabit Ethernet Switch (TSW304000001)
Clique ou role para ampliar
Toque ou belisque para ampliar
Teltonika TSW304 Industrial 4-Port Gigabit Ethernet Switch (TSW304000001)
Teltonika TSW304 Industrial 4-Port Gigabit Ethernet Switch (TSW304000001)

Teltonika TSW304 Industrial 4-Port Gigabit Ethernet Switch (TSW304000001)

por Teltonika
R$ 1.320,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 4x Gigabit RJ45 ports, unmanaged switch, DIN rail mount, industrial-grade aluminum housing, low power consumption [/shortdesc]

[properties]

Model TSW304
SKU TSW304000001
Brand Teltonika
Product Type Industrial Ethernet Switch
Port Count 4 x RJ45 ports
Port Speed 10/100/1000 Mbps
PoE Passive PoE input (Mode B, 9-30 VDC, not IEEE 802.3af/at/bt compliant)
Switching Capacity 8 Gbps
MAC Address Table 2K entries
Jumbo Frame Support 9216 bytes
Mounting Integrated DIN rail bracket; wall mount and flat surface (additional kit required)
Casing Aluminium housing
Dimensions (W x H x D) 102 x 25 x 81.5 mm
Weight 210 g
Ingress Protection IP30
Operating Temperature -40 C to 75 C
Operating Humidity 5% to 95% non-condensing
Power Input 7-57 VDC; 9-40 VAC
Power Consumption Idle: 0.26 W; Max: 1.44 W

[/properties]

[specifications]

Ethernet Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Auto Features Auto MDI/MDIX crossover
Industrial Protocols Profinet Class A (available with optional order code)
Packet Buffer 128 KB
Interfaces 4 x RJ45 Ethernet ports; 1 x 2-pin DC power socket; 1 x grounding screw
Status Indicators 8 x Ethernet LEDs; 1 x Power LED
Passive PoE Mode B; 9-30 VDC input via ETH1
Safety Standards EN IEC 62368-1:2020+A11:2020
Environmental Standards IEC 60068-2-6:2007; IEC 60068-2-27:2008; IEC 60068-2-31:2008
Certifications CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

[/specifications]

[accesories]

Included TSW304 device; Quick Start Guide; Packaging box

[/accesories]

The Teltonika TSW304 is a rugged industrial Ethernet switch designed for reliable, high-speed connectivity in demanding environments. With its compact DIN rail form factor and durable aluminum housing, this switch delivers stable Gigabit networking while operating efficiently in extreme temperatures and industrial conditions.

  • 4 Gigabit Ethernet Ports: Equipped with 4 x 10/100/1000 Mbps RJ45 ports supporting auto MDI/MDIX, ensuring seamless device connectivity without manual configuration.
  • Industrial-Grade Durability: Built with a robust aluminum housing and IP30 rating, designed to withstand harsh environments and temperature ranges from -40 C to 75 C.
  • Compact DIN Rail Design: Integrated DIN rail mounting enables quick installation in control cabinets and industrial enclosures with minimal space requirements.
  • Low Power Consumption: Energy-efficient operation with only 0.26 W idle and 1.44 W maximum power usage, ideal for cost-sensitive deployments.
  • Flexible Power Input: Supports wide voltage ranges (7-57 VDC or 9-40 VAC) with optional passive PoE input on ETH1 for versatile deployment scenarios.
  • Industrial automation and factory floor networking
  • Transportation systems and smart infrastructure deployments
  • Energy and utility monitoring systems
  • Remote IoT and edge connectivity applications
  • Control cabinet and DIN rail-based installations
  • Ports: 4 x RJ45 10/100/1000 Mbps
  • Switching Bandwidth: 8 Gbps (non-blocking)
  • MAC Address Table: 2K entries
  • Jumbo Frame Support: Up to 9216 bytes
  • Power Input: 7-57 VDC or 9-40 VAC
  • Power Consumption: 0.26 W idle, 1.44 W max
  • Operating Temperature: -40 C to 75 C
  • Ingress Protection: IP30
  • Dimensions: 102 x 25 x 81.5 mm
  • Mounting: DIN rail, wall or flat surface (with kit)

Ensure stable and efficient connectivity in harsh environments with the Teltonika TSW304. Order today to optimize your industrial network infrastructure.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 4x Gigabit RJ45 ports, unmanaged switch, DIN rail mount, industrial-grade aluminum housing, low power consumption [/shortdesc]

[properties]

Model TSW304
SKU TSW304000001
Brand Teltonika
Product Type Industrial Ethernet Switch
Port Count 4 x RJ45 ports
Port Speed 10/100/1000 Mbps
PoE Passive PoE input (Mode B, 9-30 VDC, not IEEE 802.3af/at/bt compliant)
Switching Capacity 8 Gbps
MAC Address Table 2K entries
Jumbo Frame Support 9216 bytes
Mounting Integrated DIN rail bracket; wall mount and flat surface (additional kit required)
Casing Aluminium housing
Dimensions (W x H x D) 102 x 25 x 81.5 mm
Weight 210 g
Ingress Protection IP30
Operating Temperature -40 C to 75 C
Operating Humidity 5% to 95% non-condensing
Power Input 7-57 VDC; 9-40 VAC
Power Consumption Idle: 0.26 W; Max: 1.44 W

[/properties]

[specifications]

Ethernet Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Auto Features Auto MDI/MDIX crossover
Industrial Protocols Profinet Class A (available with optional order code)
Packet Buffer 128 KB
Interfaces 4 x RJ45 Ethernet ports; 1 x 2-pin DC power socket; 1 x grounding screw
Status Indicators 8 x Ethernet LEDs; 1 x Power LED
Passive PoE Mode B; 9-30 VDC input via ETH1
Safety Standards EN IEC 62368-1:2020+A11:2020
Environmental Standards IEC 60068-2-6:2007; IEC 60068-2-27:2008; IEC 60068-2-31:2008
Certifications CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

[/specifications]

[accesories]

Included TSW304 device; Quick Start Guide; Packaging box

[/accesories]

Compact Industrial Switching Built for Harsh Environments

The Teltonika TSW304 is a rugged industrial Ethernet switch designed for reliable, high-speed connectivity in demanding environments. With its compact DIN rail form factor and durable aluminum housing, this switch delivers stable Gigabit networking while operating efficiently in extreme temperatures and industrial conditions.

Key Benefits & Features
  • 4 Gigabit Ethernet Ports: Equipped with 4 x 10/100/1000 Mbps RJ45 ports supporting auto MDI/MDIX, ensuring seamless device connectivity without manual configuration.
  • Industrial-Grade Durability: Built with a robust aluminum housing and IP30 rating, designed to withstand harsh environments and temperature ranges from -40 C to 75 C.
  • Compact DIN Rail Design: Integrated DIN rail mounting enables quick installation in control cabinets and industrial enclosures with minimal space requirements.
  • Low Power Consumption: Energy-efficient operation with only 0.26 W idle and 1.44 W maximum power usage, ideal for cost-sensitive deployments.
  • Flexible Power Input: Supports wide voltage ranges (7-57 VDC or 9-40 VAC) with optional passive PoE input on ETH1 for versatile deployment scenarios.
Ideal Use Cases
  • Industrial automation and factory floor networking
  • Transportation systems and smart infrastructure deployments
  • Energy and utility monitoring systems
  • Remote IoT and edge connectivity applications
  • Control cabinet and DIN rail-based installations
Technical Specifications
  • Ports: 4 x RJ45 10/100/1000 Mbps
  • Switching Bandwidth: 8 Gbps (non-blocking)
  • MAC Address Table: 2K entries
  • Jumbo Frame Support: Up to 9216 bytes
  • Power Input: 7-57 VDC or 9-40 VAC
  • Power Consumption: 0.26 W idle, 1.44 W max
  • Operating Temperature: -40 C to 75 C
  • Ingress Protection: IP30
  • Dimensions: 102 x 25 x 81.5 mm
  • Mounting: DIN rail, wall or flat surface (with kit)
Upgrade Your Industrial Network with Reliable Switching

Ensure stable and efficient connectivity in harsh environments with the Teltonika TSW304. Order today to optimize your industrial network infrastructure.
