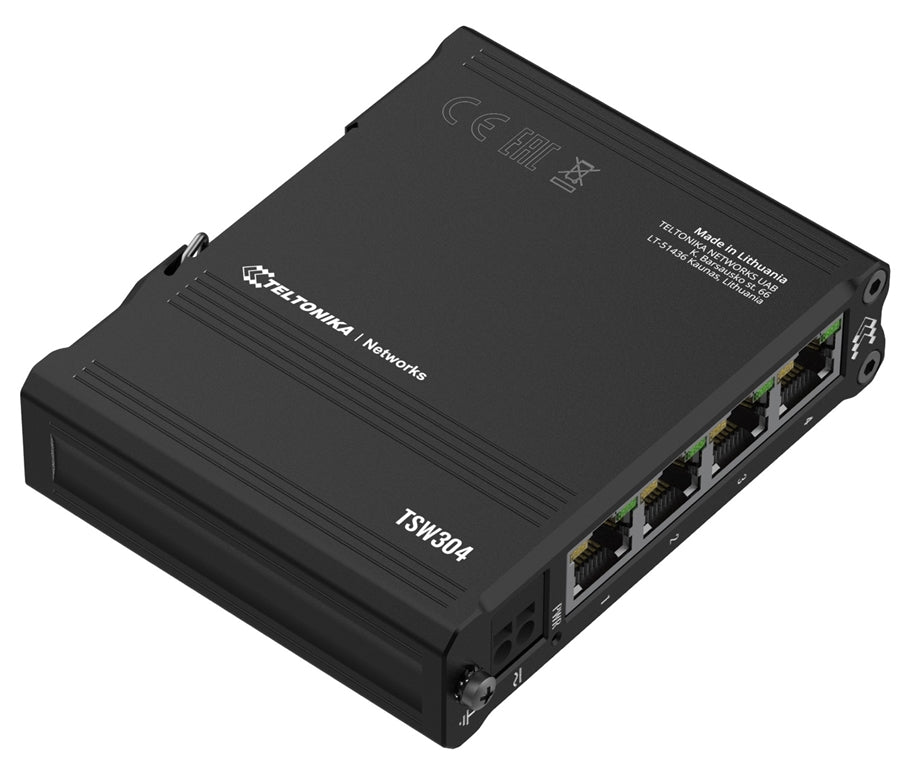

Teltonika TSW304 Compact Industrial Gigabit Switch with 4 Ports (TSW304000000)
Teltonika TSW304 Compact Industrial Gigabit Switch with 4 Ports (TSW304000000)

Teltonika TSW304 Compact Industrial Gigabit Switch with 4 Ports (TSW304000000)

por Teltonika
R$ 1.320,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 4× Gigabit RJ45 ports, 8 Gbps switching, 7–57 VDC input, -40 to 75°C, DIN-rail mount, IP30 [/shortdesc]

[properties]

Model TSW304
Product Type Industrial Ethernet Switch
Ethernet Ports 4 × RJ45 10/100/1000 Mbps; auto MDI/MDIX
Ethernet Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Non-blocking Bandwidth 8 Gbps
Jumbo Frame Support 9216 bytes
MAC Address Table 2K entries
Packet Buffer 128 KB
Industrial Protocols Profinet Class A conformance (optional order code)
Power Connector 2-pin industrial DC power socket
Input Voltage Range 7–57 VDC; 9–40 VAC
Passive PoE (Power-in) Via ETH1, Mode B, 9–30 VDC; not compatible with IEEE 802.3af/at/bt
Power Consumption Idle: 0.26 W / Max: 1.44 W
Status LEDs 8 × ETH status LEDs; 1 × Power LED
RJ45 LED Meaning Orange on: link 10/100 Mbps; Orange blinking: active; Green on: link 1000 Mbps
Casing Material Aluminium housing
Dimensions (W × H × D) 102 × 25 × 81.5 mm
Weight 210 g
Mounting Options Integrated DIN rail bracket; wall/flat surface (additional kit needed)
Operating Temperature −40 °C to 75 °C
Operating Humidity 5% to 95% non-condensing
Ingress Protection IP30
Regulatory Approvals CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
Safety Standards EN IEC 62368-1:2020+A11:2020; IEC 60068-2-6/-27/-31

[/properties]

[specifications]

Ports & Speed 4 × ETH ports, 10/100/1000 Mbps; supports auto MDI/MDIX crossover
Supported Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Performance Non-blocking bandwidth 8 Gbps; Packet buffer 128 KB; MAC table 2K; Jumbo frame 9216 bytes
Power Input 2-pin DC socket; 7–57 VDC or 9–40 VAC
Passive PoE (in) Power-in through ETH1, Mode B, 9–30 VDC; not IEEE 802.3af/at/bt compatible
Power Consumption Idle 0.26 W; Max 1.44 W
Status Indicators 8 × ETH LEDs; 1 × Power LED
RJ45 LED Logic Orange on: 10/100 link; Orange blinking: activity; Green on: 1000 Mbps link
Enclosure Aluminium; integrated DIN rail bracket; wall/flat surface mounting (kit required)
Physical Size 102 × 25 × 81.5 mm; 210 g
Environmental Operating −40 °C to 75 °C; 5–95% RH non-condensing; IP30
Compliance CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM; Safety: EN IEC 62368-1:2020+A11:2020; IEC 60068-2-6/-27/-31
Industrial Protocols Profinet Class A conformance (optional)

[/specifications]

[accesories]

Included TSW304 unit; QSG (Quick Start Guide); Packaging box
Optional – Mounting Wall-mount and flat-surface mounting kits (required for those methods)
Optional – Version Profinet Class A conformance variant (order code option)

[/accesories]

Teltonika’s TSW304 is a compact, unmanaged 4-port Gigabit Ethernet switch engineered for control panels and cabinets where space, power, and uptime matter. An aluminum IP30 enclosure, wide 7–57 VDC input and -40 to 75°C operating range keep links stable in harsh environments, while a non-blocking 8 Gbps fabric ensures full-speed traffic across all ports.

  • 4× GbE RJ45: Auto-MDI/MDIX 10/100/1000 Mbps ports for flexible copper uplinks and edge devices.
  • Wire-speed switching: 8 Gbps non-blocking bandwidth with jumbo frame support up to 9216 bytes for efficient payloads.
  • Industrial power options: 2-pin DC input (7–57 VDC or 9–40 VAC) with passive PoE power-in via ETH1 (Mode B, 9–30 VDC) for simplified installs.
  • Hardened build: -40 to 75°C, IP30 aluminum housing, integrated DIN-rail bracket for fast, secure mounting.
  • Standards & compliance: IEEE 802.3i/u/ab/x/az support with CE, FCC, UKCA and other certifications for global deployments.
  • Industrial automation panels and PLC networks needing compact GbE aggregation
  • Transportation and building systems requiring extended-temperature switching
  • Energy, utilities, and SCADA cabinets with DIN-rail power distribution
  • IP cameras and sensors at the edge where unmanaged simplicity is preferred
  • Ports: 4× RJ45 10/100/1000 Mbps (auto MDI/MDIX)
  • Switching capacity: 8 Gbps (non-blocking)
  • Buffer / MAC: 128 KB packet buffer, 2K MAC entries
  • Jumbo frames: Up to 9216 bytes
  • Power input: 7–57 VDC or 9–40 VAC via 2-pin socket
  • Passive PoE-in: ETH1, Mode B, 9–30 VDC
  • Power draw: 0.26 W idle / 1.44 W max
  • Operating range: -40 to 75°C; 5–95% RH non-condensing
  • Enclosure & size: Aluminum, 102 × 25 × 81.5 mm; 210 g
  • Mounting: Integrated DIN-rail; wall/flat mount with kit

Power-efficient, standards-compliant, and built for harsh sites, the TSW304 delivers reliable Gigabit switching in minutes. Order today. Please note: An additional shipping fee may apply to this product. Kindly contact us regarding the shipping fee after placing your order.
