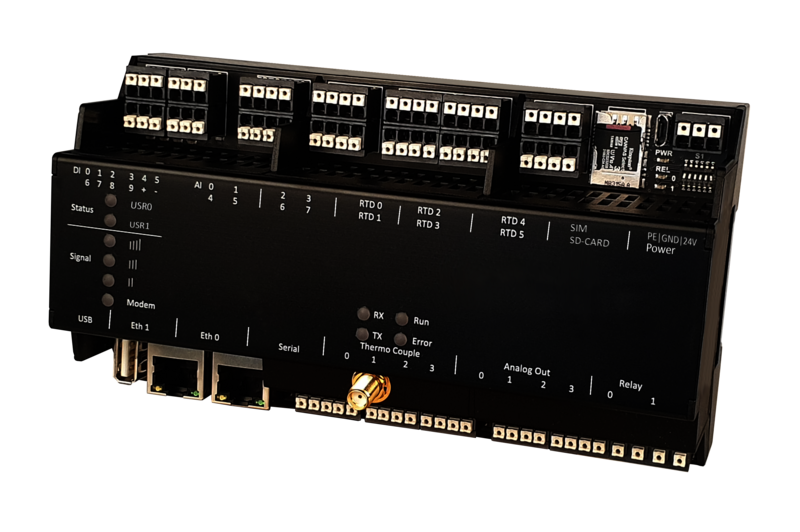

sysWORXX CTR-750 Controller
sysWORXX CTR-750 Controller

sysWORXX CTR-750 Controller

por SYS TEC electronic GmbH
R$ 11.148,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

Our sysWORXX CTR-750 is a Linux-based compact controller that offers extended connectivity and customized field connection with an integrated LTE modem. It is fast, powerful, and versatile, and can be integrated into applications in the shortest possible time. It supports all common high-level programming languages such as C/C++, Rust, C# (Mono), Java, and Python, and can be programmed as a PLC in IEC 61131-3 using the OpenPCS programming environment.

The low-code environment Node-RED can be used immediately for an easy start, even for non-computer scientists. The CTR module is ready for use with all common cloud providers thanks to standard protocols such as MQTT and REST. The integrated LTE modem enables connection to cloud or IoT platforms directly from the field. Our sysWORXX CTR-750 thus takes condition monitoring directly on site in the field to a new level.

Product benefits:

  • Support of modern high-level languages (execution of IEC 61131-3 PLC programs and other Linux applications)
  • Independent Ethernet interfaces for a safe separation of enterprise IT and shop floor OT
  • Use of protocols such as CANopen (incl. CANopen Manager Service for integration of other CANopen modules)
  • Support of communication and data exchange with other devices via Modbus protocol
  • Shielded backplane extension bus
  • Suitable for DIN-rail mounting

Application Scenarios

  • Collection, consolidation and analysis of data points from system to be monitored
  • Condition Monitoring (permanent status monitoring)
  • Energy Management (Smart Building, Smart Industry)
  • Predictive Maintenance
  • Integration into Mesh net
  • Narrowband functionality (from 2018)

CTR-700 speaks to the language of your employees.

The special feature of the sysWORXX CTR-700 is the software. It can be programmed via IEC 61131-3 as well as in various IoT languages (C#/.Net, Node-RED, Java, Python). Thus, it is not necessary to require an expensive external service. The controller speaks the language of the employees.

Programming Languages

IoT Languages

  • C#/.Net
  • Node-RED
  • Java
  • Python

Further Languages/Interfaces/Protocols

  • MQTT
  • OPC UA
  • OpenPCS
  • C/C++
  • SD
  • CANopen
  • Modbus
  • TCP/IP

Particularities

  • Support of modern high-level languages
  • Simultaneous execution of IEC 61131-3 PLC programs and other Linux applications
  • Two independent Ethernet Interfaces allow strict and secure separation of Enterprise IT and Shop floor OT
  • Use of higher layer protocols as CANopen (incl. CANopen-Manager-Service an easy integration of other CANopen modules)
  • Support of communication and data exchange with other devices via Modbus protocols by extended Modbus/TCP function blocks
  • Backplane expansion bus, shielded between the module underside and the DIN rail
  • Suitable for DIN rail mounting

Direct Connection via Extension module

Via the backplane expansion bus, the CTR-700 can be easily integrated into mesh networks using our extension module. We use our partner software for this solution - Wirepas Connectivity.

Wirepas Connectivity Software provides a connectivity solution optimized for performance, bandwidth, range and latency. The technology is hardware-independent - the protocol runs on every wireless chip. The Mesh net solution allows customers to run the network on batteries for up to 15 years. With this MeshNet solution, they are able to flexibly optimize the connection solution for the application in terms of performance, bandwidth, range and latency.

Planned Launch: Q2/2018

With the new TeamViewer IoT-integration for our sysWORXX CTR-700 you can now access your devices and make any necessary adjustments from anywhere and at any time. No matter, if you are at home, on the road or simply at a different spot with your office building.

All TeamViewer versions use full encryption. Encryption is based on 2048bit RSA private/public key exchange and 256 Bit AES session encoding. This uses the same security level as https/SSL and is considered completely safe by today's standards. The key exchange also guarantees that the data transfer is completely encoded from client to client and that any routers or servers in between (including our routers) are unable to read or analyze the data stream. Security and privacy have always been a top priority during development: https://www.teamviewer.com/security/.
Property Value
The information herein is subject to change without notice.
Physical
Size (height x width x depth): 60 x 162 x 91 mm
Operating Temperature: 0ºC … +70ºC
Humidity: 10 … 95% non-condensing (VDE 0110)
CPU:
Processor: NXP i.MX7
Processor Core: Dual Cortex-A7
MPU speed (MHz): 1000
MIPS: 3800
RTC: Yes
Temp-Sensor: Yes
Memory:
RAM: 1024 MB
Storage: 8GB eMMC
Software:
Basic Installation: Linux OS (Debian Linux, Jessie 8.10), I/O Drivers, Node-RED with nodes for I/O drivers, OpenJDK & Mono
Additional Licenses: OpenPCS RT, OPC UA server for OpenPCS
Optional: Third Party Software; downloadable via Debian OS repositories
Connectivity:
ETH: 2 (secure separation of IT & OT)
CAN: 2 (CANopen, CAN layer 2)
SIO: 3 (RS485, RS232 freely available)
USB Host: 1
SD Card: 1
Linux Console: 1 (Version as USB or RS232
Cloud: Prepared for use with cloud providers such as IBM Watson
I/O Interfaces
DI 24V: 16 (data galvanically decoupled)
A/B Encoder 2 (alternate functions – depending on used A/B-Encoder)
High-speed Counter 2 (alternate functions – depending on used High-speed Counter)
DO 24 VDC, 0.5A 16
PWM 2 (alternate functions – depending on used PWM channel)
Relais 230 VAC, 1 A 2
AIn 4 (configurable: 0 … 10VDC, 0 … 20 mA / 4 … 20 mA
Controls
Switches: Run/Stop; Config, Reset, Boot
Status LEDs Power CPU; Power Periphery, Run, Error, extras
Service Access SFTP/SSH
System Manual
System Manual sysWORXX CTR-700

Datasheet
Datasheet CTR-700
Brochure
Brochure sysWORXX CTR-700
Download
OpenPCS IEC 61131-3 programming system<
Version V7.1.2 RV1.00
Download
SYS TEC electronic - specific extension for OpenPCS / IEC 61131-3
Version 7.1.2 RV1.00
