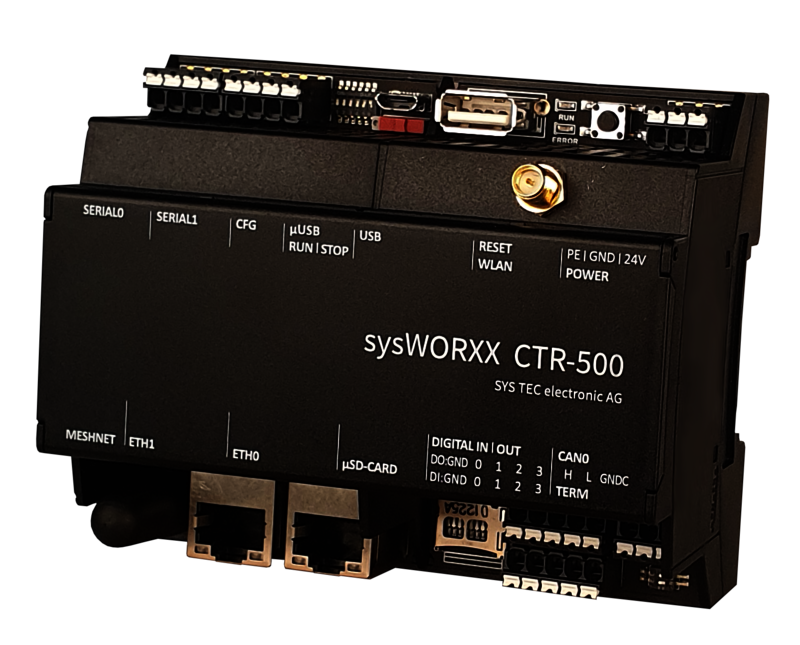

sysWORXX CTR-500 Controller
sysWORXX CTR-500 Controller

sysWORXX CTR-500 Controller

por SYS TEC electronic GmbH
R$ 8.388,00
R$ 6.948,00
Pedir por e-mail
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

The sysWORXX CTR-500 is as a fieldbus gateway, edge controller and compact controller. It is a member of our sysWORXX Controller family.

Fast, compact and powerful like its big brother, the CTR-700, it supports easy application development with the low-code environment Node-RED in a very short time. The CTR-500 can also be programmed as a PLC in IEC 61131-3 using the OpenPCS programming environment.

Application Scenarios:

  • Collection, consolidation and analysis of data points from system to be monitored
  • Condition Monitoring (permanent status monitoring)
  • Energy Management (Smart Building, Smart Industry)
  • Predictive Maintenance
  • Integration into Mesh net
  • Narrowband functionality (from 2018)

CTR-500 speaks to the language of your employees:

The special feature of the sysWORXX CTR-500 is the software. It can be programmed via IEC 61131-3 as well as in various IoT languages (C#/.Net, Node-RED, Java, Python). Thus, it is not necessary to require an expensive external service. The controller speaks the language of the employees.

Programming Languages:

IoT Languages

  • C#/.Net
  • Node-RED
  • Java
  • Python

Further Languages/Interfaces/Protocols:

  • MQTT
  • OPC UA
  • OpenPCS
  • C/C++
  • SD
  • CANopen
  • Modbus
  • TCP/IP

Benefits:

  • Support of modern high-level languages
  • Simultaneous execution of IEC 61131-3 PLC programs and other Linux applications
  • Two independent Ethernet Interfaces allow strict and secure separation of Enterprise IT and Shop floor OT
  • Use of higher-layer protocols as CANopen (incl. CANopen-Manager-Service an easy integration of other CANopen modules)
  • Support of communication and data exchange with other devices via Modbus protocols by extended Modbus/TCP function blocks
  • Backplane expansion bus, shielded between the module underside and the DIN rail
  • Suitable for DIN rail mounting
Property Value
The information herein is subject to change without notice.
Physical
Size (height x width x depth): 60 x 108 x 91 mm
Operating Temperature: 0ºC … +55ºC
Humidity: 10 … 95% non-condensing (VDE 0110)
CPU:
Processor: NXP i.MX7
Processor Core: Dual Cortex-A7
MPU speed (MHz): 1000
MIPS: 3800
RTC: Yes
Temp-Sensor: Yes
Memory:
RAM: 1024 MB
Storage: 8GB eMMC
Software:
Basic Installation: Linux OS (Debian Linux, Jessie 8.10), I/O Drivers, Node-RED with nodes for I/O drivers, OpenJDK & Mono
Additional Licenses: OpenPCS RT, OPC UA server for OpenPCS
Optional: Third Party Software; downloadable via Debian OS repositories
Connectivity:
ETH: 2 (each with its own MAC address)
CAN: 2 (CANopen, CAN layer 2)
SIO: 2 (RS485, RS232)
USB Host: 1
SD Card: 1
Linux Console: 1 (Version as USB or RS232)
Cloud: Prepared for use with cloud providers such as IBM Watson
I/O Interfaces
DI 24V: 16 (data galvanically decoupled)
A/B Encoder 2 (alternate functions – depending on A/B-Encoder)
High-speed Counter 2 (alternate functions – depending on High-speed Counter)
DO 24 VDC, 0.5A 16
PWM 2 (alternate functions – depending on PWM channel)
Relais 230 VAC, 1 A 2
AIn 4 (configurable: 0 … 10VDC, 0 … 20 mA 4 … 20 mA
Controls
Switches: Run/Stop; Config, Reset, Boot
Status LEDs Power CPU; Power Periphery, Run, Error, extras
Service Access SFTP/SSH
System Manual
System Manual sysWORXX CTR-700
Datasheet
Datasheet CTR-700
Brochure
Brochure sysWORXX CTR-700
