SYS TEC USB-CANmodul2 (dual CAN, opto-isolated)

SYS TEC USB-CANmodul2 (dual CAN, opto-isolated)

por SYS TEC electronic GmbH
R$ 4.428,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

Designed to provide a most flexible, yet cost-efficient CAN-bus interface solution for connecting CAN to the PC via USB. Messages are tunneled transparently and therefore support all common higher-layer CAN-based protocols, such as CANopen, SDS, DeviceNet or J1939. Its new 32-bit CPU core ensures reliable communication even at high busload and provides precise message time stamps.

The PC driver allows for easy plug & play installation and supports simultaneous operation of up to 64 USB-CANmodul2 on the same PC. CAN USB Converter with Low-speed and single-wire CAN transceivers are available on different device versions. An 8-bit digital I/O port is also included. With its high flexibility at an extremely attractive price, the USB-CANmodul2 is an ideal solution for any CAN-bus based development, service and maintenance tasks in a wide range of applications.
  • Two high-speed CAN interfaces (standard version)
  • Low-speed and single-wire CAN interfaces (available as option)
  • Time-stamped CAN messages
  • Reliable error handling
  • Supports "listen-only" mode for use with analyzing tools
  • 8-bit digital I/O extension port (TTL-level)
  • Low power consumption, USB powered
  • Excellent EMC performance
  • Works with USB2.0 hubs
  • Quick and easy Plug&Play installation
  • Up to 64 CAN-channels can be used simultaneously on the same PC

Software Support:

  • Configuration tool for managing multiple USB-CANmodul2 devices
  • CANinterpreter Light - a simple CAN monitor that allows for reception and transmission of CAN messages
  • Programmers API and demo source for Microsoft Visual C++, Delphi, Visual Basic .NET
  • Device drivers available for Windows 2000/XP/Vista/7

Delivery Contents:

  • Assembled and tested device
  • USB cable (6 ft.)
  • CD-ROM with documentation and device drivers
  • CANinterpreter Light CAN bus monitor
  • High-speed CAN interface according to ISO 11898-2
  • Low-speed CAN interface according to ISO 11898-3 optional
  • Single-wire CAN interface according to ISO 11898-3 optional
  • LIN interface optionally
  • Supported high-speed CAN transceivers: 82C251, SN65HVD23x, TLE6250G, TJA1050
  • Supported low-speed CAN transceivers: TJA1041, TJA1054
  • Supported single-wire CAN transceiver: AU5790
  • Supported LIN transceiver: TJA1020
  • Supported bit rates: 5 to 1000 kbps
  • Supports 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Optional galvanic isolation (no external power supply required, up to 500V)
  • USB full-speed function device, USB 2.0 compliant, transmission type: bulk, 12 Mbps

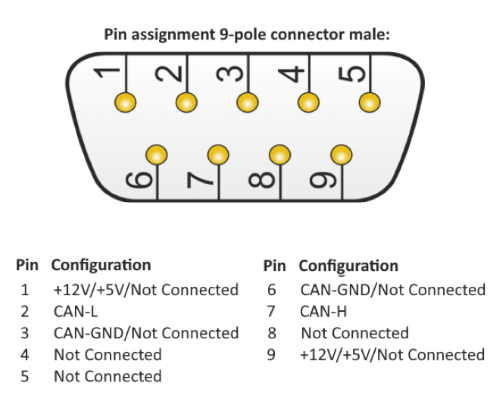

  • CAN-bus interface connector: SUB-D9

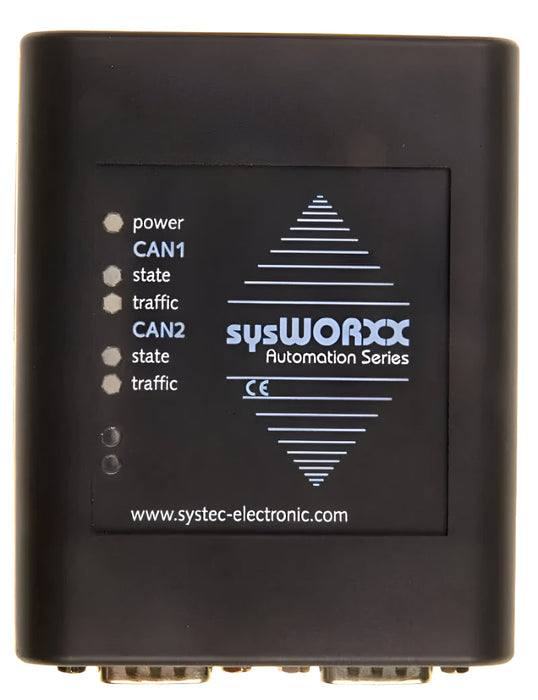

  • LEDs for power supply, CAN status and CAN traffic for each channel
  • CE compliant
  • Power consumption 200mA (typical), USB powered
  • Dimensions: 78 x 68 x 18 (LxWxH in mm)
  • Weight: ax. 80g
  • Operating temperature: -40°C to +85°C
User Manual
USB-CANmodul User Manual
Software Documentation
CANopen API for .NET - Software Documentation
Product Data Sheet
USB CANmodul Series - Product Data Sheet
USB CANmodule Utility Disk
P/N SO-387 - V6.06 - Driver for Windows® 10, 8.1, 8, 7 (32/64 bit), LabView Please note - this package includes driver support for all standard module versions of 3rd (AT91) and 4th (STM32) generation
CANopen API for .NET
P/N SO-1088 - V5.70
Linux SocketCAN Driver for USB-CANmodul series
Release Version V1.0.6
