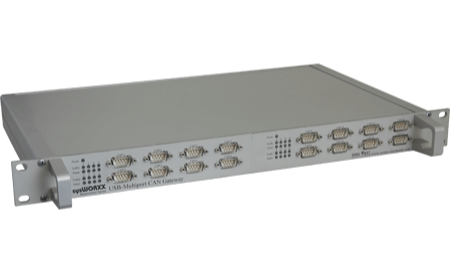

SYS TEC USB-CANmodul16
SYS TEC USB-CANmodul16

SYS TEC USB-CANmodul16

por SYS TEC electronic GmbH
R$ 27.540,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

This product has been removed from inventory and will not be ordered for general stock.

Supports various types of higher-layer CAN-based protocols.

This USB-CANmodul16 bundles 16 high-speed CAN channels in one device, connected to the PC via two high-speed USB2.0 interfaces with up to 480Mbps transfer rate. This USB-CAN Interface allows a most comfortable yet cost efficient way to transfer CAN-bus messages in distributed systems that require a centralized data collection, like used in automotive applications, research institutes or laboratories.

The USB-CANmodul16 supports various types of higher-layer CAN-based protocols including CANopen, SDS, DeviceNet or J1939. Its new 32-bit CPU core ensures reliable communication even at high busload and provides precise message time stamps. The PC driver allows for easy plug&play installation and supports simultaneous operation of up to 64 CAN-channels on the same PC. With its high density of communication channels, the USB-CANmodul16 is ideal suited for servicing and maintenance tasks of CANbus systems.
  • 16 high-speed CAN interfaces (opto-isolated)
  • Two USB2.0 high-speed up to 480 Mbps
  • Time-stamped CAN messages
  • Reliable error handling
  • Supports "listen-only" mode for use with analyzing tools
  • open frame version also available for direct OEM integration
  • Low power consumption, USB powered
  • Excellent EMC performance
  • Works with USB2.0 hubs
  • Quick and easy Plug&Play installation
  • Up to 64 CAN-channels can be used simultaneously on the same PC

Software Support:

  • Configuration tool for managing multiple USB-CANmodul2 devices
  • CANinterpreter Light - a simple CAN monitor that allows for reception and transmission of CAN messages
  • Programmers API and demo source for Microsoft Visual C++, Delphi, Visual Basic .NET
  • Device drivers available for Windows 2000/XP/Vista/7

Delivery Contents:

  • Assembled and tested device
  • USB cable (6 ft.)
  • CD-ROM with documentation and device drivers
  • CANinterpreter Light CAN bus monitor
Property Value
The information herein is subject to change without notice.
Available CAN channels: 16
PC connection: USB V2.0 high-speed up to 480 Mbps
CAN interface: 16 CAN interface, high-speed CAN according ISO 11898-2, optical isolated
CAN transceiver: high-speed CAN: 82C251
CAN specification: CAN 2.0A (11-bit identifier)
CAN 2.0B (29-bit identifier)
CAN connector: SUB-D9
CAN bit rate: 10kbps to 1Mbps
CAN bus features: Remote frames
Listen only mode
Time stamp for received messages
Receiving the transmit echo including time stamp
Automatically transmission of cyclical messages by the module
Software support for Windows® OS: USB-CANmodul Control - Configuration tool for managing multiple USB-CANmodul devices
PCAN View - a simple CAN monitor that allows for reception and transmission of CAN messages
Programmers support for Windows OS: Comprehensive programmers API including demo source for Microsoft Visual C++, LabView, Visual Basic .NET
CANopen API for .NET - based on SYS TEC CANopen Stack and allows for easy implementation of CANopen-enabled applications
Programmers support for Linux OS: SocketCAN based API (Linux Kernel version 2.6.32 or higher)
Device driver: Windows® 7/Vista/XP (32/64 bit), Windows® 2000, Linux, WinCE 5.0, WinCE 6.0
LED indicators: LEDs for power supply, CAN state, CAN traffic
Power supply: 85 ... 264 VAC
Current consumption: self-powered
Operating temperature: 0ºC to +55ºC
Housing: 1HU 19” rack-mounted
Dimensions: 270 (310 with handles) x 440 x 44 (LxWxH, in mm)
User Manual
USB-CANmodul User Manual
Software Manual
CANopen API for .NET - Software Manual
Product Flyer
USB-CANmodul Series - Product Flyer
USB-CANmodul Utility Disk
V6.03 - Driver for Windows Vista / Windows 7 / Windows 8 / LabView
USB-CANmodul driver package for Windows CE
V1.02 - Driver for WinCE 5.0 and WinCE 6.0
CANopen API for .NET
P/N SO-1088 - V5.46 - Release May 2010
Linux SocketCAN Driver for USB-CANmodul series
Release Version V0.8.0
