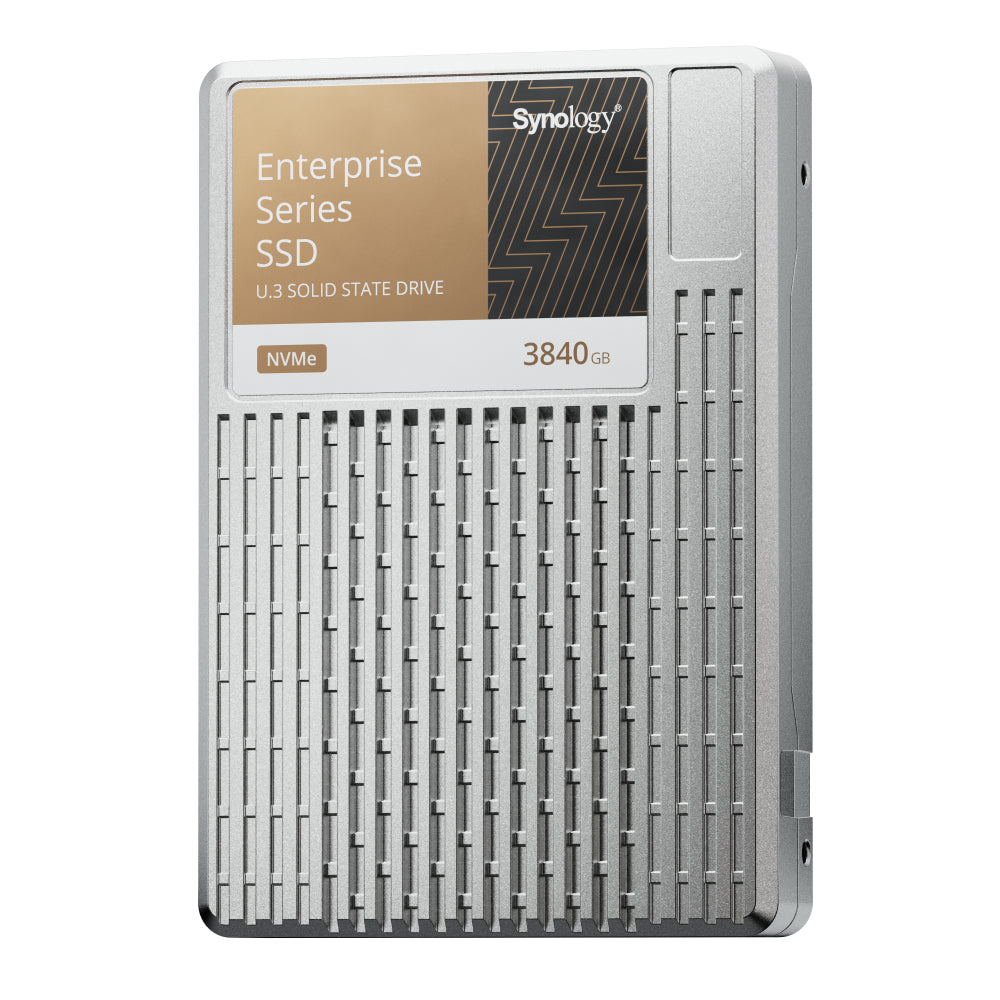

Synology Enterprise Series U.3 NVMe SSD SPU7200D-3840G 3.84TB PCIe 4.0 x4 Solid State Drive

Synology SPU7200D-3840G Enterprise Series U.3 NVMe SSD is a 3.84 TB enterprise solid state drive featuring a 2.5 inch 15 mm form factor and an NVMe PCIe 4.0 x4 interface with support for single port x4 lanes and dual port x2 lanes for high performance storage applications. It delivers sequential read speeds up to 7000 MB/s and sequential write speeds up to 4000 MB/s with random read performance up to 1250000 IOPS, while providing power loss protection, AES 256 encryption with TCG Opal security, and an endurance rating of 7008 TBW with a 2500000 hour MTBF.

Specifications

Model Number:  SPU7200D-3840G

Brand:  Synology

Alt Part Number(s):  SPU7200D-3840G

Product Type:  Solid State Drive

Technical Description

Brand:   Synology

Model:  SPU7200D-3840G

Series:   Enterprise Series U.3 NVMe SSD

Capacity: 3.84 TB

Form Factor: 2.5-inch 15mm

Interface: NVMe PCIe 4.0 x4; Single Port x4 lanes; Dual Port x2 lanes

Sequential Read: 7,000 MB/s

Sequential Write: 4,000 MB/s

Random Read: 1,250,000 IOPS

Random Write: 140,000 IOPS

TBW: 7,008 TB

MTBF: 2,500,000 hours

UBER: Less than 1 sector per 10^18 bits read

Power Loss Protection: Yes

Supply Voltage: 12 V

Active Read (Typ.): 13.4 W

Active Write (Typ.): 14 W

Idle Power Average: 5.19 W

Operating Temperature: 0°C to 70°C (32°F to 158°F)

Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Physical Dimension: 15 mm x 70 mm x 100 mm

Certification: CC; CE; EAC; BSMI; VCCI; KC; RoHS; UKCA

Security: SED (AES-256 Encryption; TCG Opal)
