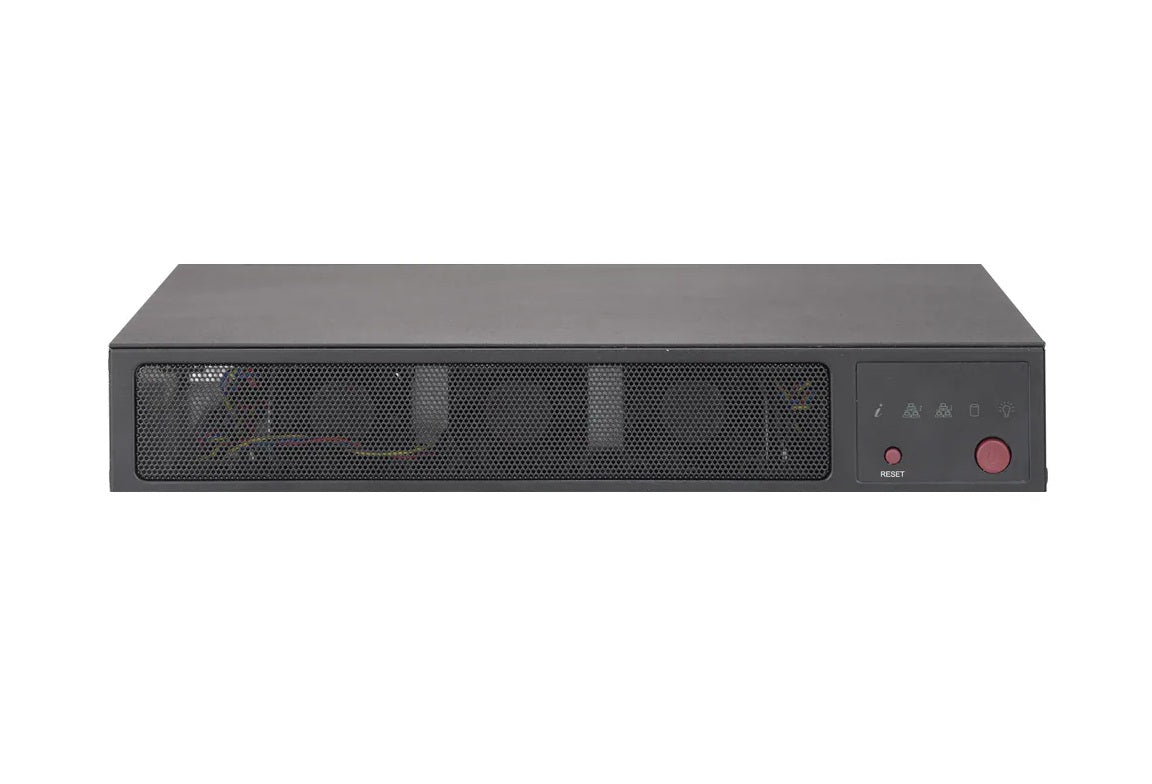

Supermicro SYS-E300-12D-4CN6P 1U Intel Xeon 4 Core Embedded Super Server

The Supermicro SYS-E300-12D-4CN6P is an application-optimized, compact IoT SuperServer designed for edge computing and network security. It is part of the E300 Family of fan-based embedded systems, providing server-grade performance in a mini-1U form factor

Specifications

Model Number:  SYS-E300-12D-4CN6P

Brand:  Supermicro

Alt Part Number(s):  SYS-E300-12D-4CN6P

Product Type:  Server

Technical Description

Brand:  Supermicro

Model Number:  SSG-640P-E1CR36L

Processor Type:  Intel Xeon Processor D-1718T

Processor Core:  Up to 4 Core/8 Thread

Processor Speed:  2.6 - 3.5GHz

Processor Power:  Up to 46W TDP CPUs

Processor Socket:  FCBGA‑2227 (soldered onboard)

Processor Cache: 10MB

Motherboard:  Super X12SDV-4C-SP6F

Chassis Model:  CSE‑E300

Chipset Type:  Intel SoC

Graphics Controller:  ASPEED AST2600 BMC

Networking Connectivity:  2 SFP28 25GbE, 2 RJ45 1GbE with Intel I210-IT, 2 RJ45 1GbE with Intel I350-AM2, 1 RJ45 1GbE Dedicated BMC LAN port

RAID Levels:  0, 1, 5, 10

Number of Drive Bays:  1 internal fixed 2.5" SATA drive bay, 1 M.2 PCIe 3.0 x2 SATA slot (B-key), 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key)

Expansion Slots:  1 PCIe 4.0 x16 LP slot, 1 M.2 PCIe 3.0 x1 slot, 1 M.2 PCIe 3.0 x1 slot (E-key 2230)

Memory Supported:  Up to 1TB

Memory Size:  256GB RDIMM, 128GB UDIMM Capacity

Memory Technology: ECC/non-ECC DDR4

Memory Speed:  2933/2666/2400MHz

Memory Slots:  4 DIMM Slots

Power Supply:  180W 12V Lockable DC Power Supply

System Cooling:  Up to 3x 4-PIN PWM 40x40x28mm Fan(s)

Form Factor:

Height:  1.69"

Width:  10.43"

Depth:  8.89"
